XT-815A

2-Port 10G/2.5G/1G/100BASE-X SFP+ Media Converter

Adicionar à cotação

O Planet XT-815A faz parte dos grupos dos Conversor de Mídia, 10G Media Converter, Standard 10G Media Converter e dispõe dos seguintes recursos:

10Gbps SFP+
jumbo frame
Chassis
Metal Housing

Hardware Specifications

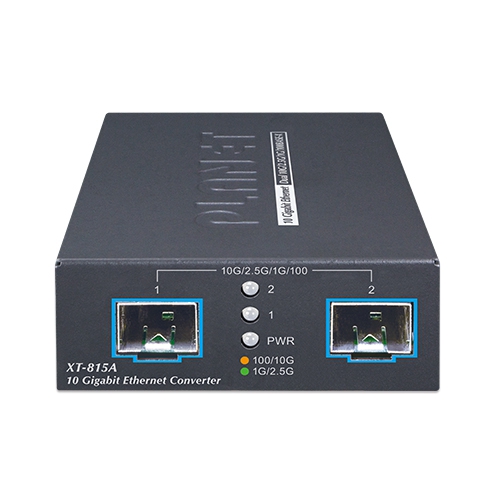

SFP+ Port	Dual 10GBASE-X SFP+ interfaces Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers
Fiber Mode	May vary on SFP+/SFP Module
Fiber Port Type (connector)	SFP, LC type
Fiber Maximum Distance	May vary on SFP Module
Network Cables	May vary on SFP+ and SFP modules
Enclosure	Metal case
Dimensions (W x D x H)	94 x 70.3 x 26.2 mm
Weight	195g

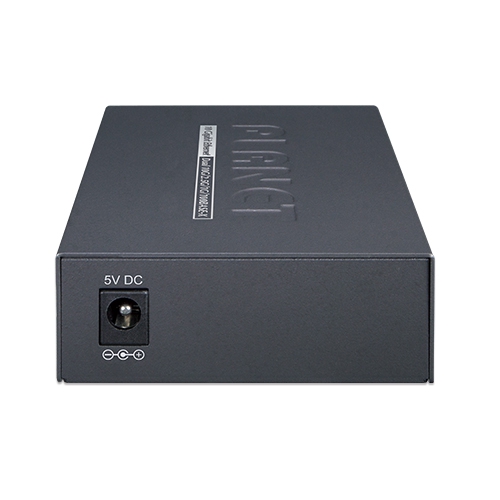

Power Supply	DC 5V, 2A Power Socket, external AC-to-DC adapter
Installation	Wall-mount or DIN-rail installation (optional)
LED	System: PWR (Green) SFP+ Port: 　2.5Gbps/1Gbps LNK/ACT(Green) 　10Gbps /100Mbps LNK/ACT(Amber)
Layer 2 Features
Switch Architecture	Store-and-Forward
Fabric	40Gbps backbone to ensure high-speed data transmission
Forwarding Rate	Non-blocking, full wire-speed forwarding rate
Flow Control	Half duplex: Back pressure eliminates packet loss Full duplex: IEEE 802.3x pause frame support for efficient flow control
Maximum Frame Size	Supports jumbo frames up to 12K
VLAN Support	Transparent 802.1Q VLAN pass-through for seamless integration in tagged network environments
Priority Switching	8-level QoS priority switching for traffic optimization Supports 802.1p priority for efficient traffic management
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Protocols and Standards Compliance	IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service
Environment
Temperature	Operating: 0 ~ 50 degrees C Storage: -10 ~ 70 degrees C
Humidity	5% ~ 95% non-condensing
