WGS-804HP
WGS-804HP
8-Port 10/100/1000T Wall Mounted Gigabit Ethernet Switch with 4-Port PoE+
O Planet WGS-804HP faz parte dos grupos dos LAN Switches, PoE, Ethernet Industrial, Switches Não Gerenciáveis, Switches PoE Não Gerenciáveis, PoE Industrial, Switch Industrial Tipo Slim-Type, PoE Industrial, Gigabit PoE Switch, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, DIN-rail Unmanaged Gigabit PoE Switch, Unmanaged Ethernet PoE Switch, Gigabit PoE Router e dispõe dos seguintes recursos:
- 30W Per-Port
- Full-Ports Gigabit
- 30W PoE
- IP-Code 30
| Hardware Specifications | |
| Network Connector | 8-Port RJ45 for 10/100/1000BASE-T |
| PoE Inject Port | 4-Port with 802.3af / 802.3at PoE injector function (Port-1 to Port-4) |
| Switch Architecture | Store and forward |
| MAC Address Table | 8K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64Bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | Power LED: Power (Green) PoE Power Usage LED: 30W, 60W, 90W, 120W (Green) PoE Port(Port-1 to Port-4): PoE-in-Use (Orange) LNK/ACT (Green) 10/100/1000BASE-TX Port (Port-5 to Port-8): 1000 (Green) LNK/ACT (Green) |
| Connector | ■ Removable 3-pin terminal block for power input - Pin 1/2 for DC Power - Pin 3 for earth ground ■ DC power jack with 2.0mm central pole |
| Power Requirements | 48~56V DC, 3A (max.) |
| Power Consumption | 140 watts / 478BTU |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
| Weight | 510g |

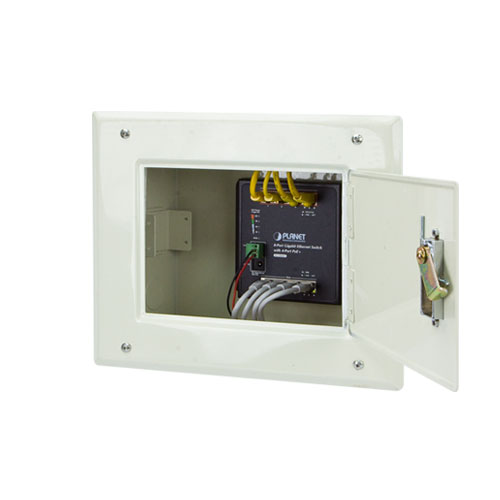

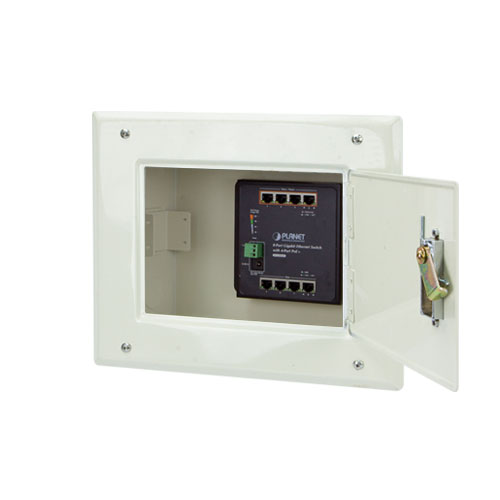

| Installation | Wall mount, magnetic wall mount and DIN-rail kit |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af / 802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | ■ IEEE 802.3af Standard - Per port 48V~56V DC (depending on the power supply), max. 30 watts ■ IEEE 802.3at Standard - Per port 50V~56V DC (depending on the power supply), max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| * PoE Power Budget | 120 watts (depends on power input) |
| Max. Number of Class 2 PD | 4 |
| Max. Number of Class 3 PD | 4 |
| Max. Number of Class 4 PD | 4 |
| Standard Conformance | |
| Standard Compliance | IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Flow Control IEEE 802.3af: Power over Ethernet IEEE 802.3at: High Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Environment | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Accessory | |
| Standard Accessories | ■ User’s manual x1 ■ Magnetic kit x 1 ■ DIN-rail kit x 1 ■ Wall-mounted Kit x 1 ■ Dust cap x 8 ■ 3-pin Terminal Block Connector x 1 |
| * The actual power output may vary on the external power system with maximum 120 watts PoE budget for the switch. | |
