WGS-803

WGS-803

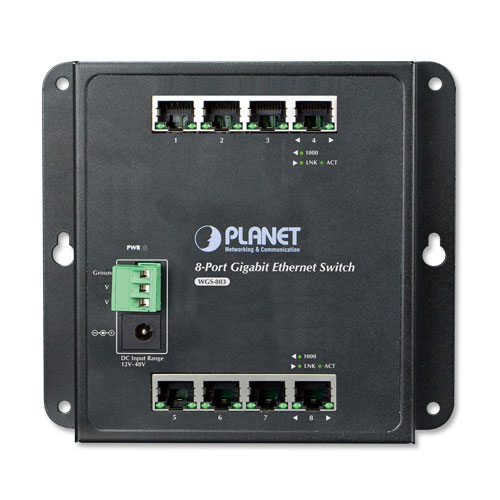

Industrial 8-Port 10/100/1000T Wall-mount Switch (-10~60 degrees C)

O Planet WGS-803 faz parte dos grupos dos LAN Switches, Ethernet Industrial, Switches Não Gerenciáveis, Switch Industrial Não Gerenciável, Switch Industrial Tipo Slim-Type, Unmanaged Ethernet Switch, Gigabit PoE Router e dispõe dos seguintes recursos:

  • jumbo frame
  • 10M 100M 1000M
  • auto mdi x
  • IP-Code 30
Hardware Specifications
Network Connector 8-port RJ45 for 10/100/1000BASE-T
Switch Architecture Store and forward
MAC Address Table 8K MAC address table with auto learning function
Data Buffer 1Mbit
Switch Fabric 16Gbps / non-blocking
Switch Throughput 11.9Mpps@64bytes
Jumbo Frame 9Kbytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
LED Indicators ■ Power LED:
- Power (Green)
■ 10/100/1000BASE-T Port:
- 1000 (Green)
- LNK/ACT (Green)
Connector ■ Removable 3-pin terminal block for power input
- Pin 1/2 for DC Power
- Pin 3 for earth ground
■ DC power jack with 2.0mm central pole
Power Requirements 12~48V DC, 0.5A (max.)
Power Consumption 6 watts / 20BTU
ESD Protection 6KV DC
EFT Protection 6KV DC
Enclosure IP30 metal
Dimensions (W x D x H) 148 x 24.2 x 134 mm
Weight 498g

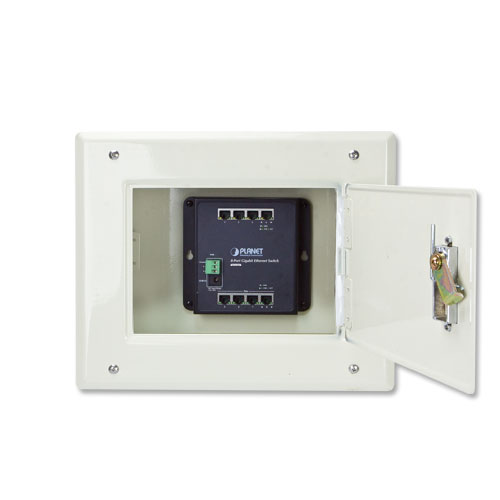

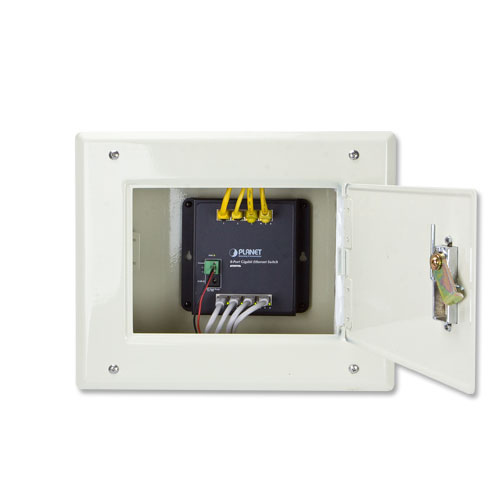

Installation Wall mount, magnetic wall mount and DIN-rail kit
Standard Conformance
Standard Compliance IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3ab: Gigabit Ethernet
IEEE 802.3x: Flow Control
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Environment
Operating Temperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Accessories
Standard Accessories ■ User’s manual x 1
■ Magnetic kit x 1
■ DIN-rail kit x 1
■ Wall-mounted kit x 1
■ Dust cap x 8
■ 3-pin terminal block connector x 1

Datasheet

Date Version Description Download
2015-08-13 1.0 WGS-803

User's Manual

Date Version Description Download
2015-09-10 1.1 Modify: 3.2 DIN-rail Mounting Installation.

EC Declaration

Date Version Description Download
2015-04-28 1.0 EC Declaration
