WDAP-C7200AC

WDAP-C7200AC

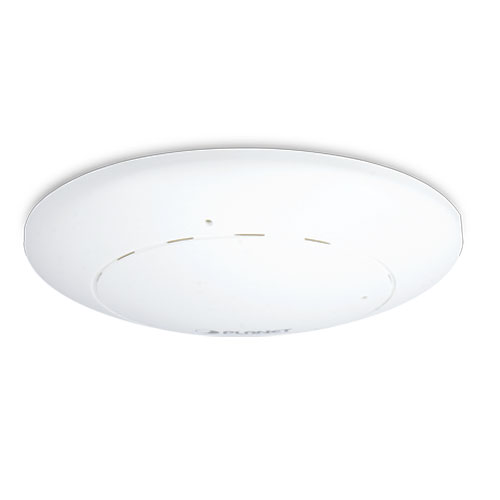

1200Mbps 802.11ac Dual Band Ceiling-mount Wireless Access Point

O Planet WDAP-C7200AC faz parte dos grupos dos Wireless LAN, Repetidor Wireless, Controlador de AP Wireless e dispõe dos seguintes recursos:

  • 1.2Gbps 802.11ac
  • Dual-Band
  • Ceiling-Mount
  • Multi-SSID
  • WiFi-Schedule
  • Range-Extender
Hardware Specifications

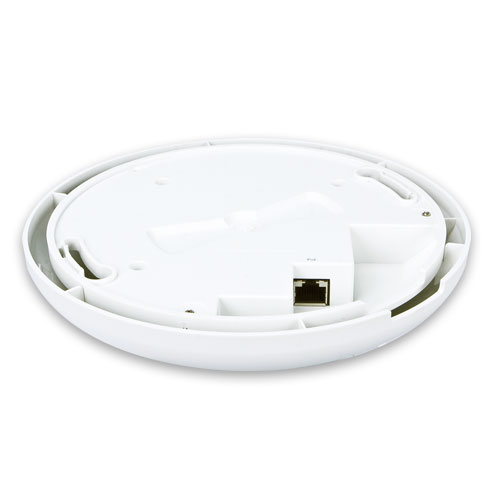

Interfaces LAN 1 x 10/100/1000Base-T RJ45 port
Auto-negotiation and Auto MDI/MDI-X
Antennas Gain 2 x 2.4GHz 2.5dBi PCB antenna
2 x 5GHz 4dBi PCB antenna
Reset Button Reset button on the top cover
Press over 7 seconds to reset the device to factory default
LED Indicators PWR
Allow LED to turn off via software control
Material Plastic
Dimensions (Φ x H) 194 x 49 mm
Weight 300 ±5g
Power Requirements 802.3at PoE, 48-56V DC input
Power Consumption 20W (max.)
Mounting Ceiling Mount
Wireless Interface Specifications
Standard IEEE 802.11ac (Draft 2.0) 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Antenna Structure 802.11ac: 2T2R MU-MIMO
802.11n: 2T2R MIMO
Modulation DSSS
Data Modulation 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)
Band Mode 2.4GHz / 5GHz concurrent mode
Frequency Range 2.4GHz: America/ FCC: 2.412~2.462GHz
     Europe/ ETSI: 2.412~2.484GHz
5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz
    Europe/ ETSI: 5.180~5.240GHz
Operating Channels 2.4GHz: America/ FCC: 1~11
     Europe/ ETSI: 1~13
5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
    Europe/ ETSI: 36, 40, 44, 48
*5GHz channel list will vary in different countries according to their regulations.
Channel Width 802.11ac: 20/40/80MHz
802.11n: 20/40MHz
Data Transmission Rates 802.11ac (VHT20, Nss2-MCS8): Up to 173.3Mbps
802.11ac (VHT40, Nss2-MCS9): Up to 400Mbps
802.11ac (VHT80, Nss2-MCS9): Up to 867Mbps
802.11n (HT40): 270/243/216/162/108/81/54/27Mbps
         135/121.5/108/81/54/40.5/27/13.5Mbps (dynamic)
802.11n (HT20): 130/117/104/78/52/39/26/13Mbps
         65/58.5/52/39/26/19.5/13/6.5Mbps (dynamic)
802.11g: 54/48/36/24/18/12/9/6Mbps (dynamic)
802.11b: 11/5.5/2/1Mbps (dynamic)
Transmission Distance 802.11ac (draft): up to 30m
802.11n: up to 70m
802.11g: up to 30m
The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
Max. RF Power 5GHz:
   802.11ac (VHT20): 15.5dBm
   802.11ac (VHT40): 15.5dBm
   802.11ac (VHT80): 15.5dBm
   802.11n (HT20): 15.5dBm
   802.11n (HT40): 15.5dBm
   802.11a: 15.5dBm
2.4GHz:
   802.11n: 17 ±2.5dBm
   802.11b/g: 20dBm
Receive Sensitivity 5GHz:
   802.11ac (VHT20): -91dBm @ Nss1-MCS0, -64dBm @ Nss2-MCS8
   802.11ac (VHT40): -89dBm @ Nss1-MCS0, -59dBm @ Nss2-MCS9
   802.11ac (VHT80): -86dBm @ Nss1-MCS0, -56dBm @ Nss2-MCS9
   802.11n (HT20): -92dBm @ MCS0, -71dBm @ MCS7
   802.11n (HT40): -89dBm @ MCS0, -66dBm @ MCS15
   802.11a: -93 @ 6Mbps, -75dBm @ 54Mbps
2.4GHz:
   802.11n 20MHz (MCS7): -69dBm @10% PER
   802.11n 40MHz (MCS15): -66dBm @10% PER
   802.11g (54Mbps): -74dBm @10% PER
   802.11b (11Mbps): -88dBm @10% PER
Software Features
Wireless Mode ■ Universal Repeater (AP+Client)
■ Repeater (WDS+AP)
■ AP (Access Point)
■ WDS PTP (Point to Point)
■ WDS PTMP (Point to Multipoint)
■ Client
Encryption Security ■ WEP (64/128-bit) encryption security
■ WPA / WPA2 (TKIP/AES)
■ WPA-PSK / WPA2-PSK (TKIP/AES)
Wireless Security Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup)
Enable/ Disable SSID Broadcast
Wireless Advanced WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
Multiple SSID: up to 5 at 2.4GHz and 5GHz, respectively
Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other
IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming
Provides Wireless Statistics
Max. Clients Wire: 253
2.4GHz Wireless: 32
5GHz Wireless: 32
LAN Built-in DHCP server supporting static IP address distributing
Supports UPnP
Supports 802.1d Spanning Tree
System Management Web-based (HTTP) management interface
SNTP time synchronize
Easy firmware upgrade
Supports Scheduling Reboot
Supports Smart Discovery Utility
Standards Conformance
IEEE Standards IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps)
IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
Other Protocols and Standards CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP
Environment & Certification
Temperature Operating: 0 ~ 50 degrees C
Storage: -40 ~ 70 degrees C
Humidity Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)
Regulatory FCC Part 15B & 15C, IC, RoHS

Datasheet

Date Version Description Download
2017-12-22 1.0 WDAP-C7200AC for Egypt.
2017-03-31 1.0 WDAP-C7200AC

Firmware

Date Version Description Download
2017-09-29 1.3465cb170926 Supported AP Controller versions:
- WAPC-1232HP: V1.342c170922
- WAPC-2864HP: V1.342c170922
2017-04-14 1.3465cb170406 Compatible with WAPC series controller and Smart AP Control.
- WAPC-2864HP: V1.342c160804 or later
- WAPC-1232HP: V1.342c160808 or later
- Smart AP Control: V1.0 or later
2016-08-11 1.3465cb160803 Supported AP Controller version:
- WAPC-2864HP: V1.342c160804
- WAPC-1232HP: V1.342c160808
2016-02-05 1.3465cb151224 Supported AP Controller V1.342c160114.
2015-12-11 1.3465cb151125 Supports AP controller.
[Warning] Please contact PLANET to upgrade the device with firmware v20140530, incompatible version will caused the device damaged.

Quick Guide

Date Version Description Download
2014-04-25 1.0 Initial release.

User's Manual

Date Version Description Download
2015-09-18 1.1 Add WDAP-W7200AC.
2014-05-12 1.0 Initial release.

EC Declaration

Date Version Description Download
2014-11-24 1.0 EC Declaration

GPL Code

Date Version Description Download
2014-06-17 1.0 GPL Code
