WDAP-C1750
WDAP-C1750

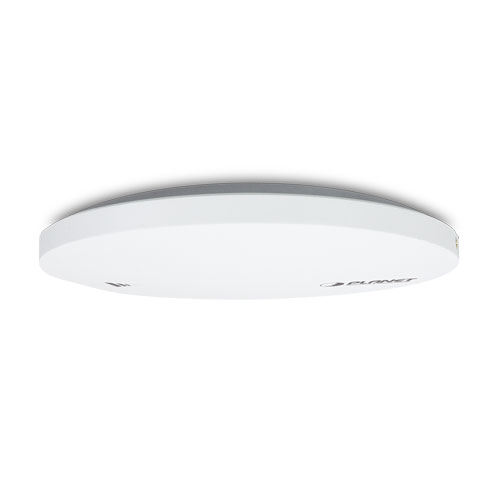

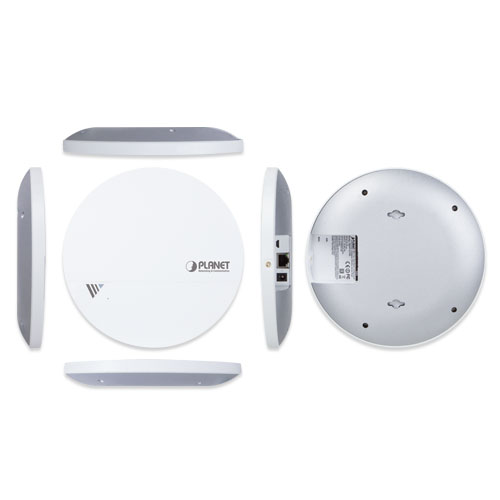

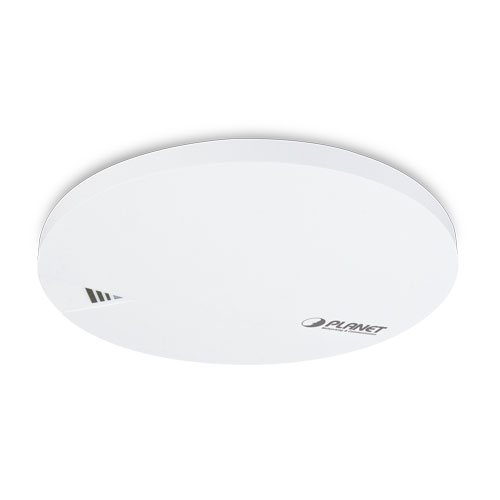

1750Mbps 802.11ac Dual Band Ceiling-mount Enterprise Wireless Access Point
O Planet WDAP-C1750 faz parte dos grupos dos Wireless LAN, Repetidor Wireless e dispõe dos seguintes recursos:
- 802.11ac 1.75Gbps
- Ceiling-Mount
- QVLAN
- Schedule-Reboot
- RADIUS
- NMS
![[item_en]](images/file_6131_box_WDAP-C1750_02.jpg)
![[item_en]](images/file_7917_box_WDAP-C1750_03.jpg)
![[item_en]](images/file_7300_box_WDAP-C1750_01.jpg)
| Hardware Specifications | |
| Interfaces | LAN: 1 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X USB: 1 x micro USB 2.0 port |
| Antennas | Gain: Internal PIFA antenna (3 x 2.4GHz 4dBi, 3 x 5GHz 5dBi) |
| Button | Reset button |
| LED Indicators | PWR/Diag LED Allow LED to turn off via software control |
| Other | Internal buzzer |
| Material | Plastic front panel, metal rear panel |
| Dimensions (Φ x H) | 208 x 31.5 mm |
| Weight | 590g |
| Power Requirements | PoE: 802.3at PoE-PD Class 4 12V DC, 2A (not included in the standard package) |
| Power Consumption (Max.) | 15W, 19.2W (with USB) |
| Mounting | Ceiling mount |
| Wireless Interface Specifications | |
| Standard | IEEE 802.11ac 5GHz IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz |
| Antenna Structure | 802.11ac: 3T3R MU-MIMO 802.11n: 3T3R MIMO |
| Modulation | DSSS |
| Data Modulation | 802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) 802.11a/g/n: OFDM (BPSK/QPSK/16QAM/64QAM) 802.11b: DSSS (DBPSK/DQPSK/CCK) |
| Band Mode | 2.4G/5G concurrent mode |
| Frequency Range | ■ 2.4GHz: America -- FCC: 2.412~2.462GHz Europe -- ETSI: 2.412~2.484GHz ■ 5GHz: America -- FCC: 5.180~5.240GHz, 5.725~5.850GHz Europe -- ETSI: 5.180~5.240GHz |
| Operating Channels | ■ 2.4GHz America -- FCC: 1~11 Europe -- ETSI: 1~13 ■ 5GHz America -- FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 Europe -- ETSI: 36, 40, 44, 48 5GHz channel list will vary in different countries according to their regulations. |
| Channel Width | 802.11ac: 20/40/80MHz 802.11n: 20/40MHz |
| Transmission Speed | 450 + 1300Mbps (2.4GHz + 5GHz) |
| Transmission Distance | 802.11ac: up to 35m 802.11n: up to 70m 802.11a/b/g: up to 30m The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
| Max. RF Power (limited by local regulation) | ■ 5GHz: 802.11ac (VHT20/40/80): 27.5dBm @MCS0 802.11ac (VHT20/40/80): 22.5dBm @MCS7 802.11ac (VHT20/40/80): 19.5dBm @MCS9 802.11n (HT20/40): 27.5dBm @MCS0/MCS8 802.11n (HT20/40): 22.5dBm @MCS7/MCS15 802.11a: 26.5dBm @6Mbps 22.5dBm @54Mbps ■ 2.4GHz: 802.11n (HT20/40): 27.5dBm @MCS0 802.11n (HT20/40): 22.5dBm @MCS7 802.11g: 27.5dBm @6Mbps 802.11g: 23.5dBm @54Mbps 802.11b: 27.5dBm @1Mbps |
| Receive Sensitivity | ■ 5GHz: 802.11ac (VHT20/40/80): -84dBm @MCS0 802.11ac (VHT20/40/80): -58dBm @MCS9 802.11n (HT20): -90dBm @MCS0, -70dBm @MCS7 802.11n (HT40): -87dBm @MCS0, -68dBm @MCS7 802.11a: -90dBm @6Mbps 802.11a: -71dBm @54Mbps ■ 2.4GHz: 802.11n (HT20/40): -83dBm @MCS0 802.11n (HT20/40): -66dBm @MCS7 802.11g: -86dBm @54Mbps 802.11g: -72dBm @54Mbps 802.11b: -93dBm @1Mbps 802.11b: -85dBm @11Mbps |
| Software Features | |
| Operation Mode (NMS) | ■ AP Controller ■ Managed AP |
| Wireless Mode | ■ AP (Access Point) ■ WDS PTP (Point to Point) ■ Repeater ■ WDS PTMP (Point to Multipoint) |
| Encryption Security | ■ WEP (64/128-bit) encryption security ■ WPA/WPA2 (TKIP/AES) ■ WPA-PSK/WPA2-PSK (TKIP/AES) ■ 802.1x authentication |
| Wireless Security | ■ Wireless MAC address filtering up to 256 entries ■ Wireless Client Isolation: STA separator, SSID separator ■ Supports WPS (Wi-Fi Protected Setup) ■ Enable/Disable SSID broadcast |
| Wireless Advanced | ■ 6-level adjustable Tx power (100%, 90%, 75%, 50%, 25%, 10%) ■ Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz ■ Tagged VLAN per SSID, tagged VLAN over WDS ■ Auto-channel selection: enables an AP to determine the best channel available ■ Rogue AP detection ■ Provides wireless statistics for system administrator monitoring |
| Max. Clients | Wired: 253 2.4GHz Wireless: 50 5GHz Wireless: 50 |
| Max. WDS Peers | Up to 4 at 2.4GHz and 4 at 5GHz |
| QoS | ■ IEEE 802.11e WMM (Wi-Fi Multimedia) ■ Station Idle Timeout: Enables and configures it to prevent inactivated clients from occupying the connection. ■ AP Load Balancing: To balance the distribution of wireless client connections across multiple APs. ■ Supports multicast rate adaptation mechanism to guarantee the wireless bandwidth and service quality. |
| LAN | Static IP, DHCP Client, DHCP Server Supports 802.1d Spanning Tree (RTSP) Supports 802.1Q tagged/untagged VLAN (VID: 1-4095) |
| System Management | ■ NMS firmware-based management interface: - Supports up to 5 managed APs with no additional wireless controller - Features dashboard and zone plan with heat map, AP cluster management, AP bulk firmware upgrade, AP/client status monitoring ■ Web-based (HTTP/HTTPS/SSH/CLI) management interface ■ SNMP v1, v2c, v3 management interface ■ Built-in RADIUS server with EAP authentication (MS-PEAP), user account up to 256 ■ SNTP synchronization ■ Easy firmware upgrade ■ Supports self-healing (schedule reboot) mechanism for reliable connection ■ Supports PLANET Smart Discovery Utility ■ Supports system log and syslog server |
| Standards Conformance | |
| IEEE Standards | IEEE 802.11ac (wave 1, 3T3R, up to 1300Mbps) IEEE 802.11n (3T3R, up to 450Mbps) IEEE 802.11g IEEE 802.11a IEEE 802.11b IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet |
| Other Protocols and Standards | CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP |
| Environment & Certification | |
| Temperature | Operating: 0 ~ 50 degrees C Storage: -20 ~ 60 degrees C |
| Humidity | Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing) |
| Regulatory | FCC, CE |
