WDAP-3000AX

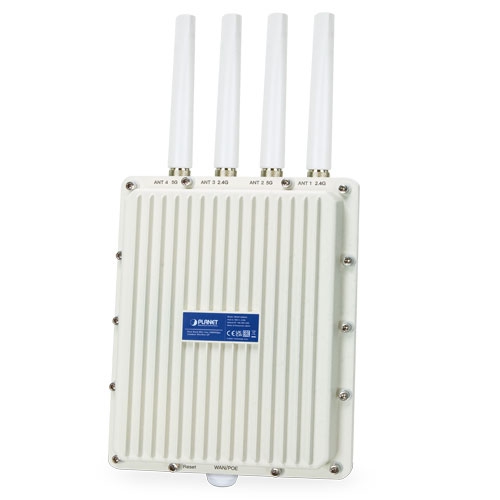

Dual Band 802.11ax 3000Mbps Outdoor Wireless AP (IP67, 802.3at PoE+, 4 x N-type connector)

Adicionar à cotação

O Planet WDAP-3000AX faz parte dos grupos dos Wireless LAN, Wireless Outdoor, Controlador de AP Wireless, Dual-band Outdoor Wireless, Wireless Management Software, Outdoor Managed AP e dispõe dos seguintes recursos:

    [item_en][item_en][item_en][item_en][item_en][item_en]
    Hardware Specifications
    Interfaces PoE WAN/LAN: 1 x 10/100/1000BASE-T,
    auto-MDI/MDIX, 802.3at PoE In

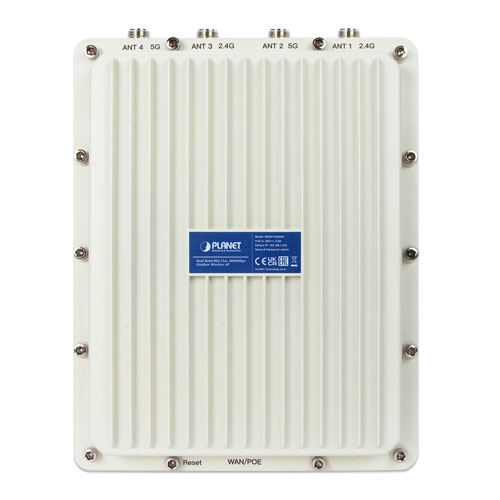

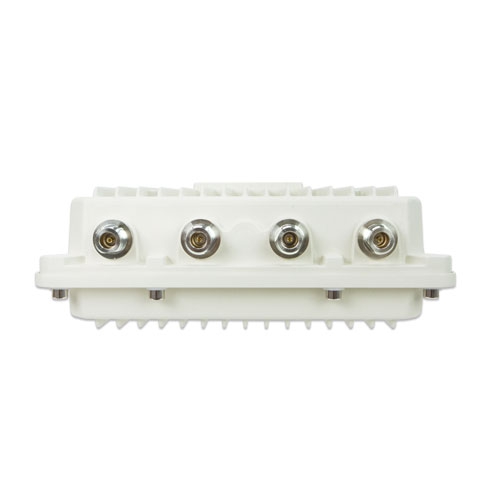

    Antennas Built-in four N-type connectors

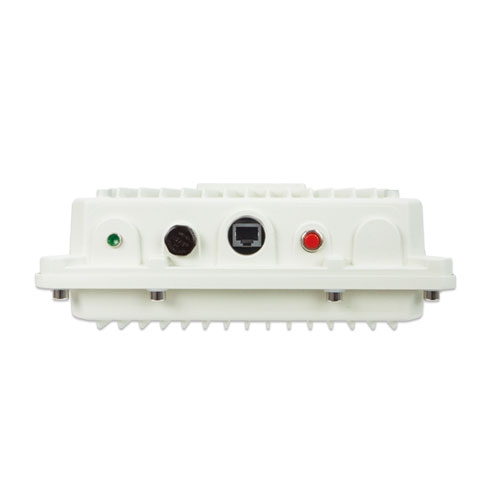

    Reset Button Reset button (Press over 5 seconds to reset the device to factory default)
    LED Indicators Power
    Dimensions (W x D x H) 231 x 80 x 295 mm
    Weight 2527 g
    Material Aluminum
    Power Requirements 48V 0.5A, IEEE 802.3at PoE+
    Power Consumption < 15W

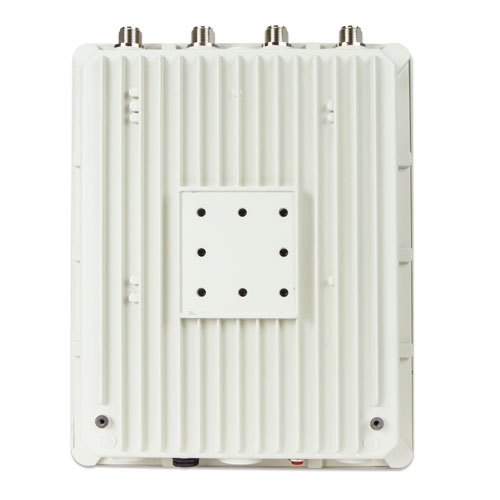

    Mounting Mast mounting
    IP Level IP67
    ESD Protection ±8kV air gap discharge
    ±4kV contact discharge
    Surge Protection ±20kV
    Wireless Interface Specifications
    Standard IEEE 802.11ax
    IEEE 802.11ac
    IEEE 802.11n
    IEEE 802.11a
    IEEE 802.11b
    IEEE 802.11g
    IEEE 802.11i
    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x flow control
    IEEE 802.11k, 802.11v, and 802.11r
    Media Access Control CSMA/CA
    Data Modulation 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM)
    802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
    802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
    802.11b: DSSS (DBPSK / DQPSK / CCK)
    Band Mode 2.4GHz / 5GHz concurrent mode
    Frequency Range 2.4GHz:
    FCC: 2.412~2.462GHz
    ETSI: 2.412~2.472GHz
    5GHz:
    FCC: 5.180~5.240GHz, 5.745~5.825GHz
    ETSI: 5.180~5.700GHz
    Operating Channels ETSI:
    2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels)
    5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,256,132, 136, 140 (19 Channels)
    FCC:
    2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 Channels)
    5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24Channels)
    5GHz channel list may vary in different countries according to their regulations.
    Max. Transmit Power (dBm) FCC: up to 22 ± 1dBm
    ETSI: < 19dBm (EIRP)
    Network ModeData RateReceive Sensitivity (dBm)
    2.4G Power
    802.11b1Mbps
    11Mbps    		22±2
    22±2
    802.11g6Mbps
    54Mbps    		21±2
    19±2
    802.11n HT20MCS0
    MCS7    		20±2
    18±2
    802.11n HT40MCS0
    MCS7    		20±2
    18±2
    802.11ax HT20MCS0
    MCS11    		20±2
    16±2
    802.11ax HT40MCS0
    MCS11    		20±2
    16±2
    5G Power
    802.11a6Mbps
    54Mbps    		21±2
    19±2
    802.11n HT20MCS0
    MCS7    		20±2
    18±2
    802.11n HT40MCS0
    MCS7    		20±2
    18±2
    802.11ac HT20MCS0
    MCS7    		20±2
    17±2
    802.11ac HT40MCS0
    MCS7    		20±2
    17±2
    802.11ac HT80MCS0
    MCS9    		19±2
    17±2
    802.11ax HT20MCS0
    MCS11    		20±2
    16±2
    802.11ax HT40MCS0
    MCS11    		20±2
    16±2
    802.11ax HT80MCS0
    MCS11    		19±2
    16±2
    802.11ax HT160MCS0
    MCS11    		18±2
    14±2
    Receive Sensitivity
    Network ModeData RateReceive Sensitivity (dBm)
    2.4GHz
    802.11b1Mbps
    11Mbps    		-96
    -87
    802.11g6Mbps
    54Mbps    		-93
    -75
    802.11n HT20 MCS0
    MCS7    		-92
    -73
    802.11n HT40 MCS0
    MCS7    		 -88
    -63
    802.11ax HT20 MCS0
    MCS11    		 -92
    -64
    802.11ax HT40 MCS0
    MCS11    		-88
    -58
    5GHz
    802.11a6Mbps
    54Mbps    		-92
    -74
    802.11n HT20 MCS0
    MCS7    		-90
    -73
    802.11n HT40MCS0
    MCS7    		-87
    -70
    802.11ac HT20MCS0
    MCS7    		 -91
    -67
    802.11ac HT40MCS0
    MCS7    		 -88
    -63
    802.11ac HT80 MCS0
    MCS9    		-84
    -60
    802.11ax HT20 MCS0
    MCS11    		-91
    -62
    802.11ax HT40 MCS0
    MCS11    		-89
    -59
    802.11ax HT80MCS0
    MCS11    		 -86
    -56
    802.11ax HT160MCS0
    MCS11    		 -83
    -53
    Software Features
    LAN Static IP / Dynamic IP
    WAN Static IP
    Dynamic IP
    PPPoE/PPTP/L2TP
    Wireless Mode Access Point
    Gateway
    Repeater
    WISP
    Mesh
    Channel Width 20MHz, 40MHz, 80MHz, 160MHz
    Encryption Security WPA3 Personal, WPA2/WPA3 Personal, WPA2 Personal (AES), WPA2 Personal (TKIP),WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES),
    WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise, WPA/WPA2 Enterprise
    Wireless Security Enable/Disable SSID Broadcast
    Wireless Max. 32 MAC address filtering
    User Isolation
    Max. SSIDs 8 (4 per radio)
    Max. Clients 256 (200 is suggested, depending on usage)
    Wireless QoS Supports Wi-Fi Multimedia (WMM)
    Wireless Advanced Mesh
    Auto Channel Selection
    5-level Transmit Power Control:
    Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%)
    Client Limit Control, Coverage Threshold
    Wi-Fi channel analysis chart
    Seamless Roaming
    Beamforming
    BSS Coloring
    Status Monitoring Device status, wireless client List
    PLANET Smart Discovery
    DHCP client table
    System Log supports remote syslog server
    VLAN IEEE 802.1Q VLAN (VID: 1~4094)
    SSID-to-VLAN mapping to up to 4 SSIDs
    Self-healing Supports auto reboot settings per day/hour
    Management Remote management through PLANET DDNS/ Easy DDNS
    Configuration backup and restore
    Supports UPnP
    Supports IGMP Proxy
    Supports PPTP/L2TP/IPSec VPN Pass-through
    Supports Captive Portal, RADIUS Server/Client
    Central Management Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudViewer, PLANET CloudViewerPro
    Environment & Certification
    Temperature Operating: -40~ 70 degrees C
    Storage: -40 ~ 70 degrees C
    Humidity Operating: 10 ~ 90% (non-condensing)
    Storage: 5 ~ 95% (non-condensing)
    Regulatory CE, RoHS
