VR-300W5
VR-300W5

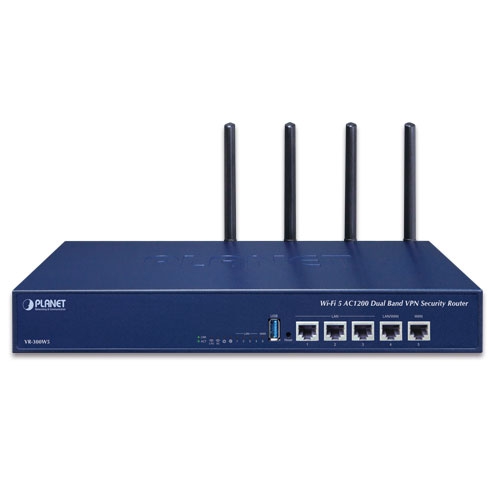

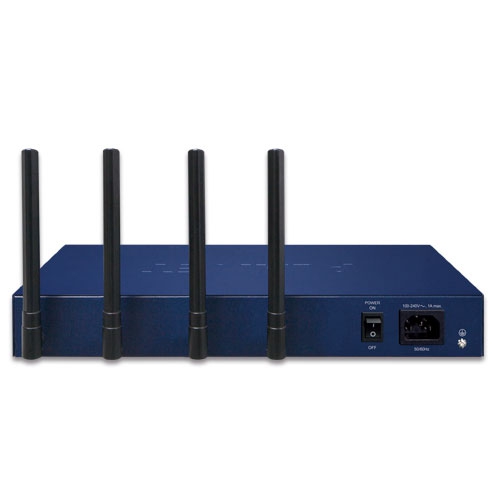

Wi-Fi 5 AC1200 Dual Band VPN Security Router
O Planet VR-300W5 faz parte dos grupos dos Wireless LAN, Segurança de Rede, Roteadores Wireless, Controlador de AP Wireless, Wireless AC, Wireless Management Software, VPN Firewall, Wireless VPN Router, Router AP Controller e dispõe dos seguintes recursos:
- Dual WAN
- 802.11ac
- AP Control
- RADIUS
![[item_en]](images/box_VR-300W5_01.jpg)
![[item_en]](images/box_VR-300W5_02.jpg)
| Hardware Specifications | |
|---|---|
| Ethernet | 5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) 1 WAN port (Port 5) |
| USB Port | 1 USB 3.0 port for system configuration backup and restore |
| Reset Button | Reset to factory default |
| Thermal Fan | Fanless |
| LED Indicators | PWR (Green) Internet (Green) LAN/WAN (Green) 2.4G (Green) 5G (Green) PoE-in-Use LED (Amber) |
| Installation | Desktop installation or rack mounting |
| Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
| Power Consumption / Dissipation | Max. 24W/81.9 BTU |
| Weight | 1.7kg |
| Dimensions (W x D x H) | 330 x 155 x 43.5 mm, 1U height |
| Enclosure | Metal |
| Wireless | |
| Standard | IEEE 802.11 b/g/n 2.4 GHz IEEE 802.11 a/n/ac 5 GHz |
| Band Mode | 2.4G / 5G concurrent mode |
| Frequency Range | 2.4GHz America FCC: 2.412~2.462GHz Europe ETSI: 2.412~2.484GHz 5GHz America FCC: 5.180~5.240GHz, 5.725~5.850GHz Europe ETSI: 5.180~5.240GHz |
| Operating Channels | 2.4GHz America FCC: 1~11 Europe ETSI: 1~13 5GHz America FCC: Non-DFS: 36, 40, 44, 48, 149,153,157,161,165 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 Europe ETSI: Non-DFS: 36, 40, 44, 48 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 5GHz channel list will vary in different countries according to their regulations. |
| Channel Width | 802.11ac: 20/40/80MHz 802.11n: 20/40MHz |
| Data Transmission Rates | Transmit: 300 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz Receive: 300 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz *The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
| Transmission Power | <=20dBm (2.4G frequency band: 2.400 – 2.4835 GHz) <=23dBm (5G frequency band: 5.150 – 5.350 GHz) |
| Encryption Security | WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES) 802.1x Authenticator |
| Wireless Advanced | Wi-Fi Multimedia (WMM) Auto channel selection Wireless output power management MAC address filtering |
| Security Service | |
| Firewall Security | Cybersecurity Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323, TFTP |
| NAT | Port forwarding DMZ Host UPnP |
| Content Filtering | MAC filtering IP filtering Web filtering |
| Bandwidth Management | Outbound load balancing Failover for dual-WAN QoS (Quality of Service) |
| Networking | |
| Operation Mode | Routing mode |
| Routing Protocol | Static Route, Dynamic Route (RIP), OSPF |
| VLAN | 802.1q Tag-based, Port-based, Multi-VLAN |
| Multicast | IGMP Proxy |
| NAT Throughput | Max. 900Mbps |
| Outbound Load Balancing | Supported algorithms: Weight |
| Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3, |
| Key Features | HA (High Availability) Captive Portal RADIUS Server/Client AP Control |
| VPN | |
| VPN Function | IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) |
| VPN Tunnels | Max. 60 |
| VPN Throughput | Max. 60Mbps |
| Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management | |
| Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
| System Log | System Event Log |
| Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Environment Specifications | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
