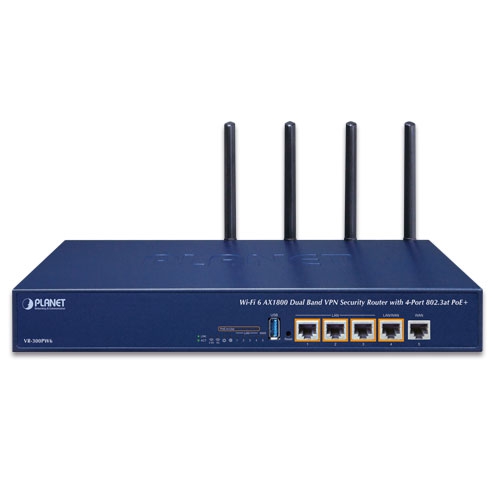

O Planet VR-300PW6A faz parte dos grupos dos Wireless LAN, Segurança de Rede, Roteadores Wireless, Controlador de AP Wireless, Wireless AC, Wireless Management Software, VPN Firewall, PoE Gateway, Wireless VPN Router, Router AP Controller, Gigabit PoE Gateway e dispõe dos seguintes recursos:
Hardware Specifications | |
---|---|
Ethernet | 5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) 1 WAN port (Port 5) |
Antennas | 4 external 5dBi, 2.4GHz/5GHz dual-band SMA antennas |
USB Port | 1 USB 3.0 port for system configuration backup and restoration |
Reset Button | Reset to factory default |
Thermal Fan | 1 |
LED Indicators | PWR (Green) Internet (Green) LAN/WAN (Green) 2.4G (Green) 5G (Green) PoE-in-Use LED (Amber) |
Installation | Desktop installation or rack mounting |
Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
Power Consumption / Dissipation | Max.TBD watts/ BTU |
Weight | 1.7kg |
Dimensions (WxDxH) | 330 x 155 x 43.5 mm, 1U height |
Enclosure | Metal |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / 802.3at PoE+ PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 52V DC, 36 watts (max.) |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Budget | 120 watts (max.) @ 25 degrees C 100 watts (max.) @ 50 degrees C |
Max. Number of Class 4 PDs | 4 |
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring |
Wireless | |
Standard | IEEE 802.11a/n/ac/ax 5GHz IEEE 802.11g/b/n/ax 2.4GHz |
Band Mode | 2.4G / 5G selectable mode |
Frequency Range | 2.4GHz America FCC: 2.412~2.462GHz Europe ETSI: 2.412GHz~2.472GHz 5GHz America FCC: 5.180~5.240GHz, 5.745~5.825GHz Europe ETSI: 5.180~5.700GHz |
Operating Channels | 2.4GHz America FCC: 1~11 Europe ETSI: 1~13 5GHz America FCC: Non-DFS: 36, 40, 44, 48, 149,153,157,161,165 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 Europe ETSI: Non-DFS: 36, 40, 44, 48 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 5GHz channel list will vary in different countries according to their regulations. |
Channel Width | 20MHz, 40MHz, 80MHz, 80+80 MHz |
Data Transmission Rates | Transmit: 600 Mbps* for 2.4 GHz or 2400 Mbps* for 5 GHz Receive: 600 Mbps* for 2.4 GHz or 2400 Mbps* for 5 GHz *The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
Transmission Power | 11b: 23dbm+/- 1.5dbm @11Mbps 11g: 20dbm+/- 1.5dbm @54Mbps 11g/n: 20dBm +/- 1.5dbm @MCS7, HT20 17dBm@MCS7,HT40 11a: 19.5dBm +/- 1.5dbm @54Mbps 11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20 17dBm@MCS7, HT40 11ac HT20: 20+/-1.5dBm @MCS8 11ac HT40: 17+/-1.5dBm @MCS9 11ac HT80: 14.5+/-1.5dBm @MCS9 11ax HT20: 20+/-1.5dBm @MCS9 11ax HT40: 17 +/- 1.5dBm @MCS9 11ax HT80: 14.5 +/- 1.5dBm @MCS11 |
Encryption Security | WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES) / WPA3-PSK (TKIP/AES) 802.1x Authenticator |
Wireless Advanced | Wi-Fi Multimedia (WMM) Auto channel selection Wireless output power management MAC address filtering |
Security Service | |
Firewall Security | Cybersecurity Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack |
ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323, TFTP |
NAT | Port forwarding DMZ Host UPnP |
Content Filtering | MAC filtering IP filtering Web filtering |
Bandwidth Management | Outbound load balancing Failover for dual-WAN QoS (Quality of Service) |
VPN | |
VPN Function | |
VPN Tunnels | |
VPN Throughput | |
Encryption Methods | |
Authentication Methods | |
Networking | |
Operation Mode | |
Routing Protocol | |
VLAN | |
Multicast | |
NAT Throughput | |
Outbound Load Balancing | |
Protocol | |
Key Features | |
Management | |
Basic Management Interfaces | |
Secure Management Interfaces | |
System Log | |
Others | |
Standards Conformance | |
Regulatory Compliance | |
Environment Specifications | |
Operating | |
Storage |
