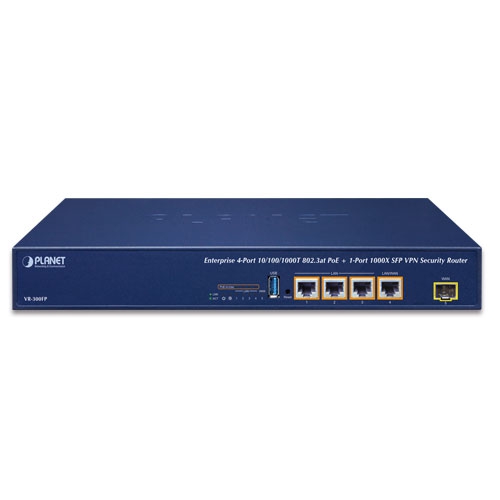

O Planet VR-300FP faz parte dos grupos dos PoE, PoE, Wireless LAN, Wireless LAN, Banda Larga, Segurança de Rede, Segurança de Rede, Controlador de AP Wireless, Controlador de AP Wireless, Fiber Ethernet, VPN Firewall, VPN Firewall, VPN Router, PoE Gateway, PoE Gateway, Router AP Controller, Gigabit PoE Gateway e dispõe dos seguintes recursos:
Hardware Specifications | |
---|---|
Ethernet | 4 10/100/1000BASE-T RJ45 Ethernet ports including 1 1000BASE-X SFP slot 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) 1 WAN port (Port 5) |
USB Port | 1 USB 3.0 port for system configuration backup and restore |
Reset Button | Reset to factory default |
Thermal Fan | 1 |
LED Indicators | PWR (Green) Internet (Green) LAN/WAN (Green) PoE-in-Use LED (Amber) |
Installation | Desktop installation or rack mounting |
Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
Power Consumption / Dissipation | VR-300F: Max.3.7 watts/ BTU VR-300FP: Max.132 watts/ BTU |
Weight | VR-300F: 1.3kg VR-300FP: 1.5kg |
Dimensions (W x D x H) | 330 x 155 x 43.5 mm, 1U height |
Enclosure | Metal |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / 802.3at PoE+ PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 52V DC, 36 watts (max.) |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Budget | 120 watts (max.) @ 25 degrees C 100 watts (max.) @ 50 degrees C |
Max. Number of Class 4 PDs | 4 |
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring |
Security Service | |
Firewall Security | Cybersecurity Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack |
ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323, TFTP |
NAT | Port forwarding DMZ Host UPnP |
Content Filtering | MAC filtering IP filtering Web filtering |
Bandwidth Management | Outbound load balancing Failover for dual-WAN QoS (Quality of Service) |
Networking | |
Operation Mode | Routing mode |
Routing Protocol | Static Route, Dynamic Route (RIP), OSPF |
VLAN | 802.1q Tag-based, Port-based, Multi-VLAN |
Multicast | IGMP Proxy |
NAT Throughput | Max. 900Mbps |
Outbound Load Balancing | Supported algorithms: Weight |
Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3, |
Key Features | HA (High Availability) Captive Portal RADIUS Server/Client AP Control |
VPN | |
VPN Function | IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) |
VPN Tunnels | Max. 60 |
VPN Throughput | Max. 60Mbps |
Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
Management | |
Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported |
Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
System Log | System Event Log |
Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics |
Standards Conformance | |
Regulatory Compliance | CE, FCC |
Environment Specifications | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Date | Version | Description | Download |
---|---|---|---|
2021-12-10 | 1.0 | VR-300FP |
Date | Version | Description | Download |
---|---|---|---|
2022-01-24 | 1.2102b220124 | 1. Add SD-WAN feature 2. Support Planet 802.11ax APs |
Date | Version | Description | Download |
---|---|---|---|
2021-11-05 | 1.2 | Combine manual for VR-300 series(VR-300, VR-300P, VR-300F, VR-300FP, VR-300W5, VR-300PW5, VR-300W6, VR-300PW6, VR-300W6, VR-300PW6A) |
