VIP-1000PT

VIP-1000PT

High Definition PoE IP Phone

O Planet VIP-1000PT faz parte dos grupos dos PoE, Telefonia IP, Dispositivos Alimentados por PoE, Telefone IP e dispõe dos seguintes recursos:

  • voip sip
  • 3way
  • 802.1Q VLAN
  • PLANET DDNS
  • pptp vpn
  • HD-Voice
Hardware
Lines (Direct Numbers) 1-line business-class IP phone
Feature Keys 12 dialing buttons (0~9, *, #)
4 x fixed function buttons
20 multi-functional key
Physical Interfaces One 10/100BASE-TX RJ45 Ethernet port (IEEE 802.3)

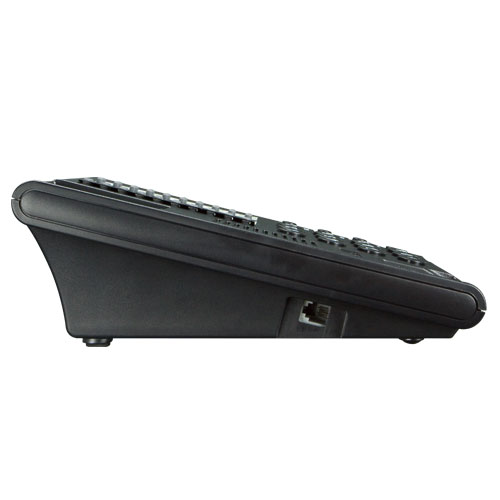

Handset: RJ9 connector
Built-in speakerphone and microphone
Protocols and Standard
Data Networking MAC address (IEEE 802.3)
IPv4 (RFC 791)
Address Resolution Protocol (ARP)
DNS: A record (RFC 1706), SRV record (RFC 2782)
Dynamic Host Configuration Protocol (DHCP) client (RFC 2131)
Internet Control Message Protocol (ICMP) (RFC 792)
TCP (RFC 793)
User Datagram Protocol UDP (RFC 768)
Real-time Protocol RTP (RFC 1889, 1890)
Real-time Control Protocol (RTCP) (RFC 1889)
Differentiated Services (DiffServ) (RFC 2475)
Type of Service (ToS) (RFC 791, 1349)
VLAN tagging 802.1p/Q: Layer 2 Quality of Service (QoS)
Simple Network Time Protocol (SNTP) (RFC 2030)
Backward compatible with RFC 2543
Session Timer (RFC 4028)
SDP (RFC 2327)
NAPTR for SIP URI Lookup (RFC 2915)
Voice Gateway SIP version 2 (RFC 3261, 3262, 3263, 3264)
SIP support in NAT networks [including STUN (RFC 3489)]
Message Waiting Indicator (RFC 3842)
Voice algorithms:
- G.711 (A-law and μ-law)
- G.729A/AB with PAMS above 4.0
- G.722
- G.723
Dual-tone multi-frequency (DTMF), in-band and out-of-band (RFC 2833) (SIP info)
Voice activity detection (VAD)
Adaptive jitter buffer management
Comfort noise generation
Echo cancellation
Provisioning, Administration, and Maintenance Integrated web server provides web-based administration and configuration
Automated provisioning and upgrade via HTTPS, HTTP, TFTP
User authentication for configuration pages
Local and remote Syslog (RFC 3164)
SNTP time synchronization
Capture wireshark trace via web
Multi-user level
SNMP v2
TR069
Features
Telephony Features One voice line
Call Waiting
Auto Answer
Music on Hold
Caller ID
3-way call conferencing
Call Hold and Call Forwarding
Call Transfer: blind transfer and attended transfer
Call Log: redial list, answered calls and missed calls
Volume Adjustment: handset, speaker and ringer
Volume Gain: handset input and speakerphone input
Delayed Hotline
Redial, Speed Dial
Pick Up, Call Park, Dial Plan
Black List
Do not disturb (DND)
Full-duplex speakerphone
Customized Ring Tone
Call History (100 records )
- Most Recently Missed Calls
- Most Recently Received Calls
- Most Recently Dialed Numbers
Phone book ( 500 records)
Blacklist (100 records )
Environment
Power Requirements 5V DC, 1A
IEEE 802.3af PoE class 3
Max. 2W
Operating Temperature 0 ~ 50 degrees C
Operating Humidity 10 ~ 90% (non-condensing)
Weight 488g
Dimensions (W x D x H) 185 x 146 x 67 mm
Emission CE, FCC

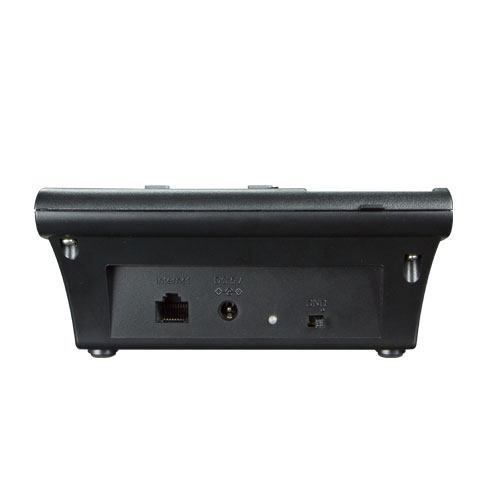

Connectors One 10/100Mbps Ethernet, RJ45
RJ9 handset connector
DC power jack
DND switch

Datasheet

Date Version Description Download
2015-11-18 1.0 VIP-1000PT

Firmware

Date Version Description Download
2015-12-28 1.3_201512221921 Add features
1. Add IVR reports PPPoE of connect type.
2. Add IVR report phone number and server IP.

Fix issue
1. Adjust IVR behavior to fix IVR report issue.

Quick Guide

Date Version Description Download
2015-12-18 1.1 Due to added and modified IVR functions so update content of quick guide.
2015-09-21 1.0 Initial Release

User's Manual

Date Version Description Download
2016-01-04 1.1 Update IVR description and content
2015-10-14 1.0 Initial Release
