VGW-420FO

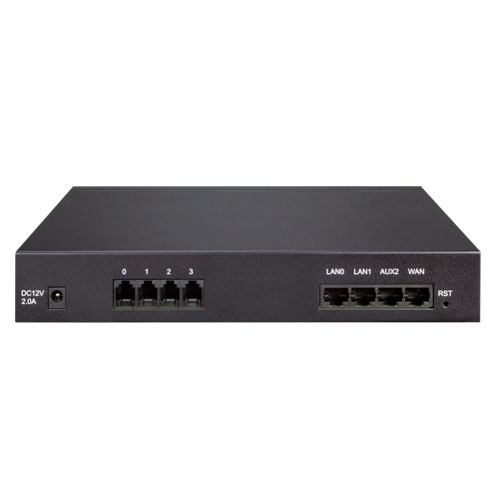

4-Port SIP VoIP Gateway (4 FXO)

Adicionar à cotação

O Planet VGW-420FO faz parte dos grupos dos Telefonia IP, Gateways, FXO/FXS Gateway e dispõe dos seguintes recursos:

  • voip sip
  • t38 foip
  • STUN
  • caller id
  • qos
[item_en][item_en]
Hardware
WAN 1 x 10/100BASE-TX RJ45 port
LAN 2 x 10/100BASE-TX RJ45 port
Voice 4 x RJ11 connection (4 x FXO)
Weight 853g
Dimensions (W x D x H) 242 x 152 x 35 mm
Power Requirements 100-240VAC, 50-60 Hz@DC12V 2A
Power Consumption 12W
Protocols and Standard
FXO Dial Mode: DTMF/Pulse Dialing
Caller ID: FSK, DTMF
Reverse Polarity
Answer Delay
Busy Tone Detection
No Current Detection
Voice & Fax G.711A/U law, G.723.1, G.729A/B, G.726
Silence Suppression
Comfort Noise Generation (CNG)
Voice Activity Detection (VAD)
Echo Cancellation(G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer
Programmable Gain Control
T.38/Pass-through
Modem/POS
DTMF mode: Signal/RFC2833/INBAND
VLAN 802.1P/802.1Q
Layer3 QoS and DiffServ
VoIP Protocol: SIP v2.0 (UDP/TCP),RFC3261,SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311
SIP TLS/SRTP
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3266 IPv6 in SDP
RFC2806 TEL URI
RFC3581 NAT,rport
Outbound Proxy
DNS SRV/A Query/NATPR Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT
Network Static/Dynamic IP
PPPoE
DHCP Client
IPv4/IPv6
TCP, UDP,TFTP, FTP, ARP,RARP, Ping, NTP, SNTP, HTTP/HTTPS, DNS
Ping /Tracert
DHCP Option 66,120,121
OpenVPN
Software Features Port Group
Web ACL
Telnet ACL
Action URL
Digitmap
Routing Rules based Prefixes
Caller/Called Number Manipulation
Speed Dial
Management SNMP v1/v2c/v3
TR069, TR181
Auto Provisioning
Web/Telnet
Configuration Backup/Restore
Firmware Upgrade via Web
CDR
Syslog
Network Capture
NTP/Daylight Saving Time
IVR Local Maintenance
Environments
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -20 ~ 80 degrees C
Operating Humidity 10%~90% relative humidity, non-condensing
Emission CE, FCC
Datasheet
Date Version Description Download
2023-12-29 1.0 VGW-420FO
Quick Guide
Date Version Description Download
2023-12-11 1.2 Initial release.
