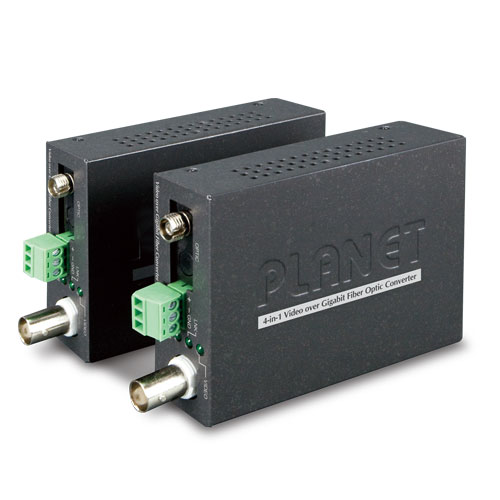

1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit

O Planet VF-10xG-KIT faz parte dos grupos dos Conversor de Mídia, Video por Fibra Óptica, Video over Fiber Converter e dispõe dos seguintes recursos:

  • 4 in 1 Hybrid
  • RS-485
  • Wall-Mount
  • plug play
  • 1.25-Gbps
  • fiber optical
VF-10xG-KITVF-10xG-KITVF-10xG-KITVF-10xG-KITVF-10xG-KITVF-10xG-KITVF-10xG-KITVF-10xG-KITVF-10xG-KIT
Video Characteristics
Video Channel 1 channel bi-direction
Signal Mode NTSC/PAL/SECAM
Video Connector BNC
Supported Video Type 1080p: AHD/TVI/CVI
480p: CVBS
Video Input/Output Impedance 75ohm/unbalanced interface
Video Input/Output Voltage 1.0 Vpp/typical peak-to-peak value
Video Bandwidth 60MHz
Video Digital Bit Width 8/10 bit
Differential Gain (DG) < 1.3% (typical value)
Differential Phase (DP) < 1.3° (typical value)
SNR Weighted > 67dB (typical value)
Data Interface
Data Channel 1 channel
Physical Protocol RS485
Operation Mode Simplex
Data Connector 3-pin terminal block with screw clamps
Data Rate DC-115.2Kbps
Bit Error Rate (BER) < 10ns
Optical Interface
Optical Connector
VIP-101G-KIT
VIP-102G-KIT
VIP-106G-KIT
ST
FC
WDM-SC
Distance 20km for single mode
Optical Wavelength
VF-101G-T
VF-102G-T
VF-106G-T
TX: 1310nm
RX: 1550nm
TX: 1310nm
RX: 1550nm
TX: 1310nm
RX: 1550nm
VF-101G-R
VF-102G-R
VF-106G-R
TX: 1550nm
RX: 1310nm
TX: 1550nm
RX: 1310nm
TX: 1550nm
RX: 1310nm
Launch Power (dBm) Max.: 0, Min.: -9
Receive Sensitivity (dBm) -26
Max. Input Power (dBm) -3
Cable 9/125μm single mode cable
Hardware Specifications
LED Indicators
  • Power
  • Video
  • Link (fiber optic)
Dimensions (W x D x H) 94 x 70 x 26 mm
Weight 200g
Power Requirement 5V DC, 2A
Power Consumption 4.8 watts (maximum)
Mechanical Metal
Installation Wall-mountable, DIN-rail (with optional kit), chassis installation (with optional chassis)
Compatible Converter Chassis MC-700/MC-1500/MC-1500R
Standards Conformance
Regulatory Compliance FCC, CE
Environment
Operating Temperature: -25 ~ 70 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
Storage Temperature: -30 ~ 80 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
Standard Accessories
Packet Contents VF-101G/102G/106G-T x 1
VF-101G/102G/106G-R x 1
User’s manual x 1
5V, 2A power adapter x 2

Datasheet

Date Version Description Download
2017-08-18 1.0 VF-10xG-KIT

User's Manual

Date Version Description Download
2017-07-03 1.0 Initial Release
