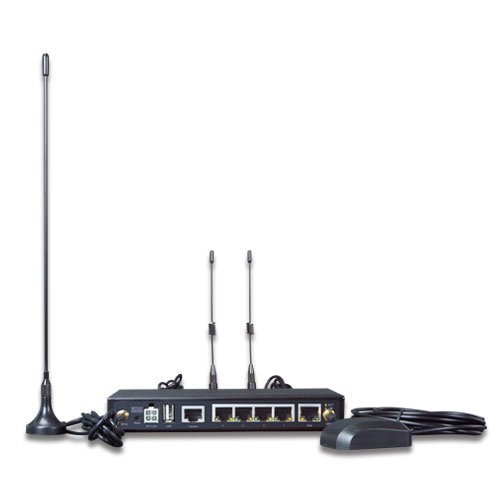

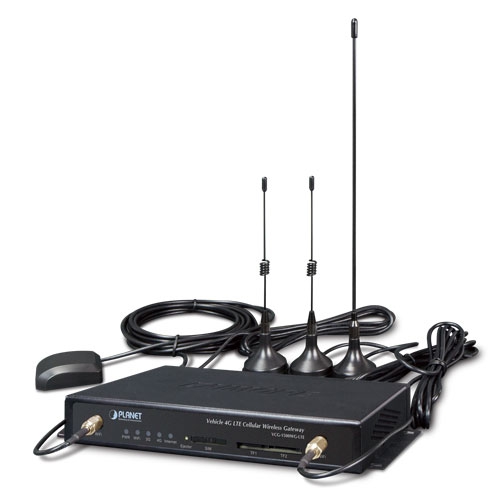

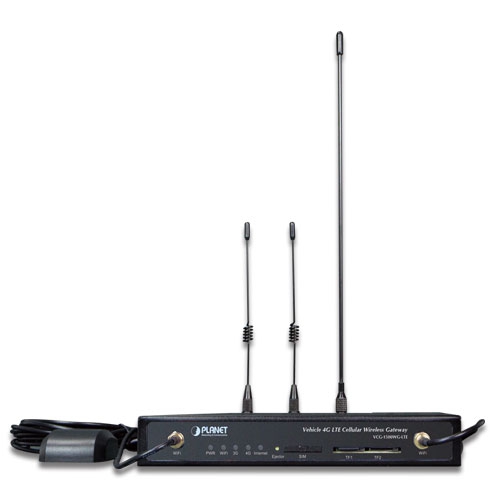

VCG-1500WG-LTE

Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX (1-SIM Card Slot, 802.11n, GPS, -25~65 degrees C)

Adicionar à cotação

O Planet VCG-1500WG-LTE faz parte dos grupos dos Segurança de Rede, Roteadores Wireless, VPN Gateway, Wireless AC, Wireless Cellular Gateway e dispõe dos seguintes recursos:

  • 4G LTE
  • Wireless AP
  • CMS
  • ipsec vpn
VCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTEVCG-1500WG-LTE
Hardware Specifications
Copper Ports 4 LAN 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
1 WAN 10/100BASE-TX RJ45 auto-MDI/MDI-X port
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
SIM Interface 1 x SIM card slot with mini SIM card tray
Cellular Antenna 1 x 2dBi external antenna with SMA connector for LTE
Wi-Fi Antenna 2 x 2dBi external antennas with SMA connectors for 2.4GHz
GPS Antenna 1 x 28dB gain external antenna with SMA connectors for GPS -3m
USB Interface 1 x USB 2.0 for external storage
TF Card Interface 2 x TF cards for storing thousands of advertising data, max. capacity up to 128G for each
Connector Standard 4-pin vehicle power jack for power input
Reset Button > 5 sec: Factory default
ESD Protection 15KV DC
Installation Mounting brackets for vehicles
LED Indicators System:
  • PWR (Red)
Ethernet Interfaces (Port1-4 and WAN Port):
  • LNK (Green)
  • ACT (Orange)
LTE SIM and Signal :
  • 3G/4G (Blue)
  • Wi-Fi (Blue)
  • Internet (Blue)
Dimensions (W x D x H) 168 x 104 x 25 mm (not including antenna and connector)
Weight 537g (not including antenna)
Power Requirements – DC 6~32V DC, 1.5A
Power Consumption 3 watts/10.23 BTU
Multi Band Supports
EU Model - FDD LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800)
- TDD LTE B38/B40/B41 (2600/2300/2500)
- WCDMA B1/B5/B8 (2100/850/900)
- GSM/EDGE B3/B8 (1800/900)
US Model - FDD LTE B2/B4/B5/B13/B17/B25 (1900/AWS/850/700)
- WCDMA B1/B2/B4/B5/B8 (2100/1900/AWS/850/900)
- EVDO BC10/BC0/BC1 (1700/800/1900)
- GSM/GPRS/EDGE (850/900/1800/1900)
LTE Data Rate 20MHz bandwidth: 100Mbps (DL), 50Mbps (UL)
Wireless Specifications
Standard IEEE 802.11b/g/n 2.4GHz
Wireless Mode Access Point
Operating Channels FCC: 1~11, ETSI: 1~13
Encryption Security 64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Data Rate Up to 300Mbps
Transmission Distance Up to 150 meters
*The estimated transmission distance is based on the theory.
The actual distance will vary in different environments.
Advanced Functions
VPN GRE, PPTP, IPSec, L2TP
QoS Bandwidth management
WAN Connection Type PPPoE, Static, DHCP client
Wifidog Wi-Fi authentication and advertising
Secure Network IP filter
URL filter
MAC filter
Other Supports demilitarized zone (DMZ)
Supports NAT port mapping function, UPnP
Supports Dynamic DNS
Management
Basic Management Interfaces Console, Telnet, Web browser
Standards Conformance
Regulatory Compliance CE, FCC
Standards and Protocols Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control and back pressure
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 5321 SMTP
RFC 2068 HTTP
RFC 1939 POP3
RFC 854 TELNET
RFC 959 FTP
Environment
Operating Temperature: -25 ~ 65 degrees C
Relative Humidity: 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 95% (non-condensing)
Datasheet
Date Version Description Download
2018-08-17 1.0 VCG-1500WG-LTE
Quick Guide
Date Version Description Download
2018-08-13 1.0 Initial release
User's Manual
Date Version Description Download
2018-10-12 1.0 Initial Release
