VC-231GP

1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter

Adicionar à cotação

O Planet VC-231GP faz parte dos grupos dos PoE, Conversor de Mídia, Conversor de Mídia PoE, Extensores Ethernet, Acessórios, 802.3at PoE+ Media Converter, Ethernet over Phone Wire, Media Converters e dispõe dos seguintes recursos:

  • PoE+
  • 802.3at 30 Watts
  • VDSL2 30a
  • COCPE Mode
  • 10M 100M 1000M
  • plug play
VC-231GPVC-231GP
Hardware Specifications
LAN Port 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
VDSL Port 1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
Phone Port Additional splitter for POTS connection

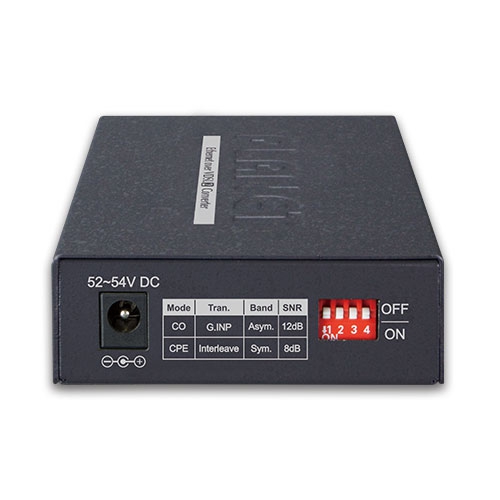

DIP Switch & Functionality 4-position DIP switch
■ CO or CPE mode selectable
■ Selectable G.INP and interleaved mode
■ Selectable target Band plan
■ Selectable target SNR mode

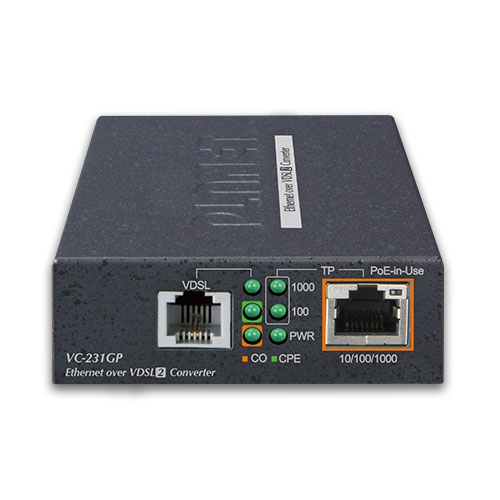

LED Indicators 1 Power: Green
1 1000BASE-T LNK/ACT: Green
1 100BASE-TX LNK/ACK: Green
1 VDSL: Green
1 CO: Green
1 CPE: Green
1 PoE-in-use: Amber
ESD Protection 6KV DC
Enclosure Metal
Installation Wall mount or DIN rail with optional kit
Dimensions (W x D x H) 97 x 70 x 26 mm
Weight 206g
Power Requirements DC 54V, 0.74A external power
Power Consumption (VDSL2 + Ethernet + PoE) CO Mode: 32.4 watts/110BTU
CPE Mode : 32 watts/109BTU
Power Over Ethernet
PoE Standard IEEE 802.3at PoE+ PSE
PoE Power Output Budget DC 52V, 30 watts
PoE Power Supply Type End-span
Power PIN Assignment 1/2(+), 3/6(-)
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Maximum Packet Size 1522 bytes
System Specifications
VDSL Compliance VDSL-DMT
■ ITU-T G.993.1 VDSL
■ ITU-T G.997.1
■ ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
■ ITU-T G.993.5 G.Vectoring
■ ITU-T G.998
■ G.INP
ADSL Compliance Capable of ADSL2/2+ standard
■ ITU G.992.3 G.dmt.bis
■ ITU G.992.5 G.dmt.bisplus
Data Rate: Up to 24Mbps
Performance* (Downstream/Upstream)
  • Interleave, Asym, 8dB

    • 　200M ----> 190Mbps/90Mbps
    　400M ----> 163Mbps/64Mbps
    　600M ----> 110Mbps/34Mbps
    　800M ----> 73Mbps/18Mbps
    　1000M --> 49Mbps/10Mbps
    　1200M --> 39Mbps/8Mbps
    　1400M --> 25Mbps/6Mbps

  • Interleave, Sym, 8dB

    • 　200M ----> 149Mbps/141Mbps
    　400M ----> 116Mbps/115Mbps
    　600M ----> 72Mbps/70Mbps
    　800M ----> 45Mbps/44Mbps
    　1000M --> 26Mbps/16Mbps
    　1200M --> 26Mbps/12Mbps
    　1400M --> 29Mbps/12Mbps

  • G.INP, Asym, 8dB

    • 　200M ----> 192Mbps/93Mbps
    　400M ----> 159Mbps/64Mbps
    　600M ----> 106Mbps/37Mbps
    　800M ----> 68Mbps/19Mbps
    　1000M --> 49Mbps/8Mbps
    　1200M --> 29Mbps/8Mbps
    　1400M --> 26Mbps/6Mbps

  • G.INP, Sym, 8dB

    • 　200M ----> 150Mbps/150Mbps
    　400M ----> 114Mbps/113Mbps
    　600M ----> 69Mbps/69Mbps
    　800M ----> 49Mbps/39Mbps
    　1000M --> 27Mbps/24Mbps
    　1200M --> 26Mbps/12Mbps
    　1400M --> 21Mbps/11Mbps

  • Interleave, Asym, 12dB

    • 　200M ----> 177Mbps/83Mbps
    　400M ----> 145Mbps/57Mbps
    　600M ----> 92Mbps/31Mbps
    　800M ----> 59Mbps/15Mbps
    　1000M --> 44Mbps/10Mbps
    　1200M --> 32Mbps/6Mbps
    　1400M --> 22Mbps/3Mbps

  • Interleave, Sym, 12dB

    • 　200M ----> 136Mbps/129Mbps
    　400M ----> 100Mbps/101Mbps
    　600M ----> 58Mbps/57Mbps
    　800M ----> 42Mbps/36Mbps
    　1000M --> 23Mbps/12Mbps
    　1200M --> 23Mbps/10Mbps
    　1400M --> 17Mbps/11Mbps

  • G.INP, Asym, 12dB

    • 　200M ----> 177Mbps/85Mbps
    　400M ----> 144Mbps/51Mbps
    　600M ----> 87Mbps/29Mbps
    　800M ----> 55Mbps/15Mbps
    　1000M --> 40Mbps/8Mbps
    　1200M --> 38Mbps/8Mbps
    　1400M --> 26Mbps/4Mbps

  • G.INP, Sym, 12dB

    • 　200M ----> 136Mbps/133Mbps
    　400M ----> 97Mbps/102Mbps
    　600M ----> 54Mbps/56Mbps
    　800M ----> 40Mbps/35Mbps
    　1000M --> 24Mbps/22Mbps
    　1200M --> 24Mbps/9Mbps
    　1400M --> 18Mbps/12Mbps
    Standards Conformance
    Standards Conformance IEEE 802.3 Ethernet
    IEEE 802.3u Fast Ethernet
    IEEE 802.3ab Gigabit Ethernet
    IEEE 802.3x Full-duplex flow control
    IEEE 802.1p Class of Service
    IEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus
    ITU-T G.993.1 VDSL
    ITU-T G.997.1
    ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
    ITU-T G.993.5 G.Vectoring & G.INP
    ITU-T G.998
    xDSL Compatibility
    VDSL2 VC-231G
    VC-234G
    VC-231
    VC-234
    VC-820M
    VDR-301N
    Datasheet
    Date Version Description Download
    2018-10-19 1.0 VC-231GP
    User's Manual
    Date Version Description Download
    2018-10-03 1.0 Initial release.
