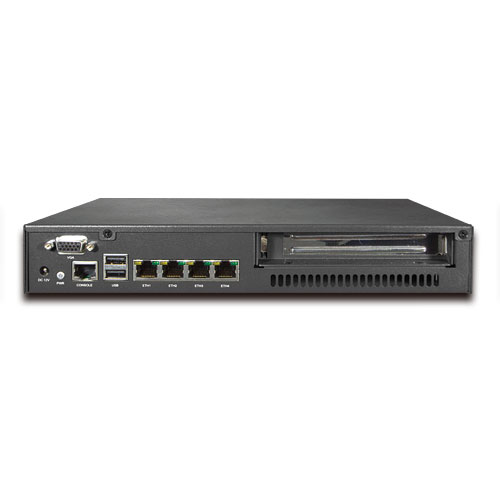

UMG-1000

Desktop Unified Office Gateway

O Planet UMG-1000 faz parte dos grupos dos Telefonia IP, PABX IP, Unified Office Gateway e dispõe dos seguintes recursos:

  • IP PBX
  • E mail Server
  • spi firewall
  • 1000mbps
  • antispam
Hardware Specifications
Case Desktop placement
WAN 1 x RJ-45 (10/100/1000Base-TX, Auto-Negotiation, Auto MDI/MDI-X)
LAN 3 x RJ-45 (10/100/1000Base-T, Auto-Negotiation, Auto MDI/MDI-X)
SATA support 1-Port SATA Controller (For SATA I, SATA II Hard Disk)
Hard Disk support 1 x SATA 2.5" internal Hard Disk (up to 1.5TB)
Voice 4 x RJ-11 (4 x FXO)
USB 2 x USB2.0 (future feature)
CF slot 1 x On-board Compact Flash socket
Console RJ-45 port (future feature)
LED Indicators 1 x PWR LED
1 x Internet LED
1 x WAN LED
3 x LAN LED
Software Specifications
VoIP SIP protocol
- SIP 2.0 (RFC3261,RFC2833)
Registration
- Max. 100 nodes
Calls
- Max. 30 concurrent calls
Voice Compression Code Technology
- G.711, G.726
Video Compression Code Technology
- H.261, H.263, H.263+, H.264
Echo Cancellation
- G.165/G.168
Gain Control
- In/Out +/-6db
Voice Processing
- Voice Activated Detection
- DTMF Detection/Generation
- G.165/G.168 Echo Cancellation (ECN)
- Comfort Noise Generation (CNG)
- Gain Control
IP PBX - Support call hold, call waiting, 3-way call conference with feature phones
- Built-in in-line call transfer
- Unconditional, unavailable, busy call forward, custom time of no answer
- Per-calling-number forward and rejection
- Group-based call pick-up
- Call-parking
- Inter-PBX SIP Trunking
- Multi-room meet-me conference
- Auto-attendant
- Voice mail system
- Call privilege grouping
- FXO interface for PSTN Inbound/outbound
- FXO disconnection tone detection
- Caller ID detection
- In-band/RFC2833/SIP-INFO DTMF translation
- Music on hold (MoH), user upload MoH
- Direct line Outbound
- User upload IVR
Voicemail - User PIN
- 450 minutes for personal record
- E-mail notification
- Personal reception on unavailability
- Reply call or new call in voicemail menu
E-mail Protocol
- POP3,IMAP,SMTP
Support accounts
- 100 users
Email Security
- Secured Socket Layer (SSL)
Anti-Virus
- ClamAV
Anti-Spam
Junk mail block
Mailbox size Limit
- 200M/500M/1G/2G/No Limit
Attachment
- 2M/5M/10M/20M/50M/No Limit
White & Black List
- Share/User/Domain security modes
Email Backup
- Auto-Backup
Network Storage Data Sharing
- Windows Network Sharing, NFSv3
Security Network Security
- DoS attack Prevention
VPN Max. connection
- 100 PPTP VPN tunnels
- 8 Site-to-Site SSL VPN tunnels
VPN pass-through
- IPSec, PPTP, L2TP pass-through
Internet Security
- Domain/Keyword Content Filter, Access Control
- IP-MAC Binding
Other Protocol / Function Protocol
- TCP/IP, NAT, DHCP, HTTP, DNS, NTP, HTTPS, CIFS/SMB, NFSv3
Internet Access
- Static IP, PPPoE, DHCP, PPTP, L2TP
DMZ
UPnP
QoS
DDNS
Multiple Domain Name
Management - Web based GUI management
- Firmware upgradeable via local
