TSN-5225-4T
TSN-5225-4T
Industrial L2+ 4-Port 10/100/1000T Managed TSN Ethernet Switch
O Planet TSN-5225-4T faz parte dos grupos dos Ethernet Industrial, Switch Industrial Gerenciável, L2+ Ring Managed Gigabit Ethernet Switch e dispõe dos seguintes recursos:
- 1588 PTP
- di do
- RING
- NMS
- 40 degree ~75 degree
![[item_en]](images/box_TSN-5225-4T_01.jpg)
![[item_en]](images/box_TSN-5225-4T_02.jpg)
| Hardware Specifications | |
|---|---|

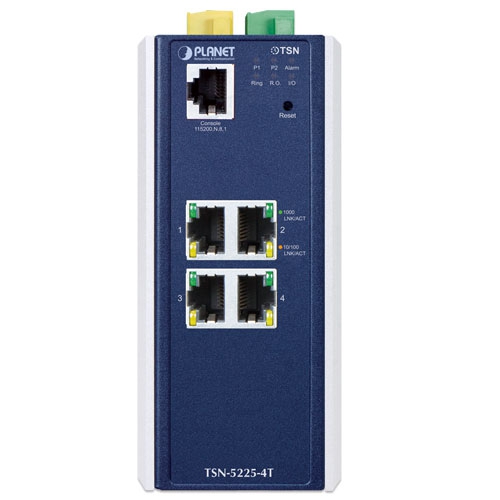

| Copper Ports | 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Console | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |

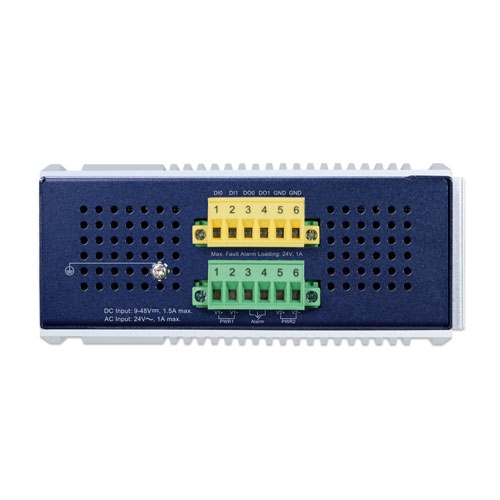

| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) | 2 digital input: Level 0: -24~2.1V (±0.1V) Level 1: 2.1~24V (±0.1V) Input load to 24V DC, 10mA max. |
| Digital Output (DO) | 2 digital output: Open collector to 24VDC, 100mA |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail or wall mounting |
| SDRAM | 1024Mbytes |
| Flash Memory | 64Mbytes |
| Dimensions (W x D x H) | 60 x 135 x 135 mm |
| Weight | 962g |
| Power Requirements | DC 9~48V, 1.5A max. AC 24V, 1A max. |
| Power Consumption | DC input: Max. 8.36 watts/28.53BTU (system on) Max. 9.89 watts/33.75BTU (Full loading) AC 24V input: Max. 6.2 watts/21.16BTU (system on) Max. 7.9 watts/26.96BTU (Full loading) |
| ESD Protection | 5KV DC |
| Surge Protection | 6KV DC |
| LED Indicators | System: Power 1 (Green), Power 2 (Green) Fault Alarm (Red) Ring (Green), Ring Owner (Green) DIDO (Red) Per 10/100/1000T RJ45 Port: 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 8Gbps/non-blocking |
| Throughput | 5.95Mpps@64Bytes |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 32Mbits |
| Jumbo Frame | 10K bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Layer 3 Functions | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing IPv6 software static routing |
| Layer 2 Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor Mirror – Remote Switched Port Analyzer (Cisco RSPAN) Supports up to 5 sessions |
| VLAN | IEEE 802.1Q tagged VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN registration) GVRP Up to 4K VLAN groups, out of 4096 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Maximum 2 trunk groups with 4 ports per trunk group |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol BPDU Guard, BPDU filtering and BPDU transparent |
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kb~3276Mbps Egress: 100Kb~3281Mbps |
| Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms @ 3 nodes Recovery time < 50ms @ 16 nodes Supports Major ring and sub-ring |
| Synchronization | IEEE 1588v2 PTP(Precision Time Protocol) PTP Master PTP Slave Boundary clock Ordinary Clock Peer-to-peer transparent clock End-to-end transparent clock |
| QoS | Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification: IEEE 802.1p CoS IP TOS / DSCP / IP Precedence IP TCP/UDP port number Typical network application Traffic-policing policies on the switch port DSCP remarking |
| Time-Sensitive Networking Protocols | High Precision Time Synchronization: IEEE1588 (Time Stamping) 802.1AS-Rev gPTP default profile Shapers: 802.1Qbv (Time-aware Scheduling) 802.1Qch (Cyclic Queuing and Forwarding) TSN Stream Policing: 802.1Qci (Per Stream Filtering and Policing) Redundancy: 802.1CB ( Frame Replication and Elimination for Redundancy for seamless redundancy) Also standard Linear and Ring protection Delay Reduction: IEEE 802.1Qbu Frame Preemption, IEEE 802.3br Interspersing Express Traffic (IET) |
| Security Functions | |
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 512 entries |
| Security | Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries |
| AAA | RADIUS client TACACS+ client |
| Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
| Management | |
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET NMS PLANET NMSViewerPro/CloudViewerPro |
| Event Management | Remote syslog Local system log SMTP |
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A CE: EN55032 EN55035 |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ah OAM IEEE 1588 PTPv2 IEEE 802.1ag Connectivity Fault Management (CFM) IEEE 802.1AS - Timing and Synchronization for Time-sensitive Applications IEEE 802.1Qbu Frame Preemption, IEEE 802.3br Interspersing Express Traffic (IET) IEEE 802.1Qci Per-Stream Filtering and Policing (PSFP) IEEE 802.1Qbv Enhancements for Scheduled Traffic IEEE 802.1CB Frame Replication and Elimination for Reliability (FRER) RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating | -40 ~ 75 degrees C |
| Storage | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
