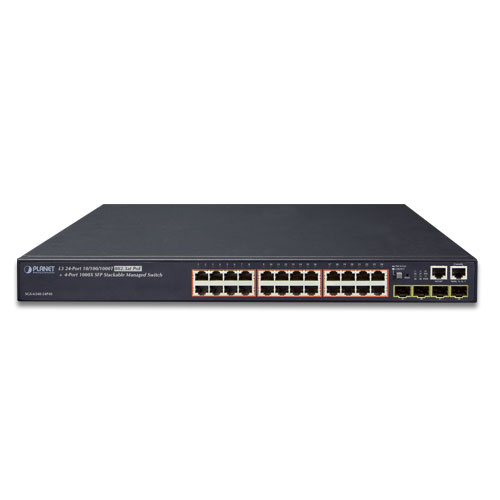

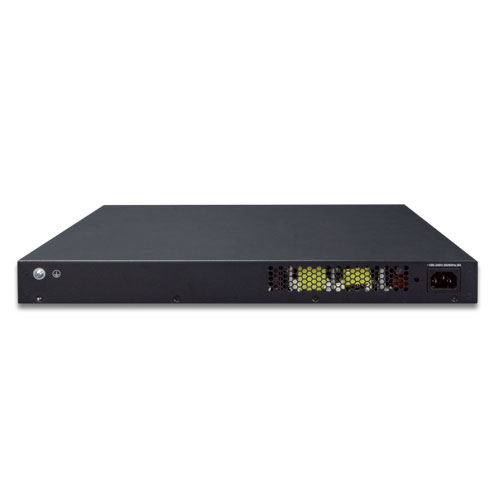

SGS-6340-24P4S

SGS-6340-24P4S

Layer 3 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Stackable Managed Switch (370W)

O Planet SGS-6340-24P4S faz parte dos grupos dos LAN Switches, PoE, Switches Gerenciáveis Camada 3, Switches PoE Gerenciáveis Camada 3 e dispõe dos seguintes recursos:

  • L3 RIP Routing
  • L3 OSPF Routing
  • SSL-SSH
  • SNMP
  • IPv6-Management
  • 802.3at 802.3af End-span
Hardware Specifications
Copper Ports 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 4 1000BASE-X SFP interfaces
PoE Injector Port 24 ports with 802.3at/af PoE injector function with port-1 to port-24
Console 1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
Switch Architecture Store-and-forward
Switch Fabric 56Gbps/non-blocking
Switch Throughput 41.66Mpps
Address Table 16K MAC address table with auto learning function
Shared Data Buffer 1.5MB
Flow Control Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex
Jumbo Frame 9KB
LED System:
PWR, SYS
Ports:
10/100/1000T RJ45 Port: Button off: LNK/ACT, Button on: PoE In-Use
1000X SFP slot: LNK/ACT
Dimensions (W x D x H) 442 x 330 x 44 mm, 1U height
Weight 4503g
Power Consumption 449 watts/1532.05 BTU (maximum)
Power Requirements AC 100~240V, 50/60Hz
Fan 3
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at PoE+ PSE
PoE Power Supply Type End-span
PoE Power Output Per port 54V DC, 33 watts (max.)
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 370 watts (max.)
PoE Ability PD @ 9 watts 24 units
PoE Ability PD @ 15 watts 24 units
PoE Ability PD @ 30 watts 12 units
Management Function
System Configuration Console, Telnet, SSH, Web browser, SNMP v1, v2c and v3
Management Supports both IPv4 and IPv6 addressing
Supports the user IP security inspection for IPv4/IPv6 SNMP
Supports MIB and TRAP
Supports IPv4/IPv6 FTP/TFTP
Supports IPv4/IPv6 NTP
Supports RMON 1, 2, 3, 9 four groups
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
Supports IPv4/IPv6 SSH
The right configuration for users to adopt RADIUS server’s shell management
Supports CLI, console, Telnet
Supports SNMP v1, v2c and v3
Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Supports Syslog server for IPv4 and IPv6
Supports TACACS+
Layer 3 Function
Routing Protocol Static routing, RIP and OSPF
Routing Table 128
Layer 2 Function
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect
Port Status Display each port’s speed duplex mode, link status, flow control status and
auto negotiation status
VLAN 802.1Q tagged based VLAN, up to 256 VLAN groups
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN
Bandwidth Control TX/RX/both
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 128 groups with 8 ports per trunk group
QoS 8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
Multicast IGMP v1/v2/v3 snooping
Querier mode support
MLD v1/v2 snooping
Querier mode support
Multicast VLAN Register (MVR)
Access Control List Supports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 512 entries
Bandwidth Control At least 64Kbps step
Security Supports MAC + port binding
IPv4/IPv6 + MAC + port binding
IPv4/IPv6 + port binding
Supports MAC filter
ARP scanning prevention
Authentication IEEE 802.1x port-based network access control
AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMP v3 notify
RFC 2574 SNMP v3 vacm
RFC 2674 Bridge MIB Extensions
Standard Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PLUS
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
