POE-176-95
POE-176-95
Single-Port 10Gbps 95-watt 802.3bt PoE++ Injector
O Planet POE-176-95 faz parte dos grupos dos PoE, Injetores e SpliTTers PoE, 802.3bt Ultra PoE Injector Hub e dispõe dos seguintes recursos:
- Metal Housing
- plug play
- Wall Mount
![[item_en]](images/box_POE-176-95_03.jpg)
![[item_en]](images/box_POE-176-95_01.jpg)
![[item_en]](images/box_POE-176-95_04.jpg)
![[item_en]](images/box_POE-176-95_02.jpg)
| Hardware Specifications | |
|---|---|

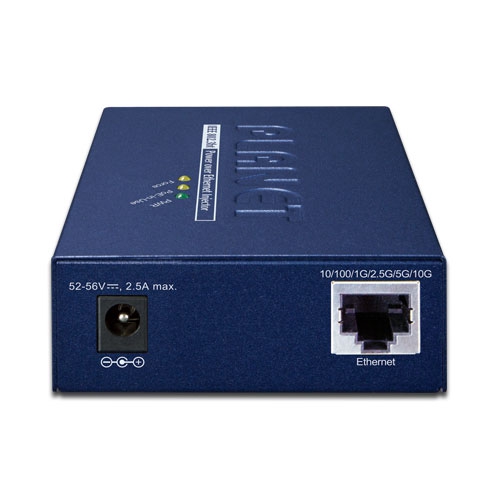

| Interface | Input Port 1 x RJ45 STP Data In Output Port 1 x RJ45 STP PoE (Data + Power) Out DC Socket 1 x 52~56V DC input socket |
| Network Cable* | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5G: 4-pair UTP Cat 6/Cat 6A/Cat 7 10G:4-pair UTP Cat 6A/Cat 7 |

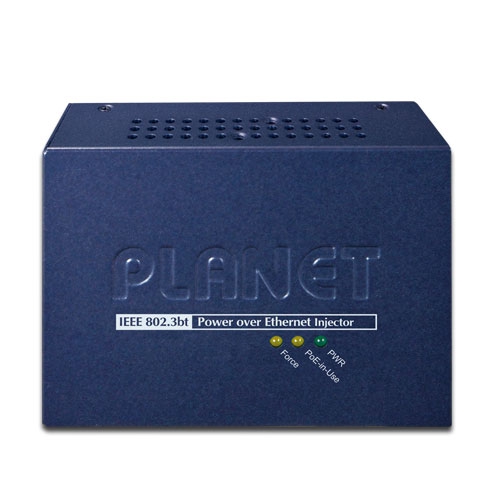

| LED Indicators | System: Power x 1 (Green) PoE Port: PoE-in-Use x 1 (Amber) Force Mode: Force x 1 (Amber) PoE Usage: PoE Usage x 3 (Amber) |
| Data Rate | 10M/100M/1G/2.5G/5G/10Gbps |
| Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm |
| Weight | 195g |
| Unit Output Voltage | DC 52~56V |
| Power Requirements | DC 52-56V, 2.5A max |
| Power Consumption | 103 watts max. |
| No. of Devices that can be powered | 1 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/at/bt PSE |
| PoE Power Output Budget | DC 54V/30-watt PoE via 2-pair DC 54V/60-watt PoE via 4-pair 54V/95-watt PoE via 4-pair |
| PoE Power Output | Max. 86.8W for 1 m cable Max. 72W for 100 m cable |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |

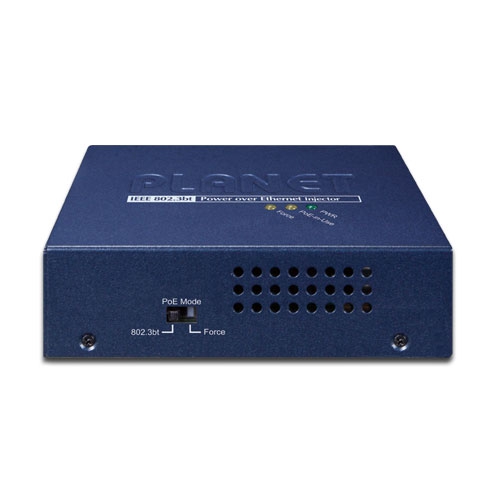

| PoE Mode | 802.3bt: To provide power to the PD devices that follow the IEEE 802.3af/at/bt standard. Force: When the Force mode is enabled, it will provide PD with max. 60W. |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5G/10GBASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet (Type 4) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, relative humidity, non-condensing |
