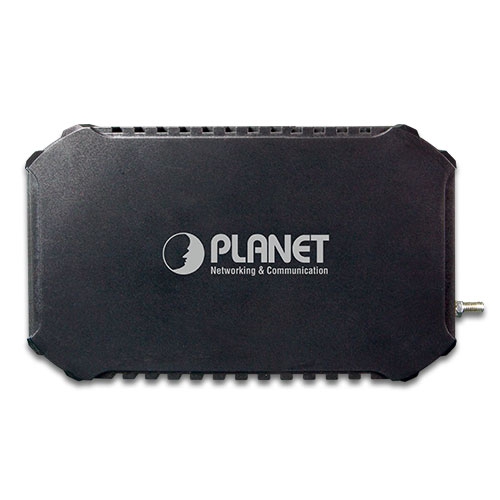

POE-175-95

One-Port 10/100/1000Mbps 802.3bt PoE++ Injector

Adicionar à cotação

O Planet POE-175-95 faz parte dos grupos dos PoE, Injetores e SpliTTers PoE e dispõe dos seguintes recursos:

  • 10M 100M 1000M
  • plug play
  • Wall Mount
POE-175-95POE-175-95POE-175-95
Hardware Specifications

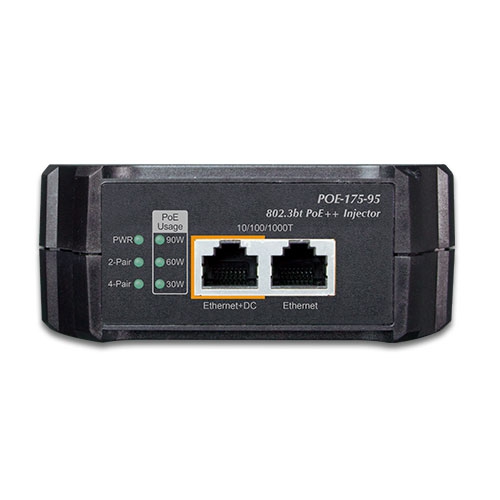

Interface Input Port
1 x RJ45 STP
Data In

Output Port
1 x RJ45 STP
PoE (Data + Power) Out

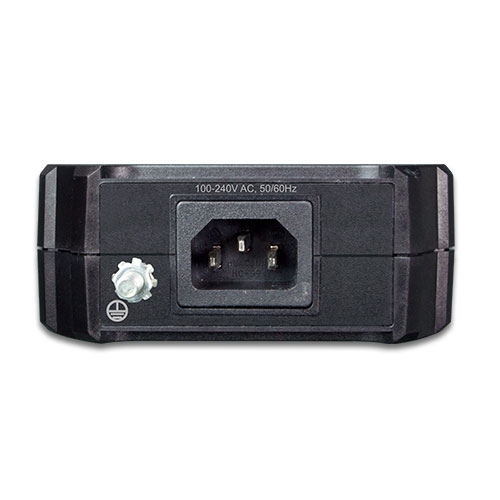

AC Socket
1 x AC input socket
Network Cable Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
LED Indicator PWR x 1 (Green)
2-pair x 1 (Green)
4-pair x 1 (Green)
PoE Usage x 3 (Green)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 170 x 100 x 40 mm
Weight 480g
Unit Output Voltage DC 54V
Power Requirements AC 100-240V, 1.5A max.
Power Consumption 120 watts max.
No. of devices that can be powered 1
Power over Ethernet
PoE Standard IEEE 802.3at/bt Ultra PoE PSE
PoE Power Output Budget DC 54V / 95-watt PoE via 4-pair
DC 54V / 30-watt PoE via 2-pair
PoE Power Output Max. 90W@1 m cable
Max. 73W@100 m cable
PoE Power Supply Type End-span + Mid-span
Power Pin Assignment Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bt 4-pair Power over Ethernet Type 4
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 70 degrees C
Operating Humidity 5 ~ 90%, relative humidity, non-condensing
Storage Humidity 5 ~ 90%, relative humidity, non-condensing
Standard Accessories
Package Contents POE-175-95
User's manual
Power cord
Datasheet
Date Version Description Download
2018-08-24 1.0 POE-175-95
User's Manual
Date Version Description Download
2018-05-28 1.0 Initial release
