POE-173S-12V

Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

Adicionar à cotação

O Planet POE-173S-12V faz parte dos grupos dos PoE, Injetores e SpliTTers PoE, 802.3bt Ultra PoE Splitter e dispõe dos seguintes recursos:

Gigabit
Metal Housing
Wall Mount
plug play

Hardware Specifications

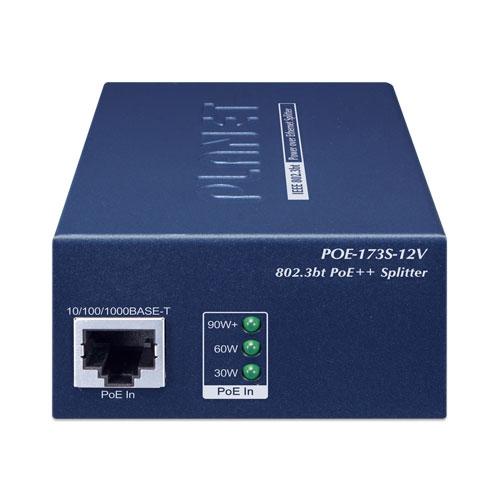

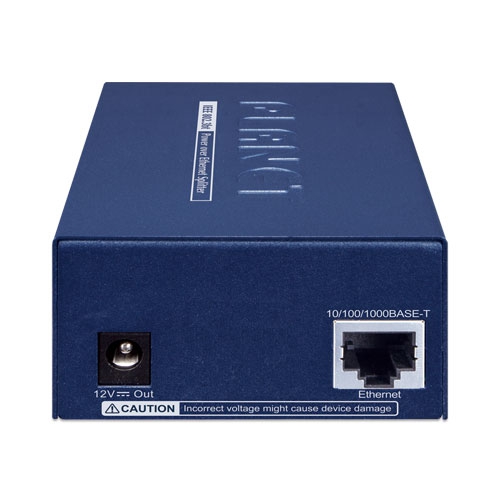

Interface	Ethernet：1 x 10/100/1000BASE-T RJ45, Ethernet data output port PoE in：1 x 10/100/1000BASE-T RJ45, PoE power input port Power socket：1 x DC plug-in
DC Socket	DC receptacle 2.5mm
LED Indicators	PoE in: 　30W (Green) 　60W (Green) 　90W+ (Green)
Data Rate	10/100/1000Mbps
Dimensions(W x D x H)	94 x 70.3 x 39.2 mm
Weight	265g
Installation	Desktop/wall mountable/DIN-rail
Enclosure	Metal case
Power Requirements	48~56V DC PoE
Unit Output Current(at 56VDC Input)	With 803.bt type 3 PoE++ input:　4.5A@12V DC With 803.bt type 4 PoE++ input:　5A@12V DC
Power Consumption	Ethernet full loading without DC output:　6.5 watts Full loading with maximum 12V DC, 5A output:　70 watts
Network Cable	803.bt PoE (60W+) 　4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3at PoE (30W) 　2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
Power over Ethernet
PoE Standard	802.3bt Type 3/4 Power over Ethernet 4-pair 802.3at PoE+ Compliant with voltage within 48-56V DC
Power Output	DC 12V
PoE Power Supply Type	End-span + Mid-span End-span Mid-span
Power Pin Assignment	1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Standards Conformance
Standards Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Type 4
Regulatory Compliance	FCC, CE, UL
Environment
Operating Temperature	0~ 50 degrees C
Storage Temperature	-10~ 70 degrees C
Humidity	5 ~ 95% (non-condensing)
