POE-171A-60

POE-171A-60

Single-Port Multi-Gigabit 802.3bt PoE++ Injector (60 Watts)

O Planet POE-171A-60 faz parte dos grupos dos PoE, Injetores e SpliTTers PoE, PoE Industrial, PoE Industrial, Rack-mount L2+ Ring Managed Gigabit PoE Switch, PoE Injector/Splitter/Extender e dispõe dos seguintes recursos:

  • 802.3bt 802.3at End-span Mid-span
  • 60W PoE
  • 10M 100M 1000M
  • plug play
  • Wall-Mount
  • kg
Hardware Specifications
Interface Input Port
1 x RJ45 STP
Data In

Output Port
1 x RJ45 STP
PoE (Data + Power) Out

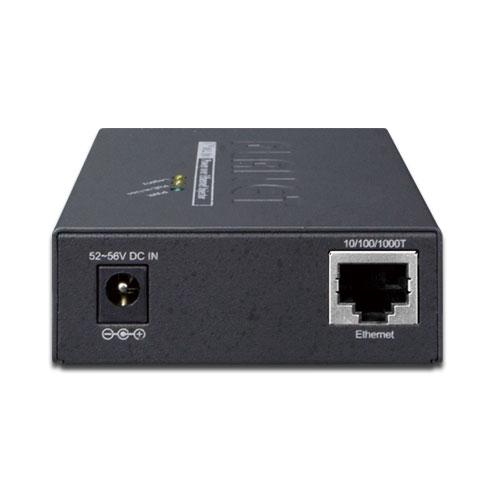

DC Socket
1 x 52~56V DC input socket
Network Cable Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat5, 5e, 6
1000BASE-T: 4-pair UTP Cat5e, 6

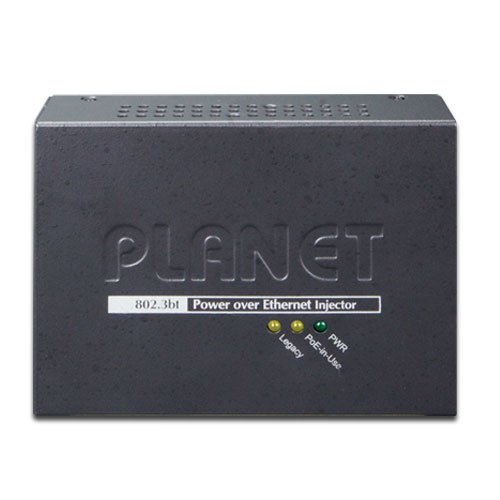

LED Indicator System: Power x 1 (Green)
PoE Port: PoE in-Use x 1 (Orange)

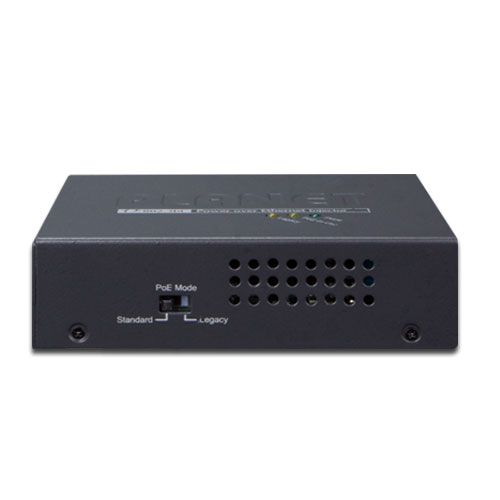

Legacy mode: Legacy x 1 (Orange)

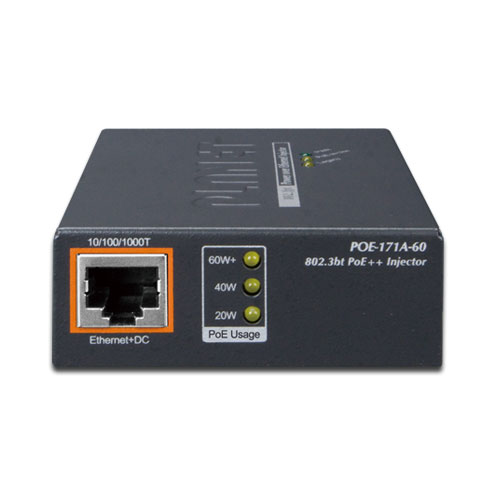

PoE Usage: PoE Usage x 3 (Orange)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 94 x 70.3 x 26.2 mm
Weight 200g
Unit Output Voltage DC 52~56V
Power Requirements DC 52-56V, 1.4A max.
Power Consumption 72 watts max.
No. of devices that can be powered 1
Power over Ethernet
PoE Standard IEEE 802.3af/at/bt Ultra PoE PSE
PoE Power Output Budget DC 54V / 60-watt PoE via 4-pair
DC 54V / 30-watt PoE via 2-pair
PoE Power Supply Type End-span + Mid-span
Power Pin Assignment Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bt 4-pair Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 70 degrees C
Operating Humidity 5 ~ 90%, relative humidity, non-condensing
Storage Humidity 5 ~ 90%, relative humidity, non-condensing
Standard Accessories
Package Contents
  • POE-171A-60
  • User's manual
  • 100 ~ 240V AC-to-DC power adaptor
  • AC power cord

Datasheet

Date Version Description Download
2018-02-09 1.0 POE-171A-60

User's Manual

Date Version Description Download
2017-12-18 1.0 Initial Release
