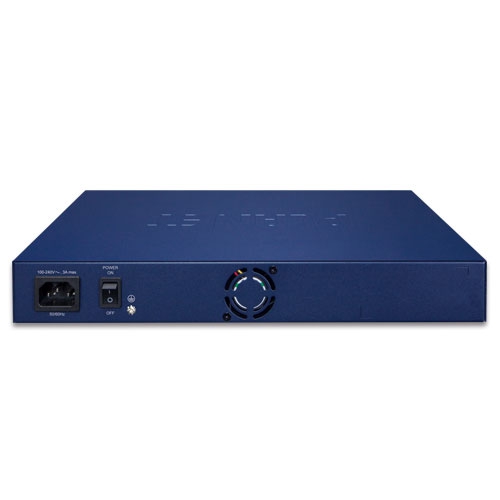

MGS-6320-8HP2X
MGS-6320-8HP2X
L3 4-Port 10/100/1000T 802.3at PoE + 4-Port 2.5G 802.3bt PoE + 2-Port 10G SFP+ Managed Switch
O Planet MGS-6320-8HP2X faz parte dos grupos dos LAN Switches, LAN Switches, PoE, PoE, Switches Gerenciáveis Camada 3, Switches Gerenciáveis Camada 3, Switches PoE Gerenciáveis Camada 3, Switches PoE Gerenciáveis Camada 3, 802.3bt Ultra PoE L3 Managed Switch, Layer 3 Aggregation Switch, 802.3bt PoE++/Ultra PoE L3 Managed Switch e dispõe dos seguintes recursos:
- 2.5 Gbps
- L3 OSPF Routing
- RING
- 10Gbps SFP+
- ONVIF
| Hardware Specifications | |
|---|---|
| Copper Ports | 4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-4 4x 10/100/1000/2500BASE-T RJ45 auto-MDI/MDI-X interface with Port-5 to Port-8 |
| SFP/mini-GBIC Slots | 2 x 1G/2.5G/10GBASE-X SFP interfaces with Port-9to Port-10 |
| PoE Injector Port | 4 ports with 802.3at/af PoE injector function with Port-1 to Port-4 4 ports with 802.3bt/at/af PoE injector function with Port-5 to Port-8 |
| Console | 1 x RJ45 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| RAM | 512Mbytes |
| Flash Memory | 64Mbytes |
| Dimensions (W x D x H) | 330 x 200 x 44.5mm, 1U height |
| Weight | 2127g |
| Power Requirements | 100~240V AC, 50/60Hz, 3A max. |
| Power Consumption | Max. 15.48 watts/52.78BTU (Power on without any connection) Max. 281.6watts/960.25BTU (Full loading with PoE+ function) |
| ESD Protection | 6KV DC |
| Surge Protection | 4KV DC |
| LED | System: PWR (Green), SYS (Green), R.O (Green), Ring (Green) Per 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 4): 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Amber) 802.3at/af PoE-in-Use (Amber) Per 10/100/1000/2500BASE-T RJ45 Interfaces (Port 5 to Port 8): 1000/2500Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Amber) 802.3bt PoE-in-Use (Green) 802.3at/af PoE-in-Use (Amber) Per 1G/2.5G/10G Mbps SFP Interfaces (Port 9 to Port 10): 1G/2.5G LNK/ACT (Green) 10G LNK/ACT (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 68Gbps/non-blocking |
| Throughput | 50.59Mpps@ 64Bytes packet |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4.1Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10Kbytes |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at PoE+ PSE (Port 1 to Port 4) Backward compatible with IEEE 802.3af PoE PSE 802.3bt PoE++ PSE (Port 5 to Port 8) Backward compatible with IEEE 802.3at PoE PSE |
| PoE Power Supply Type | 802.3bt UPOE/POH End-span Mid-span Force |
| PoE Power Output | 802.3bt Type-4 mode, Port-5 to Port-8: maximum 90 watts UPoE mode, Port-5 to Port-8: maximum 95 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts Force mode: maximum 60 watts |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget | 240 watts (max.) @ 25 degrees C 200 watts (max.) @ 50 degrees C |
| Number of 802.3bt Type-4 PDs | 2 units |
| Number of 802.3bt Type-3 PDs | 4 units |
| Number of 802.3at Type-2 PDs | 8 units |
| PoE Management Functions | |
| PoE System Management | PoE Port Status monitoring Total PoE power budget control Over Temperature Protection PoE usage threshold and temperature threshold |
| PoE Device Live Detections | Per port remote PD IP address 4 actions None PD reboot PR reboot and alarm Alarm |
| PoE Power Recyclinge | Yes, daily or predeinded schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extend Mode | Yes, max. 200 meters |
| Layer 3 Functions | |
| IP Interfaces | Max. 32 VLAN interfaces |
| Routing Table | Max. 32 static route entries Max. 1K routing table entries |
| Routing Protocols | IPv4 RIPv2 IPv4 OSPFv2 IPv6 OSPFv3 IPv4 hardware static routing IPv6 hardware static routing |
| Layer 2 Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable Port link capability control |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor Supports up to 5 sessions |
| VLAN | IEEE 802.1Q tag-based VLAN, IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP (static trunk) Supports 4 trunk groups with 10 ports per trunk |
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups |
| Bandwidth Control | Per port bandwidth control Ingress: 10Kbps~13000Mbps Egress: 10Kbps~13000Mbps |
| Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms @ 3 nodes Recovery time <50ms @ 16 nodes Supports mMajor ring and sub-ring |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet |
| Security Functions | |
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 512 entries |
| Security | Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries |
| AAA | RADIUS client TACACS+ client |
| Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
| Management Functions | |
| Basic Management Interfaces | Console;Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewer app |
| Event Management | Remote Syslog System log SMTP |
| ONVIF | ONVIF device discovery ONVIF device monitoring Floor Map |
| SNMP MIBs | RFC1213 MIB-II RFC 2863 IF-MIB RFC1643 Ethernet MIB RFC2863 Interface MIB RFC2665 Ether-Like MIB RFC2737 Entity MIB RFC2819 RMON MIB (Groups 1, 2, 3 and 9) RFC2618 RADIUS Client MIB RFC3411SNMP-Frameworks-MIB RFC 3621 Power Ethernet MIB IEEE802.1X PAE LLDP MAU-MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBASE-X IEEE 802.3ae 10Gb/s Ethernet IEEE802.3x flow control and back pressure IEEE802.3ad port trunk with LACP IEEE802.1D Spanning Tree Protocol IEEE802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE802.1p Class of Service IEEE802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Plus Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 2453 RIP v2 |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70degrees C Relative Humidity:5 ~ 95% (non-condensing) |
Datasheet
| Date | Version | Description | Download |
|---|---|---|---|
| 2021-12-10 | 1.0 | MGS-6320-8HP2X |
|
Quick Guide
| Date | Version | Description | Download |
|---|---|---|---|
| 2021-12-10 | 1.0 | Initial release. |
|
