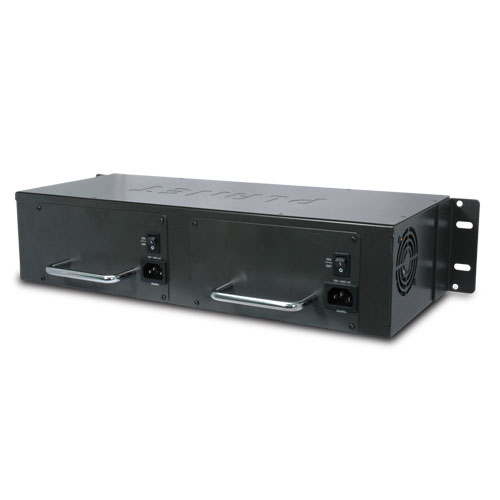

MC-1500R

MC-1500R

15-Slot Media Converter Chassis (AC Power)

O Planet MC-1500R faz parte dos grupos dos Conversor de Mídia, Chassis para Conversores de Mídia Não Gerenciáveis, Media Converter Chassis, Unmanaged Media Converter Chassis e dispõe dos seguintes recursos:

  • Redundant Power
  • plug play
  • kg
  • fan
  • Redundant Power
  • plug play
  • kg
  • fan
Hardware Specifications
Dimensions (W x D x H) 438 x 200 x 103 mm, 2.4U high
Slot 15 open slots (Slot Dimensions (W x D x H) 27 x 95 x 71 mm,)
LED Power 1, Power2, Fan1, Fan2
Fan 2 x Fan
Weight 4.3kg
Power Requirements 100~240V AC, 3.3A, 50-60Hz
Power Output Each slot 5V DC 1A
Power Consumption 10 watts / 34.1BTU (System only)
80 watts / 272BTU (Full loading)
Operating Environment 0~50 degrees C, 5%~90%RH
Storage Environment -20~70 degrees C, 5%~90%RH
Emission FCC Class A, CE mark

Datasheet

Date Version Description Download
2014-02-27 1.0 MC-1500R

User's Manual

Date Version Description Download
2014-01-31 1.31 Add French Rack Mount instruction.
2012-08-10 1.3 Add Rack Mount instruction.
2012-01-02 1.2 For MC-700 / MC-1500 series.
