LS250-PLUG

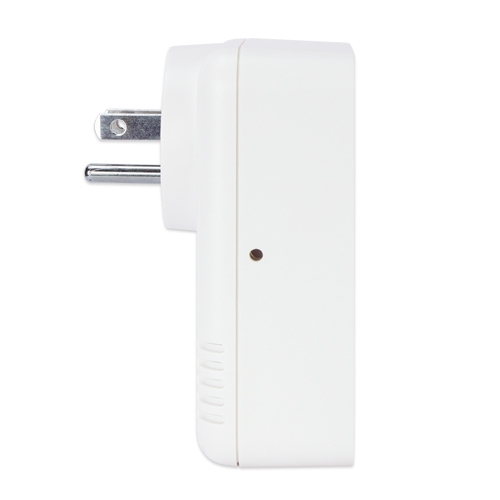

IP20 LoRaWAN Power Plug with Power Meter

Adicionar à cotação

O Planet LS250-PLUG faz parte dos grupos dos Ethernet Industrial, , LoRaWAN Sensor e dispõe dos seguintes recursos:

  • Power Meter
  • AC Power
[item_en]
Wireless Transmission
Technology LoRaWAN
Frequency LS250-PLUG-EU868
863–870 MHz

LS250-PLUG-US915
902–928 MHz
TX Power LS250-PLUG-EU868
EU868 16dbm
IN865 20dbm (optional)


LS250-PLUG-US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity -136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work Mode OTAA/ABP Class C
Data Interfaces
Operating Voltage 100 to 240VAC, 50/60Hz
Physical Characteristics
Dimensions (L x W x H) 95 x 58 x 42.5 mm
Weight 135g
Sensor Measurement Info Current
　Measurement Range: 100mA to 16A
Resistive load:
　16A/250VAC; P:4000VA
Inductive load (max.):
　8A/220VAC; P:1760VA (COSφ=0.4)
Rated Load:
　EU type: 16A/250VAC
　UK type: 13A/250VAC
　AU type: 10A/250VAC
　US type: 15A/125VAC

Electric motor (max.):
　1.5HP/240VAC
Ingress Protection IP20
Operating Temperature -20°C to 55°C
Relative Humidity <90% RH (non condensing)
Storage Temperature -40 °C ~ 85 °C
Standards Conformance
Regulatory Compliance CE RED, FCC PART 15B
Datasheet
Date Version Description Download
2025-02-14 1.2 LS250-PLUG
User's Manual
Date Version Description Download
2025-02-21 1.1 Initial release.
