LRP-822CS

LRP-822CS

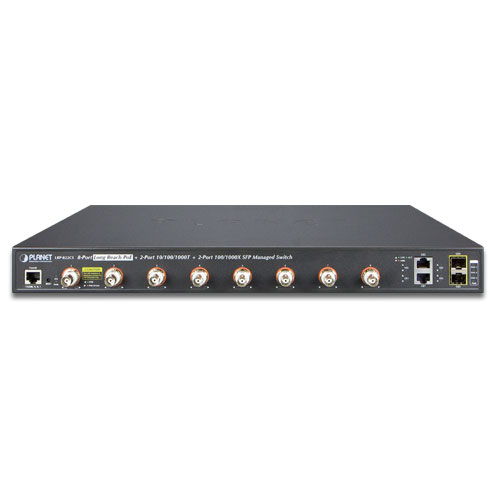

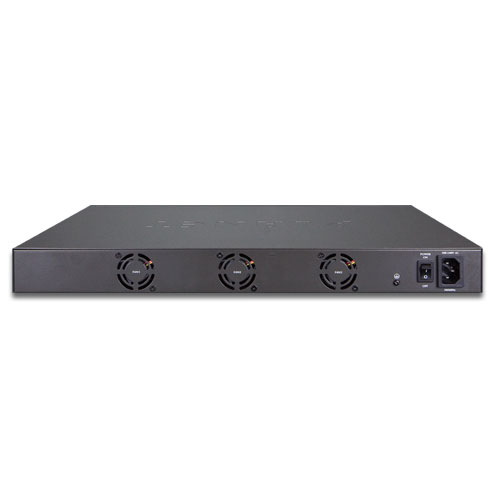

8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch

O Planet LRP-822CS faz parte dos grupos dos PoE, Soluções PoE de Longo Alcance, Power over Coaxial Managed Switch e dispõe dos seguintes recursos:

  • LRP BNC RJ45
  • IPv6/IPv4 ACLQoS
  • 1GMP Snooping
  • 802.1Q VLAN
  • mstp
  • PoC
LRP-822CSLRP-822CS
Hardware Specifications
Ethernet Interfaces ■ Copper:
• 2 x 10/100/1000BASE-T RJ45
• Auto-negotiation/ Auto-MDI/MDI-X

■ Fiber Optic:
• 2 x 100/1000BASE-X SFP slot
• Supports 100/1000Mbps dual mode and DDM

■ Jumbo Frame:
• 10Kbytes with GE1 to GE4
Long Reach PoE Interfaces ■ Connectivity:
• 8 x BNC female connectors
Long Reach PoE over coaxial PSE (Power Source Equipment)
- BNC center pole : DC+ / Hi
- BNC shield : DC - / Lo

■ Power Output:
• Per port 54V DC, 36 watts max.

■ Total Power Budget:
• 240 watts (max.) @ 25 degrees C
• 200 watts (max.) @ 50 degrees C

■ Cabling:
• Coaxial cable: 75 ohm
• RG-6/U cable (Recommended)

■ Maximum Distance:
• Max. 200m with PoE+ output (656ft.)
• Max. 400m with PoE output (1,312ft.)
• Max. 1200m without PoE output (3,937ft.)

■ Long Reach Ethernet Standard:
• IEEE 1901

■ Modulation Type:
• Wavelet-OFDM

■ Security:
• 128-bit AES encryption

■ Frequency Band:
• 2 ~ 28MHz

■ Performance:
RG-6/U
Distance
Data Rate*
LRP-101CE
PoE Output@25 degrees C*
TX**
RX**
200m
93.2Mbps
92.0Mbps
22.9W
400m
82.4Mpbs
73.6Mbps
18.7W
600m
77.2Mbps
62.3Mbps
15.0W
800m
60.2Mbps
54.3Mbps
10.4W
1000m
38.1Mbps
38.1Mbps
7.8W
1200m
25.6Mbps
25.0Mbps
---

* The actual data rate and PoE output vary on the quality of the copper wire and environmental factors. The performance result above is based on the testing via the RG-6/U coaxial cable.

** TX: LRP-822CS to LRP-101CE; RX: LRP-101CE to LRP-822CS.

■ Multiple Nodes:
Up to 4 LRP extenders within 1km RG-6/U coaxial cable*

* The actual extender nodes vary on the quality of the copper wire and environmental factors.

■ LRP Compatibility:
LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 9.6Gbps / non-blocking
Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED PWR, SYS, LNK, PoE-in-Use, 1000, LNK/ACK, Fan 1 Alert, Fan 2 Alert,
PoE PWR Alert
Dimensions (W x D x H) 440 x 300 x 44.5 mm, 1U height
Weight 3878g
Power Requirements AC 100~240V, 50/60Hz, auto-sensing
ESD Protection 6KV DC
Power Consumption 320 watts / 1091.8 BTU
Enclosure Metal
Layer 2 Functions
Port Mirroring TX / RX / both
Many-to-1 monitor
VLAN 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 4 groups of 4-port trunk
Spanning Tree Protocol STP / RSTP / MSTP
IGMP Snooping IGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups
MLD Snooping MLD (v1/v2) Snooping, up to 256 multicast groups
Access Control List IPv4/IPv6 IP-based ACL / MAC-based ACL
QoS 8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP field in IP packet
Traffic classification based, strict priority and WRR
Security IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS / TACACS+ user access authentication
IP-MAC port binding
MAC filter
Static MAC address
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management Interfaces Web browser / Telnet / SNMP v1, v2c
Firmware upgrade by HTTP / TFTP protocol through Ethernet network
Remote / Local Syslog
System log
LLDP protocol
SNTP
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 1901 Broadband Power Line
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
Environment
Operating Temperature:0 ~ 50 degrees C
Relative Humidity:5 ~ 95% (non-condensing)
Storage Temperature:-10 ~ 70 degrees C
Relative Humidity:5 ~ 95% (non-condensing)
