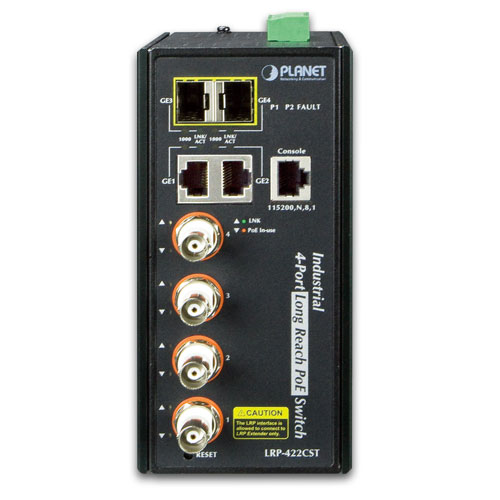

LRP-422CST

LRP-422CST

Industrial 4-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Managed Switch

O Planet LRP-422CST faz parte dos grupos dos PoE, Ethernet Industrial, Soluções PoE de Longo Alcance, PoE Industrial, PoE Industrial, Power over Coaxial Managed Switch, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, DIN-rail Managed Fast Ethernet PoE Switch e dispõe dos seguintes recursos:

  • -20degree~75degree
  • LRP BNC
  • PoC
  • IP-Code 30
  • 1GMP Snooping
  • 802.1Q VLAN
LRP-422CST
Hardware Specifications
Ethernet Interfaces ■ Copper
• 2 x 10/100/1000BASE-T RJ45
• Auto-negotiation/Auto-MDI/MDI-X

■ Fiber Optic
• 2 x 100/1000BASE-X SFP slot
• Supports 100/1000Mbps dual mode and DDM

■ Jumbo Frame
• 10Kbytes with GE1 to GE4
Long Reach PoE Interfaces ■ Connectivity
• 4 x BNC female connectors
• Long Reach PoE over coaxial PSE (Power Source Equipment)
 - BNC center pole : DC+/Hi
 - BNC shield : DC -/Lo

■ Power Output
• Per port 48~56V DC, 36 watts (max.)

■ Total Power Budget
• 150 watts (max.)

■ Cabling
• Coaxial cable: 75 ohm
• RG-6/U cable (Recommended)

■ Maximum Distance
• Max. 200m with PoE+ output (1,640ft.)
• Max. 400m with PoE output (2,624ft.)
• Max. 1200m without PoE output (3,937ft.)

■ Long Reach Ethernet Standard
• IEEE 1901

■ Modulation Type
• Wavelet-OFDM

■ Security
• 128-bit AES encryption

■ Frequency Band
• 2 ~ 28MHz

■ Performance
RG-6/U
Distance
Data Rate*
LRP-101CE
PoE Output@25 degrees C*
TX**
RX**
200m
93.9Mbps
93.5Mbps
21.7W
400m
90.4Mpbs
90.3Mbps
19.04W
600m
82.1Mbps
80Mbps
13.5W
800m
69.9Mbps
69.4Mbps
10.35W
1000m
52.2Mbps
50.2Mbps
8.01W
1200m
31.7Mbps
37.8Mbps
---

* The actual data rate and PoE output vary on the quality of the copper wire and environmental factors.The performance result above is based on the testing via the RG-6/U coaxial cable.

** TX: The LRP-422CST to the LRP-101CE
 RX: The LRP-101CE to the LRP-422CST

■ Multiple Nodes
• Up to 4 LRP extenders within 1km RG-6/U coaxial cable*

* The actual extender nodes vary on the quality of the copper wire and environmental factors.

■ LRP Compatibility
• LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 8.8Gbps/non-blocking
Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
EST Protection 6KV DC
ESD Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN-rail kit and wall-mount kit
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V AC
LED System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Red)
Per LRP Port:
LNK/ACT (Green)
PoE In-use (Orange)
Per Gigabit Port:
LNK/ACT (Green)
1000(Orange)
Dimensions (W x D x H) 107 x 72 x 152 mm
Weight 1,150g
Power Requirements 48 to 56V DC
Power Consumption 9.5 watts/32.42 BTU (System on)
165 watts/563.0 BTU (Full loading)
Layer 2 Functions
Port Mirroring TX/RX/both
Many-to-1 monitor
VLAN 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 4 trunk groups with 4 ports for each group
Spanning Tree Protocol STP/RSTP/MSTP
IGMP Snooping IGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups
MLD Snooping MLD (v1/v2) Snooping, up to 256 multicast groups
Access Control List IPv4/IPv6 IP-based ACL / MAC-based ACL
QoS 8 mapping IDs to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP field in IP packet
Traffic classification based, strict priority and WRR
Security IEEE 802.1X port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
IP-MAC port binding
MAC filter
Static MAC address
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management Interfaces Web browser/Telnet/SNMP v1, v2c
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Remote/Local Syslog
System log
LLDP protocol
SNTP
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 1901 Broadband Power Line
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
Environment
Operating Temperature: -20 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
