LRP-101U-KIT

LRP-101U-KIT

1-Port Long Reach PoE over UTP Extender Kit (LRP-101UH + LRP-101UE)

O Planet LRP-101U-KIT faz parte dos grupos dos PoE, Soluções PoE de Longo Alcance, Acessórios, Power over UTP Extender, Media Converters e dispõe dos seguintes recursos:

  • LRP RJ45
  • 30W PoE
  • 10m100m
  • -20degree~75degree
  • plug play
LRP-101U-KITLRP-101U-KITLRP-101U-KITLRP-101U-KIT
Hardware Specifications

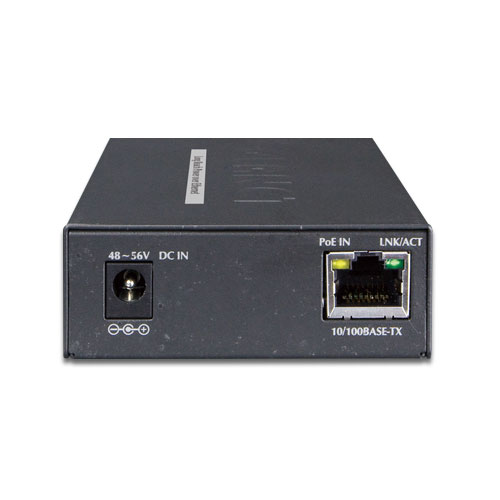

Ethernet Interface LRP-101UH
■ Copper: 10/100BASE-TX RJ45, auto-negotiation/ auto-MDI/MDI-X
■ Power over Ethernet Standard: IEEE 802.3at/af PoE PD
 (Powered Device)
■ PoE Input: Supports both mid-span and end-span PSE
 Input Range: 48~56V DC
■ Data Rate: 100/100Mbps
■ Cabling: Cat5e or above
■ Maximum Distance: 100m
■ Maximum Frame Size: 1522 bytes

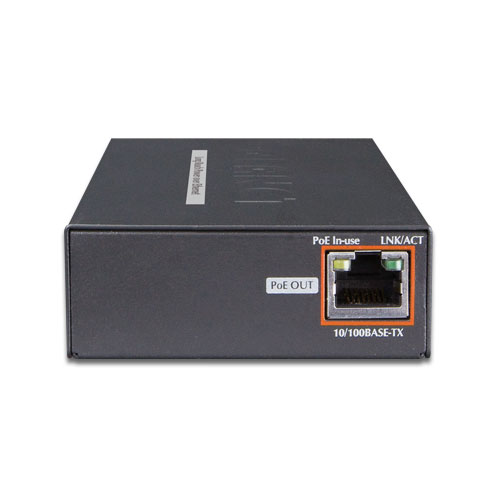

LRP-101UE
■ Copper: 10/100BASE-TX RJ45, auto-negotiation/ auto-MDI/MDI-X
■ Power over Ethernet Standard: IEEE 802.3at/af PoE PSE
 (Power Source Equipment)
■ PoE Output: 48~56V DC, 600mA max.
■ PoE Budget: Up to 25 watts
■ PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-)
■ Data Rate: 100/100Mbps
■ Cabling: Cat5e or above
■ Maximum Distance: 100m
■ Maximum Frame Size: 1522 bytes

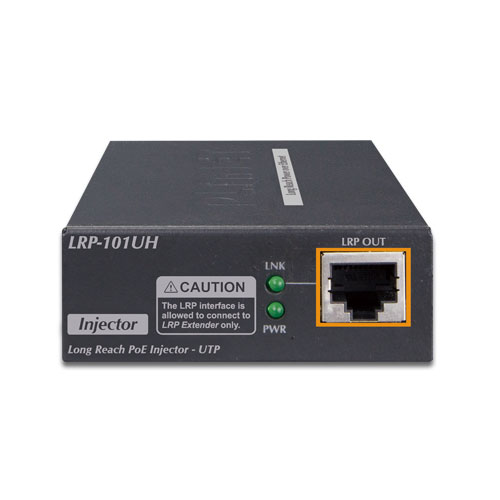

Long Reach PoE Interface LRP-101UH
■ Connectivity: 1 x RJ45 connector, Long Reach PoE over UTP PSE
■ Power Output: 41~56V DC
■ Power Pin assignment:
 RJ45 Pin 1, 3, 5, 7: VCC+
 RJ45 Pin 2, 4, 6, 8: VCC-
■ Cabling:
 Cat. 3, 4, 5, 5e UTP cable (100 meters, max.)
 EIA/TIA-568 100-ohm STP (100 meters, max.)
■ Maximum Distance:
 Max. 100m with PoE+ output (328ft.)
 Max. 500m with PoE output (1,640ft.)
 Max. 1000m without PoE output (3,280ft.)
■ Long Reach Ethernet Standard: IEEE 1901
■ Modulation Type: Wavelet-OFDM
■ Security: 128-bit AES encryption
■ Frequency Band: 2 ~ 28 MHz
■ Encryption: AES 128-bit

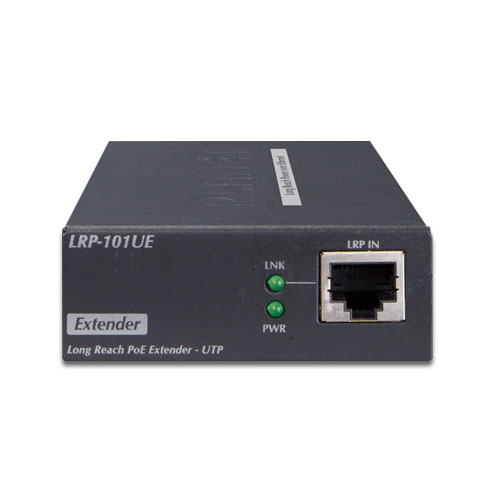

LRP-101UE
■ Connectivity: 1 x RJ45 connector, Long Reach PoE over UTP PD
■ Power Input: 37~56V DC*
■ Power Pin assignment:
 RJ45 Pin 1, 3, 5, 7: VCC+
 RJ45 Pin 2, 4, 6, 8: VCC-
■ Maximum Distance:
 Max. 100m with PoE+ output (328ft.)
 Max. 500m with PoE output (1,640ft.)
 Max. 1000m without PoE output (3,280ft.)
■ Long Reach Ethernet Standard: IEEE 1901
■ Modulation Type: Wavelet-OFDM
■ Security: 128-bit AES encryption
■ Frequency Band: 2 ~ 28 MHz
■ Encryption: AES 128-bit

Performance**
Distance
Data Rate*
(Upload / Download)
LRP-101UE 802.3af/at PoE Output Capability**
LRP-101UH
with 56V DC in
LRP-101UH
with 30W PoE+ in
100m
94 / 94Mbps
30W
19W
200m
82 / 82Mbps
30W
18W
300m
63 / 67Mbps
30W
17W
400m
44 / 48Mbps
22W
14W
500m
30 / 30Mbps
18W
12W
LED Indicators LRP-101UH
4 x LEDs
■ PWR
■ LRP LNK
■ PoE IN
■ LNK/ACT

LRP-101UE
4 x LEDs
■ PWR
■ LRP LNK
■ PoE-in-use
■ LNK/ACT
ESD Protection 4KV DC
EFT Protection LRP-101UH
■ 2KV

LRP-101UE
■ -
Enclosure Metal case
Installation Wall mount or DIN rail with optional kit
Dimensions (W x D x H) 94 x 70 x 26 mm
Weight LRP-101UH
193g

LRP-101UE
190g
Power Requirements LRP-101UH
■ RJ45 PoE Input: 802.3at/af 48~56V DC
■ DC Input: 48~56V DC

LRP-101UE
■ Power over RJ45 Input: 44~56V DC
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)
Regulation Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: -20~70 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Note
Note *1.Upload: LRP-101UE to LRP-101UH,data stream.
 Download: LRP-101UH to LRP-101UE,data stream.
2.As there are various resistance values in the category
 of 5/5e cable, the actual data rate will vary on the quality
 of the copper wire and environment factors.
**Depending on what the DC/PoE Power Input and the length of UTP cable
 are.
