LRP-101CE
LRP-101CE
1-Port Long Reach PoE over Coaxial Extender
O Planet LRP-101CE faz parte dos grupos dos PoE, Soluções PoE de Longo Alcance, Power over Coaxial Extender e dispõe dos seguintes recursos:
- LRP BNC
- 10m100m
- 802.3at 30-Watts
- plug play
| Hardware Specifications | |||||||||||||||||||||||||||

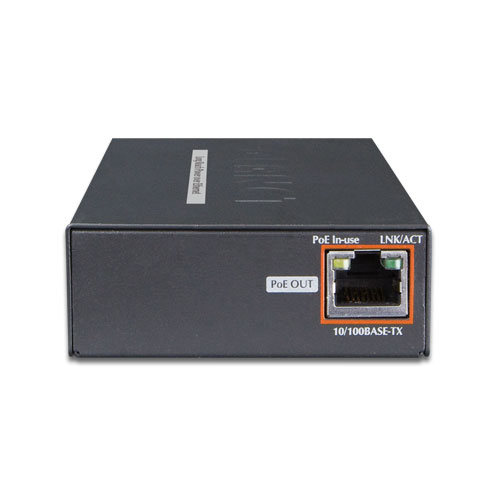

| Ethernet Interface | ■ Copper: • 10/100BASE-TX RJ45 • auto-negotiation/ auto-MDI/MDI-X ■ Power over Ethernet Standard: IEEE 802.3at/af PoE PSE (Power Source Equipment) ■ PoE Output: 56V DC, 600mA max. ■ PoE Budget: Up to 25 watts ■ PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-) ■ Data Rate: 100/100Mbps ■ Cabling: Cat5e or above ■ Maximum Distance: 100 meters ■ Maximum Frame Size: 1522bytes | ||||||||||||||||||||||||||

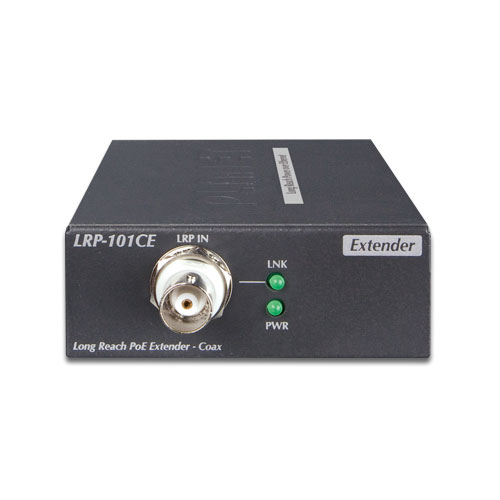

| Long Reach PoE Interface | ■ Connectivity: • 1 x BNC female • Long Reach PoE over coaxial PD (Powered Device) ■ Power Input: 37~56V DC* ■ Power Pin Assignment: • BNC center pole : DC+ / Hi • BNC shield : DC - / Lo ■ Cabling: • Coaxial cable: 75 ohm • RG-6/U cable, less than 12Ω/1,000ft. • RG-59/U cable, less than 30Ω/1,000ft. ■ Maximum Distance: • Max. 200m with PoE+ output (656ft.) • Max. 600m with PoE output (1,968ft.) • Max. 1,200m without PoE output (3,937ft.) ■ Long Reach Ethernet Standard: IEEE 1901 ■ Modulation Type: Wavelet-OFDM ■ Security: 128-bit AES encryption ■ Frequency Band: 2 ~ 28 MHz ■ Encryption: AES 128-bit ■ Performance**
■ Multiple Nodes: Supports up to 4 LRP extenders within 1km ■ LRP Compatibility: With power over coaxial input • LRP-101CH – 1-Port LRP Injector • LRP-822CS – 8-Port LRP over Coax Switch • LRP-1622CS – 16-Port LRP over Coax Switch | ||||||||||||||||||||||||||
| LED Indicators | 4 x LEDs ■ PWR ■ LRP LNK ■ PoE-in-use ■ LNK/ACT | ||||||||||||||||||||||||||
| ESD Protection | 4KV DC | ||||||||||||||||||||||||||
| Enclosure | Metal case | ||||||||||||||||||||||||||
| Installation | Wall mount or DIN rail with optional kit | ||||||||||||||||||||||||||
| Dimensions (W x D x H) | 94 x 70 x 26 mm | ||||||||||||||||||||||||||
| Weight | 375g | ||||||||||||||||||||||||||
| Power Requirements | BNC Power over Coaxial Input: 44~56V DC | ||||||||||||||||||||||||||
| Standards Conformance | |||||||||||||||||||||||||||
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet (802.3at Type 1) IEEE 802.3at Power over Ethernet Plus(802.3at Type 2) | ||||||||||||||||||||||||||
| Regulation Compliance | FCC Part 15 Class A, CE | ||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||
| Temperature | Operating: -20~70 degrees C Storage: -40~75 degrees C | ||||||||||||||||||||||||||
| Humidity | Operating: 5~95% (Non-condensing) Storage: 5~95% (Non-condensing) | ||||||||||||||||||||||||||
