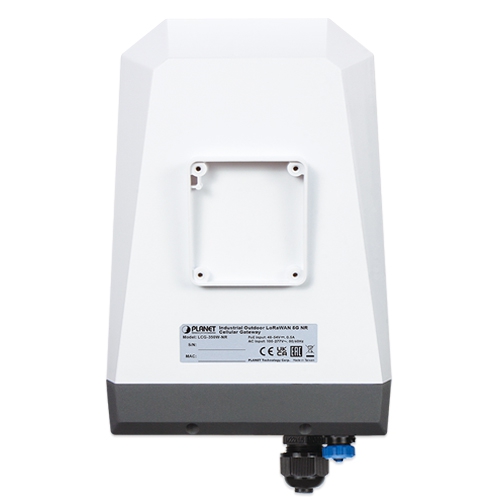

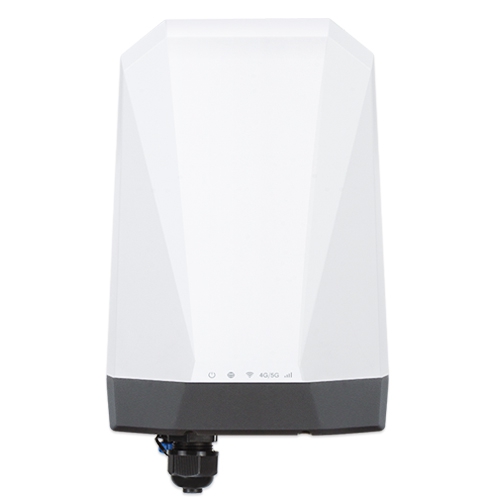

LCG-350W-NR

Industrial Outdoor LoRaWAN 5G NR Cellular Gateway

Adicionar à cotação

O Planet LCG-350W-NR faz parte dos grupos dos Ethernet Industrial, Gateway Industrial para Rede Celular e Wireless, , Visualizou contato, e dispõe dos seguintes recursos:

vpns

Hardware Specifications

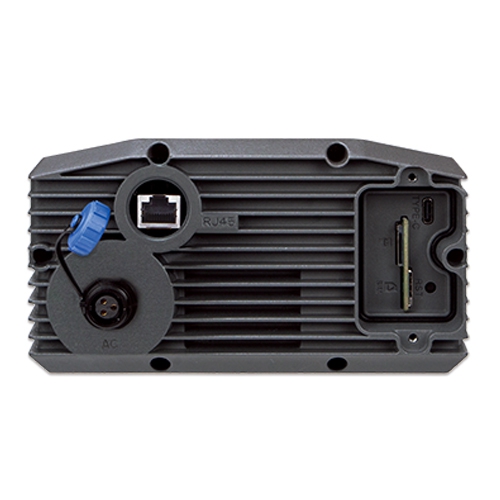

Ethernet	1 10/100BASE-T RJ-45 Ethernet
Cellular Antenna	2 x 3 dBi internal antennas
SIM Interface	1 Nano-SIM card slot
LoRa Antenna	2 dBi internal antennas with SMA connectors for LoRa
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Enclosure	IP67 rating
Installation	Wall hanging, pole mounting
LED Indicators	PWR (Blue) Internet (Blue) LoRa (Blue) 4G/5G (Blue) Wi-Fi (Blue)
Dimensions (W x D x H)	150 x 100 x 240 mm
Weight	1045g
Power Requirements	48V DC IN, 0.5A, IEEE 802.3at PoE+ or　100~277V AC IN, 0.5A
Power Consumption	Max. 2.4 watts/8.19 BTU (No Loading) Max. 3.3 watts/11.26 BTU (Full loading)
LoRaWAN
Frequency Band	Suffixes 868: supported EU868, IN865, RU864 915: supported US915, AU915, KR920, AS923
Receiving Sensitivity	-140dBm
Output Power	26±1dBm
Multi Band Support
5G Sub6 Band	LCG-350W-NR-EU: 　n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78 LCG-350W-NR-NA: 　n2/n5/n12/n14/n25/n30/n41/n48/n66/n70/n71/n77
LTE Band	LCG-350W-NR-EU: 　LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 　LTE TDD: B38/B40/B41/B42/B43 LCG-350W-NR-NA: 　LTE FDD: B2/B4/B5/B12/B13/B29/B30/B66/B71 　LTE TDD: B41/B46(LAA)/B48
WCDMA	LCG-350W-NR-EU: B1/B5/B8
GNSS	BDS/GPS/GLONASS/GALILEO/QZSS/SBAS
Data Transmission Throughput	3.4Gbps (DL)/350Mbps (UL) for 5G NR 2Gbps (DL)/150Mbps (UL) for LTE Cat20 42Mbps (DL)/5.76Mbps (UL) for HSPA+
Wireless
Standard	IEEE 802.11b/g/n 2.4GHz
Band Mode	2.4G Only
Frequency Range	2.4GHz FCC: 2.412~2.462GHz ETSI: 2.412GHz~2.472GHz
Operating Channels	2.4GHz FCC: 1~11 ETSI: 1~13
Data Transmission Rates	Transmit: 150 Mbps* for 2.4 GHz Receive: 150 Mbps* for 2.4 GHz *The estimated transmission distance is based on the theory. The actual distance may vary in different environments.
Channel Width	20/40MHz
Transmission Power	11b: 　26dBm ± 1dBm @11Mbps 11g: 　24dBm ± 1.5dBm @54Mbps 11g/n: 　20dBm ± 1.5dBm @MCS7, HT20 　17dBm@MCS7,HT40
Encryption Security	WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES) WPA3 personal 802.1x Authenticator
Wireless Advanced	Wi-Fi Multimedia (WMM) Auto channel selection Wireless output power management MAC address filtering
Max. SSID	4
Max. Wireless Clients	64 (32 is suggested, depending on usage)
Security Service
Firewall Security	Cybersecurity SSL (HTTPS) Inspection Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack
NAT	Port forwarding UPnP
Content Filtering	MAC filtering IP filtering Web filtering
Management	MQTT Broker
Networking
Operation Mode	Routing mode
Routing Protocol	Static Route, Dynamic Route (RIP), OSPF
Multicast	IGMP Proxy
Protocol	IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,
Advanced Functions
VPN Function	IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN)
VPN Tunnels	Max. 30
VPN Throughput	Max. 50Mbps
Encryption Methods	DES, 3DES, AES or AES-128/192/256 encryption
Authentication Methods	MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management Interfaces	Web browser SNMP v1, v2c PLANET Smart Discovery utility and NMS controller supported PLANET CloudViewerPro app
Secure Management Interfaces	SSHv2, TLSv1.2/1.3, SNMP v3
System Log	System Event Log
Others	Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics
Standards Conformance
Regulatory Compliance	CE
Electrostatic Discharge (ESD) Immunity Test	IEC 61000-4-2, Level 4
Surge Immunity Test	IEC 61000-4-5, Level 4
Electrical Fast Transient (EFT) Burst Immunity Test	IEC 61000-4-4, Level 4
Environment
Operating	Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing)
