IXT-900-2X1PD

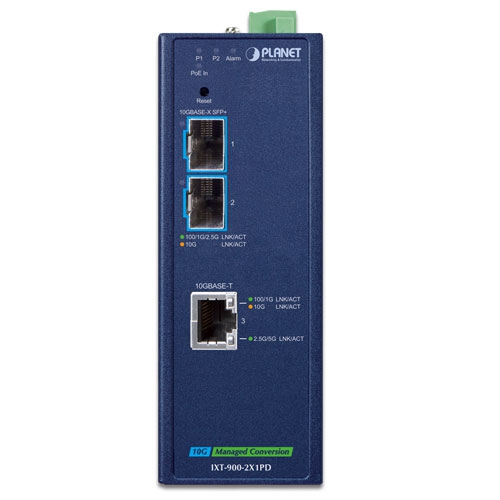

Industrial 2-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T PoE PD Managed Media Converter

Adicionar à cotação

O Planet IXT-900-2X1PD faz parte dos grupos dos Conversor de Mídia, Conversor de Mídia Industrial, DIN-rail 10G Ethernet Converter e dispõe dos seguintes recursos:

  • 10Gbps SFP+
  • 40 degree ~75 degree
  • PoE PD
[item_en][item_en]
Hardware Specifications
Copper Interface One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
PoE PD Yes
Fiber Interface Two 10G/2.5G/1G/100BASE-X SFP+ interfaces
Reset Button < 5 sec.: System reboot
> 5 sec.: Factory default

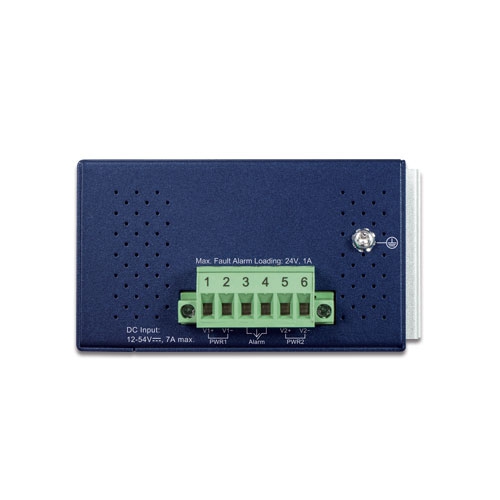

Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC
Enclosure IP40 metal case
ESD Protection 4KVDC Contact / 8KVDC Air
Installation Wall-mount and DIN-rail kit installation
Dimensions (W x D x H) 50 x 87 x 135mm
Weight 604g
Power Requirement 9~48V DC, 24V AC or PoE input
Power Consumption 3.9W/13.3 BTU (No Loading) / 9.5W/32.4 BTU (Full Loading)
LED Indicator System:
　PWR 1 (Green)
　PWR 2 (Green)
　Alarm (Red)　
Per 10GBASE-T RJ45 Port:
　1G/100 LINK/ACT (Green)
　2.5G/5G LINK/ACT (Green)
　10G LINK/ACT (Amber)
Per 10GBASE-X SFP+ Port:
　1G LINK/ACT (Green)
　2.5G LINK/ACT (Green)
　10G LINK/ACT (Amber)
Transmission Specifications
Processing Scheme Store and Forward
Fabric 60Gbps
Throughput (packet per second) 29.76Mpps@64bytes
Address Table 16K entries, automatic source address learning and aging
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Jumbo Frame 9K
Shared Buffer 12Mbits
Layer 2 Function
Port Configuration Port disable/enable
Auto-negotiation 100Mbps, 1/2.5/5/10Gbps full and half duplex mode selection
Flow control disable/enable
Port Status Display each port’s link status, speed, Auto-negotiation status, duplex mode, flow control status
VLAN IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Up to 256 VLAN groups, out of 4096 VLAN IDs
Bandwidth Control Per port bandwidth control
　Ingress: 16~10,000,000Kbps
　Egress: 16~10,000,000Kbps
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
Traffic classification:
　Cos/802.1p
　DSCP
　IP Precedence
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms
Security Function
Access Security Remote management protocols support: SSH, Telnet, HTTP and HTTPs
Protected ports
System Management
Basic Management Interfaces Telnet, Web browser, SNMP v1, v2c
Secure Management Interfaces SSHv2, TLSv1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS Controller
PLANET CloudViewerPro mobile app
Event Management Remote syslog
Local system log
SNMP trap
SNMP MIBs RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 3411 SNMP-Frameworks-MIB
LLDP
MAU-MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3u, 100BASE-TX/FX
IEEE 802.3ab, 1000BASE-T
IEEE 802.3bz, 2.5G/5GBASE-T
IEEE 802.3an, 10GBASE-T
IEEE 802.3z, 1000BASE-SX/LX
IEEE 802.3ae 10GBASE-SR/LR
IEEE 802.3x full-duplex flow control
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 2474 DSCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
ITU-T G.8032 ERPS Ring
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
