IXT-900-1X1T

Industrial 1-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T Managed Media Converter

Adicionar à cotação

O Planet IXT-900-1X1T faz parte dos grupos dos Conversor de Mídia, Conversor de Mídia Industrial, DIN-rail 10G Ethernet Converter e dispõe dos seguintes recursos:

10Gbps SFP+
40 degree ~75 degree
SNMP

Hardware Specifications
Copper Interface	1x 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
Fiber Interface	1x 10G/2.5G/1G/100BASE-X SFP+ interface
Reset Button	< 5 sec.: System reboot > 5 sec.: Factory default

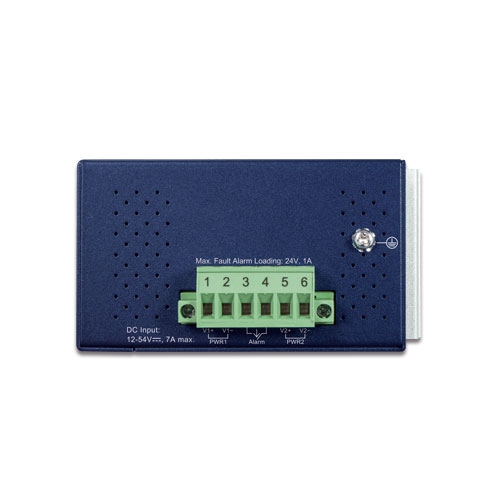

Connector	Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC
Enclosure	IP40 metal case
ESD Protection	4KVDC Contact / 8KVDC Air
Installation	Wall-mount and DIN-rail kit installation
Dimensions (W x D x H)	50 x 87 x 135mm
Weight	578g
Power Requirement	9~48V DC or 24V AC
Power Consumption	3.7W/12.6BTU (No Loading) / 10.7W/36.5BTU (Full Loading)

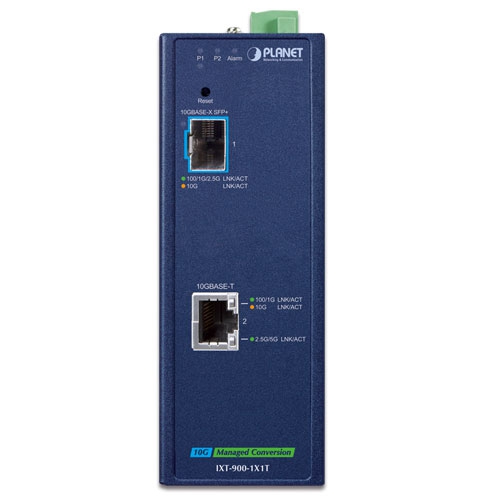

LED Indicator	System: 　PWR 1 (Green) 　PWR 2 (Green) 　Alarm (Red) Per 10GBASE-T RJ45 Port: 　1G/100 LINK/ACT (Green) 　2.5G/5G LINK/ACT (Green) 　10G LINK/ACT (Amber) Per 10GBASE-X SFP+ Port: 　100/1G LINK/ACT (Green) 　2.5G LINK/ACT (Green) 　10G LINK/ACT (Amber)
Transmission Specifications
Processing Scheme	Store and Forward
Fabric	40Gbps
Throughput (packet per second)	29.76Mpps@64bytes
Address Table	16K entries, automatic source address learning and aging
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Jumbo Frame	9K
Shared Buffer	12Mbits
Layer 2 Function
Port Configuration	Port disable/enable Auto-negotiation 100Mbps, 1/2.5/5/10Gbps full and half duplex mode selection Flow control disable/enable
Port Status	Display each port’s link status, speed, Auto-negotiation status, duplex mode, flow control status
VLAN	IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Up to 256 VLAN groups, out of 4096 VLAN IDs
Bandwidth Control	Per port bandwidth control Ingress: 16~10,000,000Kbps Egress: 16~10,000,000Kbps
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching Traffic classification: 　Cos/802.1p 　DSCP 　IP Precedence
Security Function
Access Security	Remote management protocols support: SSH, Telnet, HTTP and HTTPs
System Management
Basic Management Interfaces	Telnet, Web browser, SNMPv1, v2c
Secure Management Interfaces	SSHv2, TLSv1.2, SNMPv3
System Management	Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS Controller PLANET CloudViewerPro mobile app
Event Management	Remote syslog Local system log SNMP trap
SNMP MIBs	RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 3411 SNMP-Frameworks-MIB LLDP MAU-MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Standards Compliance	IEEE 802.3u, 100BASE-TX/FX IEEE 802.3ab, 1000BASE-T IEEE 802.3bz, 2.5G/5GBASE-T IEEE 802.3an, 10GBASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3ae 10GBASE-SR/LR IEEE 802.3x full-duplex flow control IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1ab LLDP RFC 768 UDP RFC 2474 DSCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP ITU-T G.8032 ERPS Ring
Environment
Operating	Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
