ITS-6326-16P2T-WV / ITS-6326-16P2TB-WV
ITS-6326-16P2T-WV / ITS-6326-16P2TB-WV
Industrial L3 16-Port 10/100/1000T 802.3at PoE M12 + 2-Port 10GBASE-T M12 Bypass Managed Ethernet Switch
O Planet ITS-6326-16P2T-WV / ITS-6326-16P2TB-WV faz parte dos grupos dos PoE, Ethernet Industrial, PoE Industrial, Industrial Ethernet - Norma EN50155, PoE Industrial, EN50155 L3 Ring Managed Gigabit PoE Switch, L3 Ring Managed Gigabit Ethernet Switch e dispõe dos seguintes recursos:
- PoE+
- RING
- di do

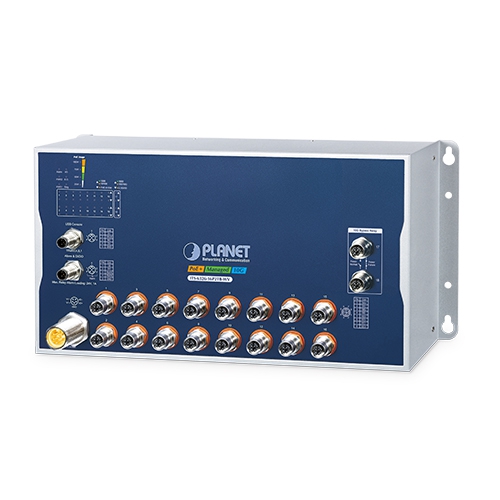

![[item_en]](images/box_ITS-6326-16P2TB-WV.jpg)

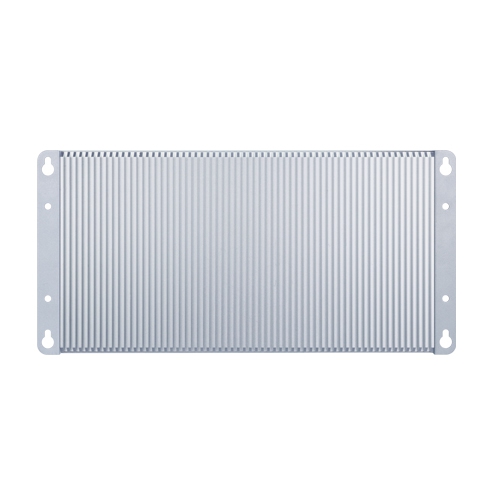

![[item_en]](images/box_ITS-6326-WV-Series-Enclosure-Back-Panel.jpg)
| Hardware Specifications | |
|---|---|
| Copper Ports,M12, 8-pin X-coded Female Connector | ITS-6326-16P2TB-WV： 16 x 10/100/1000BASE-T (Ports 1 to 16) ITS-6326-16P2T -WV： 16 x 10/100/1000BASE-T (Ports 1 to 16) 2 x 10GBASE-T (Ports 17 to 18) Supports 10G/ 5G/ 2.5G/ 1G/ 100Mbps data rate |
| Copper Ports,M12, 8-pin X-coded Female Connector with Bypass Relay | ITS-6326-16P2TB-WV： 2 x 10GBASE-T (Ports 17 to 18) Supports 10G/5G/2.5G/1G/ 100Mbps data rate |
| PoE Injector Port | 16 ports with 802.3at PoE+ injector function (Ports 1 to 16) |
| Console | USB Data to RS232 serial port (115200, 8, N, 1) 1 x M12 A-coded 5-pin male connector |
| Reset Button | < 5 sec.: System reboot > 5 sec.: Factory default |
| Alarm & DI & DO Ports | 1 x M12 A-coded 5-pin male connector for DI/DO and alarm interface Pin 1 for DI and Pin 2 for DO Pin 3/4 for Alarm Pin 5 for GND |
| Alarm | One relay output for port breakdown and power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) | One digital input (DI) Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max. |
| Digital Output (DO) | One digital output (DO) Open collector to 24V DC, 100mA max. |
| Power Connector | 1 x M23 A-coded 5-pin male connector |
| Number of Power Input | 2 |
| Power Input | 24 to 110 VDC |
| Operating Voltage | 16.8 to 137.5 VDC |
| Power Consumption/ Dissipation excludes PoE Load | Max. 32.04 watts / 109.33 BTU (System on) Max. 39.57 watts / 135.02 BTU (Full loading) |
| LED | System: PWR1 (Green) PWR2 (Green) Alarm (Red) Ring (Green) R.O. (Green) I/O (Red) 10/100/1000T M12 PoE+ Port: Up: 1000 LNK/ACT (Green) 10/100 LNK/ACT (Amber) Down: PoE-in-Use (Amber) 100/1G/2.5G/5G/10GBASE-T M12 Port: Up: 1000 LNK/ACT (Green) 100/10G LNK/ACT (Amber) Down: 2.5G/5G LNK/ACT (Amber) Usage: 25W, 50W, 75W, 100W (Amber) |
| Enclosure | IP40 aluminum case |
| Installation | Wall-mount design |
| Dimensions (W x D x H) | 400 x 74 x 195 mm |
| Weight | 4600 g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3at Standard - Per port 54V DC, max. 36 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Power Budget | 80 watts, Power Input <= 36V DC 100 watts, Power Input > 36V DC |
| PoE Management Functions | |
| Enhanced PoE Mode | Standard/ Legacy/ Force |
| PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
| Active PoE Device Live Detection | Yes |
| PoE Power Recycling | Yes, daily or predefined schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extend Mode | Yes, max. up to 250 meters |
| Switching Specifications | |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 72Gbps/non-blocking |
| Switch Throughput@64Bytes | 53.5Mpps @64Bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 32M bits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K Bytes |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries Max. 4K H/W routing table entries |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing IPv4 RIPv2 IPv4 OSPFv2 dynamic routing IPv6 OSPFv3 dynamic routing |
| Layer 2 Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX / RX / Both Many-to-1 monitor RMirror – Remote Switched Port Analyzer (Cisco RSPAN) Supports up to 5 sessions |
| VLAN | EEE 802.1Q tag-based VLAN, up to 255 VLAN groups IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP (GARP VLAN Registration Protocol) Up to 4K VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports Static Port Trucking, (20 ports/10 groups max.) Dynamic LACP-(20 ports/10 groups max.) |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU Guard |
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups IPv4 IGMP querier mode support IPv4 IGMP Snooping port filtering Multicast VLAN Registration |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 255 multicast groups IPv6 MLD querier mode support |
| Bandwidth Control | Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps |
| Ring | Support ERPS, complies with ITU-T G.8032v1 and v2 Recovery time < 50ms |
| Synchronization | IEEE 1588v2 PTP (Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock |
| Synchronization | IEEE 1588v2 PTP (Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet |
| Security Functions | |
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 512 entries |
| Security | Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries |
| AAA | RADIUS client TACACS+ client |
| Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
| Management Functions | |
| Basic Management Interfaces | Console/ Telnet/ Web browser/ SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
| System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol NTP PLANET Smart Discovery Utility PLANET NMS System, NMSViewerPro and CloudViewerPro App |
| Event Management | Remote Syslog System log SMTP |
| ONVIF | ONVIF device discovery ONVIF device monitoring Floor map |
| SNMP MIBs | RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP RFC 4292 IP Forward MIB RFC 4293 IP MIB |
| Standards Conformance | |
| Regulatory Compliance EMI & EMS | FCC Part 15 Class A Planning: CE：EN 55032, EN 55035 EN 61000-6-2, EN 61000-6-4 |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) Planning: IEC 61373, EN 50155 (Shock) IEC 61373, EN 50155 (Vibration) |
| Railway (Planning) | EN 50155, EN50121-4, IEC 60571 |
| Railway Fire Protection (Planning) | EN 45545-2 |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3an 10GBASE-T IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3at Power over Ethernet Plus IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management(CFM) IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 1588 PTPv2 RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring |
| Environment | |
| Operating | Temperature: -40 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
