ISW-500T

ISW-500T

Industrial 5-Port 10/100TX Compact Ethernet Switch

O Planet ISW-500T faz parte dos grupos dos Ethernet Industrial, Switch Industrial Não Gerenciável e dispõe dos seguintes recursos:

  • 10m100m
  • -40-degree-~75-degree
  • Redundant Power
  • IP-Code 30
  • compact-Size
ISW-500TISW-500T
Hardware Specifications

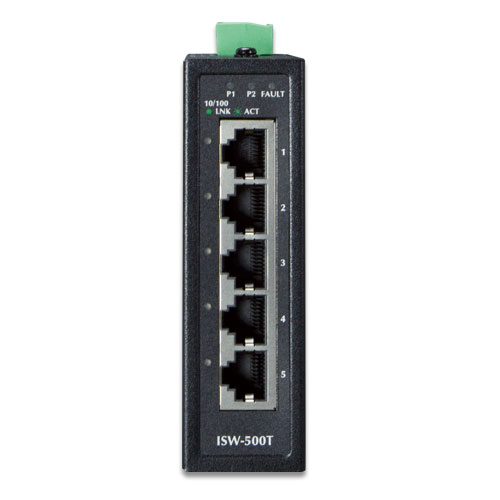

Copper Ports 5 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Switch Architecture Store-and-Forward
Switch Fabric 1Gbps (non-blocking)
Throughput (packet per second) 0.74Mpps@ 64 bytes
Address Table 1K entries, automatic source address learning and aging
Shared Data Buffer 448K bits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
ESD Protection 6KV DC
Enclosure IP30 metal case
Installation DIN rail kit and wall-mount kit

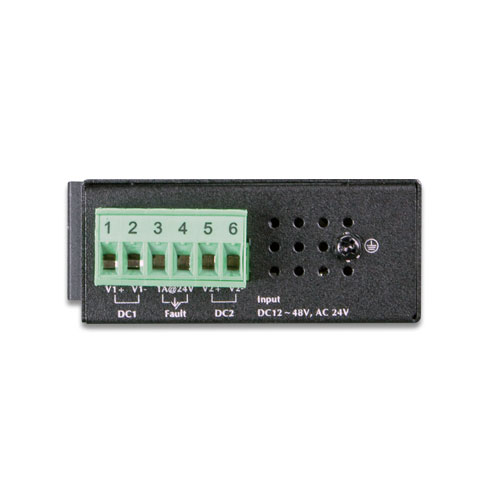

Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
LED Indicator System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm ( Red )
Per 10/100TX RJ45 Ports:
10/100 LNK/ACT (Green)
Dimensions (W x D x H) 70 x 104 x 30 mm
Weight 255g
Power Requirements Dual 12~48V DC, 24V AC
Power Consumption Max. 1.1 watts/3.77BTU (Power on without any connection)
Max. 2 watts/6.86BTU (Ethernet full loading)
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.1X Port Authentication Network Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

Datasheet

Date Version Description Download
2017-07-07 1.0 ISW-500T

User's Manual

Date Version Description Download
2017-06-15 1.0 Initial release.
