IPX-1100

Internet Telephony PBX system (100 SIP User Registrations)

Adicionar à cotação

O Planet IPX-1100 faz parte dos grupos dos Telefonia IP, PABX IP e dispõe dos seguintes recursos:

voip sip
IPv6 Management
caller id
PLANET DDNS
VPN Client Server
BLF

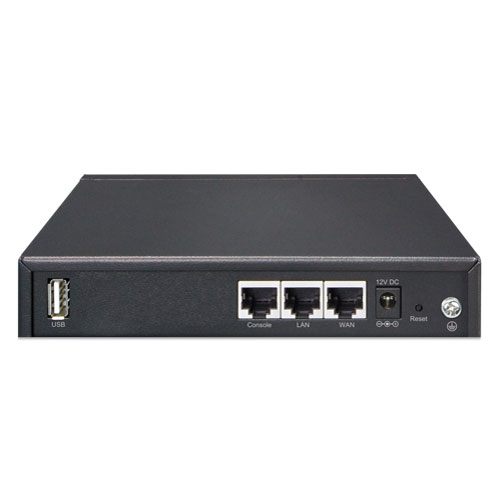

Hardware
WAN	1 x 10/100BASE-T RJ45 for WAN, connecting to broadband modem or a WAN router
LAN	1 x 10/100BASE-T RJ45 for LAN, connecting to a LAN switch
USB	1 Port for external storage device (up to 2T Bytes) File system format：FAT16, FAT32, EXTFAT, NTFS, EXT3, EXT4
Console Port	1 Port (Baud Rate: 115200)
Reset Key	Press and hold for more than 5 secs to initiate a system reset to default settings
Protocols and Standard
Standard	SIP 2.0 (RFC 3261), IAX2
Protocols	RFC 768 UDP RFC 793 TCP RFC 5246 TLS RFC 3711 SRTP RFC 826 ARP RFC 1034, 1035 DNS RFC 1631 NAT RFC 2068 HTTP RFC 2131 DHCP RFC 2516 PPPoE RFC 3261, RFC 3311, RFC 3515 RFC 3265, RFC 3892, RFC 3361 RFC 3842, RFC 3389, RFC 3489 RFC 3428, RFC 2327, RFC 2833 RFC 2976, RFC 3263 IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, NTP, SNTP, TFTP, SSH, HTTPS, LDAP
Audio Codecs	G.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, SPEEX, Opus, AMR and AMR-WB
Video Codec	H.261, H.263, H.263+, H.264 and VP8
Fax over IP	T.38 Fax (pass-through) Note: T.38 support is dependent on fax machine, SIP provider and network, transport resilience
Voice Processing	DTMF detection and generation RFC 4733, SIP info, in-band and Auto
Internet Sharing
Network Features	DDNS client (Planet DDNS and easy DDNS) DHCP server/SNMP v1/v2 IEEE 802.1Q VLAN IP assignment (DHCP/Static) IPv4/IPv6 Manual configuration of static route table Troubleshooting (ping and traceroute) VPN server and VPN client
Security Features	Mitigates SIP Register DoS Attacks Prevents Abort Invite DoS Attacks Prevents SSH Login DoS Attacks Firewall and enhances HTTPS connection
Features
PBX Features	SIP Register with UDP/TCP/TLS/SRTP Phone Auto-Provision One Touch Recording Mobility Extension Black List BLF (Busy Lamp Field) CDR (Call Detailed Record) Conference Room DID (Direct Inward Dialing Number) DISA (Direct Inward System Access) DNIS (Dialed Number Identification Service) SRTP (Secure Realtime Transport Protocol) DND (Do Not Disturb) FOP (Flash Operation Panel) Status Monitoring IVR (Interactive Voice Responses) Follow Me, Call Spy and PIN Set Distinctive Ringtone Multi-language System Prompt Multiple Language of GUI Phone Book, Speed Dial LDAP Server for phonebook Record Files Download Ring Group, SIP Trunk Skype for SIP, Smart DID, System Log T.38 fax (pass-through), voicemail and voicemail to e-mail Time-based Rule PBX log, web access log and PBX debug log
Call Features	Call Back, Call Forward, Call Group Call Hold, Call Paging and Intercom Call Park, Call Pickup, Call Queue Call Record, Call Route, Blind Transfer Attend Transfer, Call Waiting Caller ID, Dial by Name Customized IVR, On-hold Music, Transfer 30 Conference attendees One-on-One Video Call
System Capacity
System Capacity	50 simultaneous calls Up to 100 IP phone registers/extensions Recording and Voicemail: 400 hours
Network and Configuration
Access Mode	Static IP, DHCP

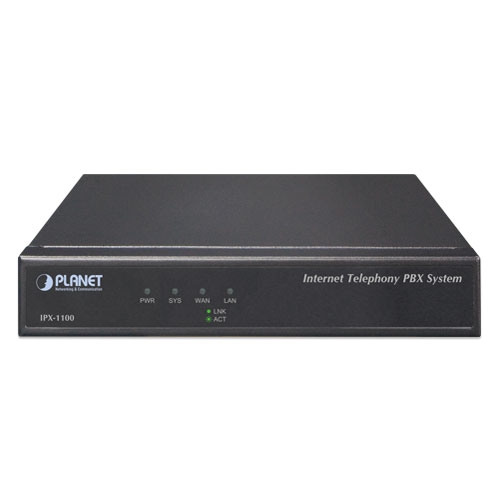

LED Indications	PWR: 1, LNK (Green) SYS: 1, LNK/ACT (Green) WAN: 1, LNK/ACT (Green) LAN: 1, LNK/ACT (Green)
Dimensions (W x D x H)	167.6 x 115 x 28.8 mm
Operating Environment	0~40 degrees C, 5~95% humidity
Power Requirements	DC 12V, 1A
EMC/EMI	CE, FCC Class B, RoHS

Datasheet

Date	Version	Description	Download
2024-01-19	1.0	IPX-1100

Quick Guide

Date	Version	Description	Download
2024-05-17	1.1	Release for PSTI version.
2023-12-22	1.0	Initial release.

User's Manual

Date	Version	Description	Download
2024-02-17	1.0	Initial release.
