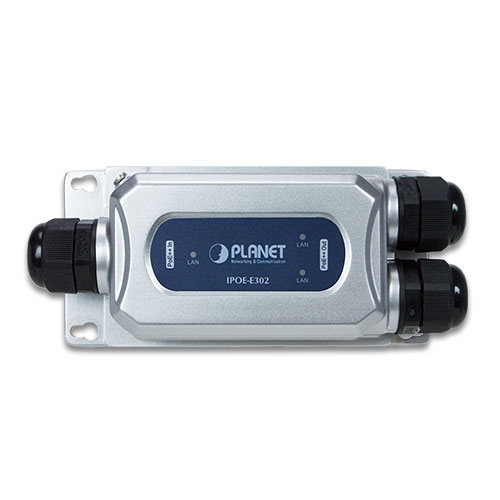

IPOE-E302

Industrial IP67 1-Port 802.3bt PoE++ to 2-Port 802.3at/bt PoE++ Extender

Adicionar à cotação

O Planet IPOE-E302 faz parte dos grupos dos PoE, Ethernet Industrial, Extensores PoE, PoE Industrial, PoE Industrial, Acessórios, 802.3bt Ultra PoE Extender, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, PoE Injector/Splitter/Extender, PoE Accessories e dispõe dos seguintes recursos:

  • 40 degree ~75 degree
IPOE-E302IPOE-E302IPOE-E302IPOE-E302IPOE-E302
Hardware Specifications
Network Connector PoE in Port
-1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ “Data + DC” in
-Auto MDI/MDI-X, auto-negotiation RJ45 connector

PoE out Port
-2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/bt PoE++ “Data + DC” out
-Auto MDI/MDI-X, auto-negotiation RJ45 connector
Switch Architecture Store-and-Forward switch architecture
MAC Address Table 2K MAC address table with auto learning function
Data Buffer 1Mbit
Switch Fabric 6Gbps
Switch Throughput 4.46Mpps @ 64Bytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 9Kbytes
ESD Protection Air 8KV DC
Contact 6KV DC
Surge Protection 6KV
Enclosure IP67-rated and IK10 aluminum case
Installation Wall-mount ear
LED Display Link/ACT LED x 3
Dimensions (W x D x H) 150 x 43.8 x 72.94 mm
169.85 x 43.8 x 72.94 mm, with cable gland
Weight 339g
372g (with three waterproof cable glands)
Power Consumption 97 watts/331.6BTU (Full loading with PoE function)
Power over Ethernet
PoE Standard PoE in Port
- IEEE 802.3bt PoE++ Type 4 standard PD
- PoH (Power over HDBASE-T)
- IEEE 802.3at PoE+ end-span/mid-span PD

Per PoE out Port
IEEE 802.3bt PoE++ Type 3 PSE
Backward compatible with IEEE 802.3at PoE+ PSE
PoE Power PoE in Port
50~57V DC, max. 95 watts

Per PoE out Port
48~55V DC, max. 60 watts
Power Pin Assignment PoE in Port
1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) or 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)

Per PoE out Port
1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) or 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
PoE Power Budget 65 watts (max.) @ IEEE 802.3bt PoE++
30 watts (max.) @ IEEE 802.3at PoE+ input
IEEE 802.3af PoE input not supported
Standards Conformance
Regulatory Compliance FCC Part 15 Class A
CE
Stability Testing IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Datasheet
Date Version Description Download
2021-05-07 2.0 IPOE-E302
User's Manual
Date Version Description Download
2020-11-23 2.0 Initial release for IPOE-E302(V2)
