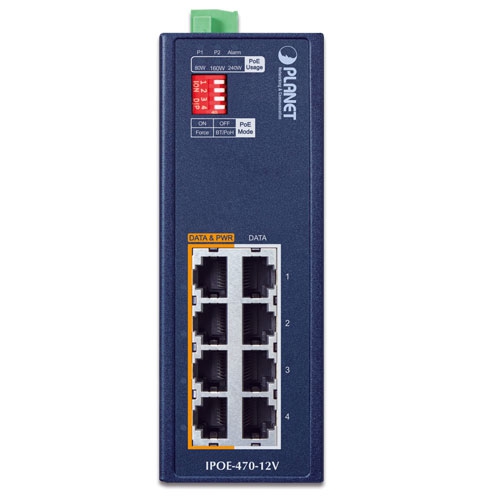

IPOE-470-12V

Industrial 4-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/ 12V Booster

Adicionar à cotação

O Planet IPOE-470-12V faz parte dos grupos dos PoE, Ethernet Industrial, Injetor PoE Rack 19", Injetores e SpliTTers PoE, Sistema PoE para Painel Solar, Dispositivos Alimentados por PoE, PoE Industrial, PoE Industrial, Sistema PoE para Painel Solar, 802.3bt Ultra PoE Injector Hub, PoE Injector/Splitter/Extender, 802.3bt PoE++ Injector Hub, Solar and Battery Powered PoE Injector e dispõe dos seguintes recursos:

802.3bt PSE
DIN Rail
IP Code 30
40 degree ~75 degree

Hardware Specifications
Copper Ports	4-pair 10/100/1000/2500BASE-T RJ45 　Data input (Ports 1 to 4) 　Data + PoE output (Ports 1 to 4)

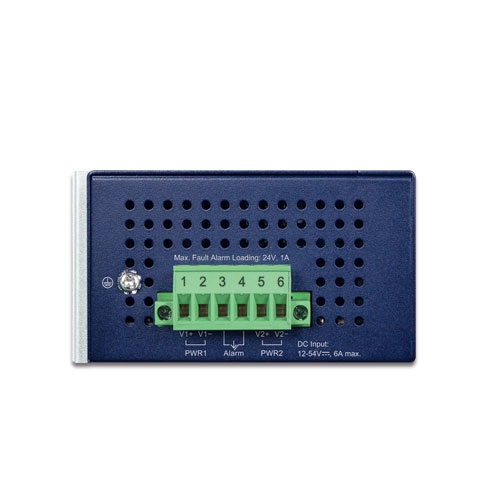

Connector	Removable 6-pin terminal block Pins 1 and 2 for Power 1 Pins 5 and 6 for Power 2 Pins 3 and 4 for fault alarm
Data Rate	10/100/1000/2500Mbps
Power Requirements	12~54V DC, redundant power with reverse polarity protection
Power Consumption (Ethernet Full Loading)	System on 　12V DC: 3.21 watts/10.9BTU 　54V DC: 4.75 watts/16.2BTU Full loading 　12V DC: 73 watts/248.9BTU 　54V DC: 260.3 watts/887.6BTU
DIP Switch	Per PoE port 　OFF: BT– 802.3bt PoE++ 95W PoE output 　ON: Legacy - 60w Ultra PoE output
Dimensions	50 x 87.8 x 135 mm (W x D x H)
Weight	688g
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount kit
LED Indicator	System: 　Power 1 (Green) 　Power 2 (Green) 　Alarm (Red) PoE Usage: 　80W/160W/240W (Amber) 802.3bt PoE++ Port: 　PoE-in-use x 1 (Amber)
ESD Protection	6KV
Surge Protection	6KV
Network Cable	Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 1000BASE-T: 4-pair UTP Cat. 5e, 6
Power over Ethernet
PoE Standard	IEEE 802.3bt PoE++, 4-pair type 4 PSE Backward compatible with IEEE 802.3at PoE+ PSE
PoE Power Supply Type	802.3bt PoE++/Legacy End-span + Mid-span 802.3at PoE+ End-span/Mid-span
Power Pin Assignment	Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/Legacy: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power Output	Max. 95 watts to 802.3bt PoE++ PD Max. 60 watts to Legacy PD Max. 36 watts to 802.3at PoE+ PD
PoE Power Budget (max.)	60W@12V-23V DC input 120W@24V-47V DC input 240W@48-54V DC input
Number of devices that can be powered	4
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)

Datasheet

Date	Version	Description	Download
2024-08-16	2.0	IPOE-470-12V

User's Manual

Date	Version	Description	Download
2024-08-16	2.1	Release for hardware version 2.0.
