IPOE-176S

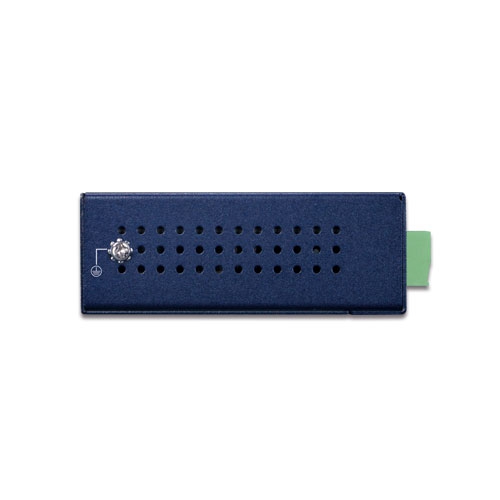

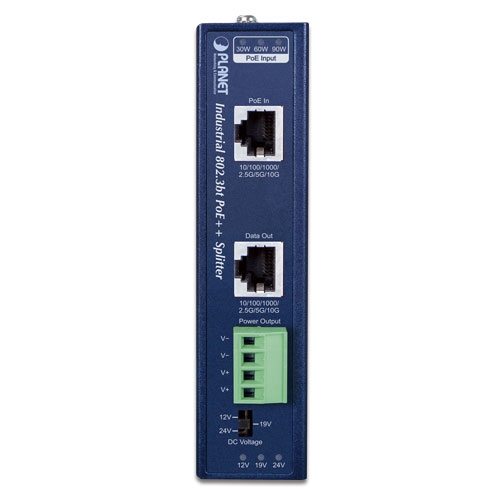

Industrial Single-Port 10Gbps 802.3bt PoE++ Splitter

Adicionar à cotação

O Planet IPOE-176S faz parte dos grupos dos PoE, Ethernet Industrial, Injetores e SpliTTers PoE, PoE Industrial, PoE Industrial, 802.3bt Ultra PoE Splitter, PoE Injector/Splitter/Extender e dispõe dos seguintes recursos:

12V19V24V DC Power Output
40 degree ~75 degree
Metal Housing
IP Code 30

Hardware Specifications
Interface	PoE Input Port：　1 10M/100M/1G/2.5G/5G/10G BASE-T RJ45 Data Output Port：　1 10M/100M/1G/2.5G/5G/10G BASE -T RJ45 DC Out Plug Connector：　1 removable 4-pin terminal block DIP Switch：　12V/19V/24V DC output
LED Indicators	PoE Input: 　30W (Green), 60W (Green), 90W (Green) DC Voltage: 　12V (Green), 19V (Green), 24V (Green)
Data Rate	10M/100M/1G/2.5G/5G/10Gbps
Dimensions (W x D x H)	32 x 87 x 135 mm
Weight	433g
Installation	DIN-rail/wall mountable
ESD Protection	4KV
EFT Protection	4KV
Enclosure	IP30 metal case
Power Requirements	4-pair 802.3at PoE+ and 802.3bt PoE++ PoE DC 48 ~ 54V
Power Consumption	System on with PoE input 　12V DC: 5.5 watts 　19V DC: 6.8 watts 　24V DC: 7.6 watts Full loading with maximum　　12V DC: 98.3 watts 　19V DC: 98.5 watts 　24V DC: 97.9 watts
Power Output	802.3 bt type 4 PoE++ input 　12V DC, 6.8A (max.) 　19V DC, 4.3A (max.) 　24V DC, 3.3A (max.)
Network Cable	Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5G: 4-pair UTP Cat 6/Cat 6A/Cat 7 10G:4-pair UTP Cat 6A/Cat 7
Power over Ethernet
PoE Standard	802.3 bt PoE++ 4-pair 802.3at PoE+
Power Output	DC 12V/19V/24V by DIP switch control
PoE Power Supply Type	End-span + Mid-span End-span Mid-span
Power Pin Assignment	1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Remote Power Distance	1G/2.5G speed: 100M (max.) 5G/10G speed: 80M (max.)(cat6A/cat7)
Standards Conformance
Standards Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5G/10GBASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet (Type 4)
Regulatory Compliance	FCC Part 15 Class A, CE
Environment
Operating Temperature	-40~ 75 degrees C
Storage Temperature	-40~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)
