IPOE-171-60W

Industrial Single-Port Multi-Gigabit 802.3bt PoE++ Injector (60 Watts, -40~75 degrees C, 48~54VDC)

Adicionar à cotação

O Planet IPOE-171-60W faz parte dos grupos dos PoE, Ethernet Industrial, Injetores e SpliTTers PoE, PoE Industrial, PoE Industrial, Acessórios, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, PoE Injector/Splitter/Extender, PoE Accessories e dispõe dos seguintes recursos:

  • 60W PoE
  • 40 degree ~75 degree
  • Redundant Power
  • PoE Usage
  • IP Code 30
IPOE-171-60WIPOE-171-60W
Hardware Specifications
Interface Input Port
1 x RJ45 STP
Data In

Output Port
1 x RJ45 STP
PoE (Data + Power) Out

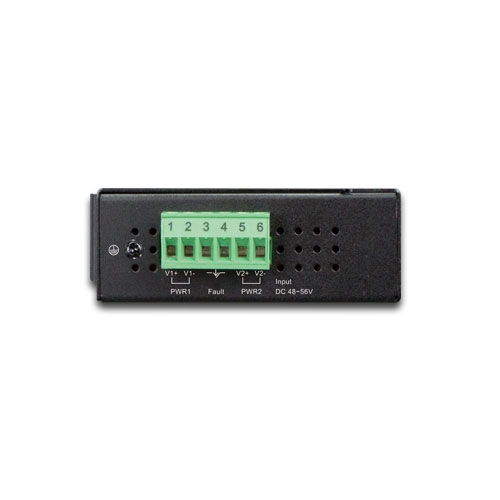

Input power terminal block
1
Network Cable Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
LED Indicator System: Power 1 (Green), Power 2 (Green), Fault (Red)
PoE Port: PoE-in-Use x 1 (Orange)
PoE Usage: PoE Usage x 3 (Orange)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 135 x 87.8 x 32 mm
Weight 430g
Power Requirements DC 48~56V, 2A max.
Unit Output Voltage DC 45~53V
Power Consumption 75 watts max.
No. of devices that can be powered 1
Installation DIN-rail kit or wall-mount ear
Alarm Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V
Enclosure IP30 slim-type metal case
Power over Ethernet
PoE Standard IEEE 802.3af/at/bt Ultra PoE PSE
PoE Power Output Budget DC 50~54V / 60-watt PoE via 4-pair
DC 48~49V / 30-watt PoE via 2-pair
PoE Power Output Max. 60W@1m cable
Max. 51W@100m cable
PoE Power Supply Type End-span + Mid-span
Power Pin Assignment Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
PoE mode Standard:
To provide power to the PD device that follows the IEEE 802.3af/at/bt standard.

Legacy:
To provide power to the PD device that does not fully follow the IEEE 802.3af/at/bt standard.
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bt 4-pair Power over Ethernet Type 3
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Operating Humidity 5 ~ 90%, relative humidity, non-condensing
Storage Humidity 5 ~ 90%, relative humidity, non-condensing
Standard Accessories
Package Contents IPOE-171-60W
User's manual
Wall-mount kit
Dust cap
Datasheet
Date Version Description Download
2018-06-08 1.0 IPOE-171-60W
User's Manual
Date Version Description Download
2018-07-19 2.0 Modify the DC input range of IPOE-171-95W.
2018-05-02 1.0 Initial Release
