IPM-8221

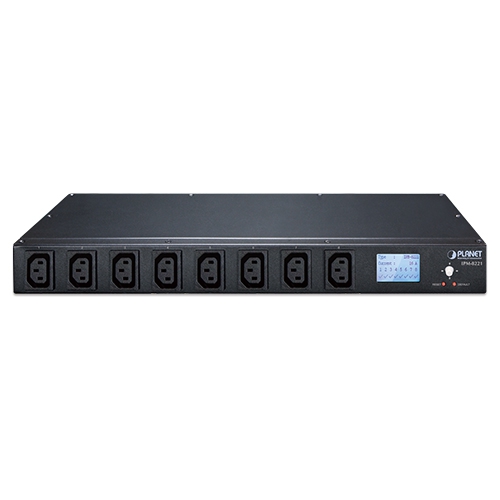

IP-based 8-port Switched Power Manager with 2 Cascaded Ports

Adicionar à cotação

O Planet IPM-8221 faz parte dos grupos dos Periféricos de Rede, IP Power Manager, Switched PDU e dispõe dos seguintes recursos:

SNMP
Web Browser
Power Switch
stackable
Statistic
Temperature

Hardware Specifications

Outlet Power Port

Inlet Power Port

Network Connector

1 RJ45 port for 10/100 BASE-TX

Sensor Port

1 x RJ11-type, 6P

Cascade Port

2 x RJ45-type

Button

1 x Default Button
1 x Reset Button
1 x Interface Selection Button

LED

State of the socket / Power：LCD Displays
10/100M：1 (Green/Orange)

LCD Panel

Displays current, voltage, energy, network and environment information

Housing

Metal

Dimensions (W x D x H)

442 x 159 x 44.5mm

Weight

1.84kg

Installation

1U rack-mountable, desktop

Breaker

1 x 16A

Power Distribution

Power

Inlet

Outlet

Voltage

100~240V

Frequency

50~60Hz

Connection

1 x IEC320 C20

8 x IEC320 C13

Maximum Current

16A

Maximum Line Current

－

10A

Management

User Account

Operator/Visitor

Management / Monitor Utility

Web browser, SNMP
PLANET Universal Network Management System
PLANET Smart Discovery Utility

Security

IP filter

Standards Conformance

Computer Interface

IEEE 802.3 10BASE-T
IEEE 802.3u 10/100BASE-TX

Regulatory Compliance

CE, FCC

Environments

Operating Temperature

0 ~ 60 degrees C

Operating Humidity

0 ~ 90%

Datasheet

Date	Version	Description	Download
2024-01-26	1.0	IPM-8221

Quick Guide

Date	Version	Description	Download
2023-12-29	1.0	Initial release.

User's Manual

Date	Version	Description	Download
2024-02-01	1.0	Initial release.
