IHD-210PT

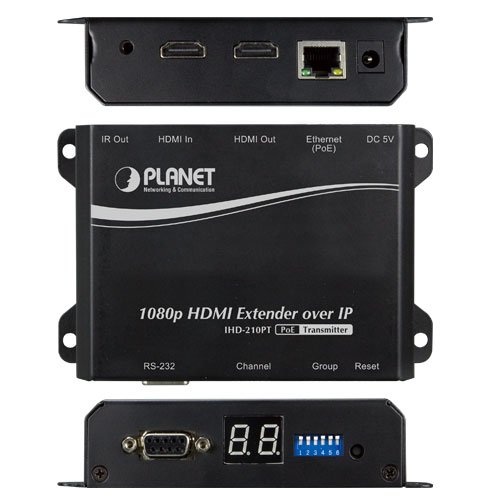

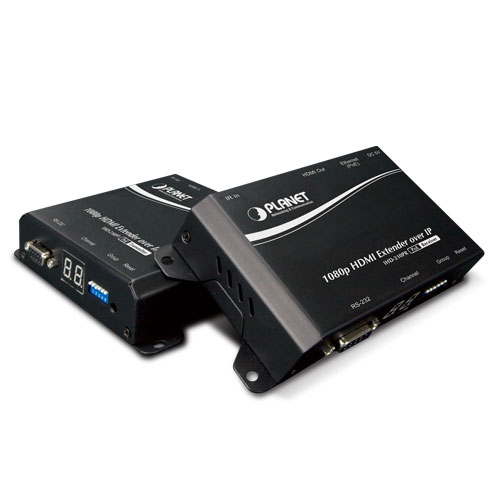

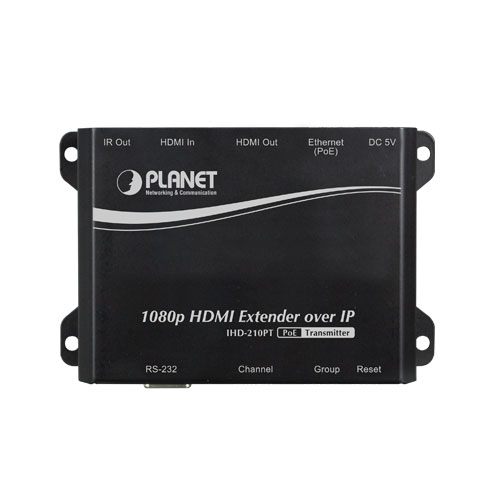

High Definition HDMI Extender Transmitter over IP with PoE

Adicionar à cotação

O Planet IHD-210PT faz parte dos grupos dos Periféricos de Rede, IP HDMI, Digital Signage, 1080p Full HD e dispõe dos seguintes recursos:

  • 1080 FULL HD
  • 64 Channels
  • HDCP
  • IR Extension
  • igmp
  • poe
IHD-210PTIHD-210PTIHD-210PTIHD-210PTIHD-210PT
Hardware Specifications

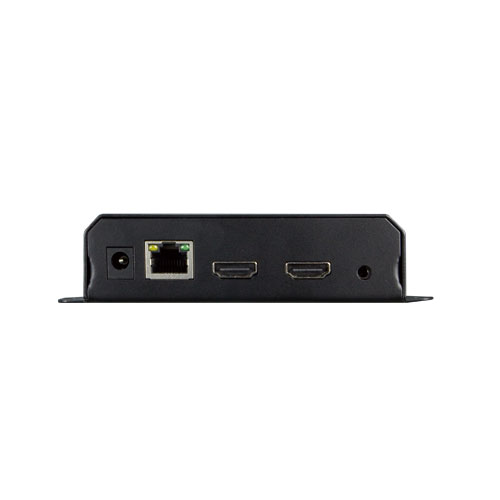

Network Interface RJ45 port (10/100BASE-TX Ethernet) x 1

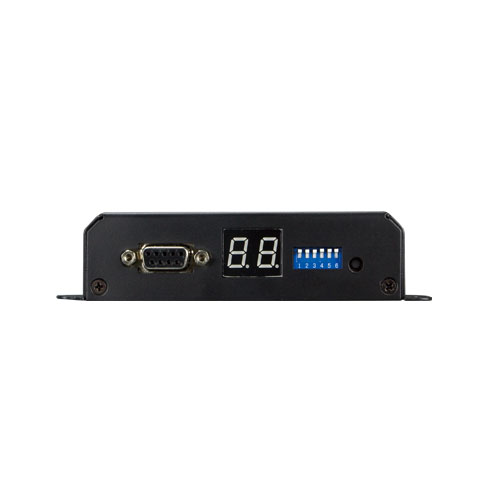

Serial Interface DB-9 female connector for RS232 x 1
LED Numerical LED display
Buttons Reset button x 1
Video In Interface HDMI A Type female connector x 1
Video Out Interface HDMI A Type female connector x 1
IR 3.5mm jack for IR emitter cable
Channel Switching DIP (64 channels)
Power Supply IEEE 802.3af/at PoE+
5V DC, 2A
Power Consumption 7W (each unit)
Dimensions (W x D x H) 130 x 82 x 30.25 mm
Weight 290 g
Video and Audio
Video In Resolution 1080p @ 60/50 Hz
1080p @30/25 Hz
1080i @ 60/50 Hz
720p @ 60/50 Hz
480p @ 60/50 Hz
480i @ 60/50 Hz
Video Out Resolution 1080p @30/25 Hz
1080i @ 60/50 Hz
720p @ 60/50 Hz
480p @ 60/50 Hz
480i @ 60/50 Hz
Compression H.264 format for video encoder/decoder.
MPEG 1 Layer II format for audio encoder/decoder
Audio 2-ch uncompressed audio
General
Management Interfaces Search Tool
System Expandability (max.) 64 groups
Resolution Identification EDID (Extended Display Identification Data)
Security HDCP compliant
Media Stream Bandwidth (max.) 15Mbps
Maximum Distance (between unit and PoE switch) 100 meters (330 feet) over CAT5e/6 cable
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af/at PoE+
HDMI Interface Compliance HDMI 1.4a
Protocol TCP, UDP, RTSP, RTP, DHCP, IGMP Snooping, Multicast, IPv4
Cabling Cat5e/6 UTP cable
Environment Specifications
Operating Temperature: 0~55 degrees C
Relative Humidity: 5~90% (non-condensing)
Storage Temperature: -10~60 degrees C
Relative Humidity: 5~90% (non-condensing)
Emission FCC, CE
Standard Accessories
Packet Contents Media Extender x 1
Quick Installation Guide x 1
IR Emitter Cable x 1
Datasheet
Date Version Description Download
2017-03-30 1.0 IHD-210PT
Firmware
Date Version Description Download
2017-03-28 4.0.0.0.20170222 Initial Release
Quick Guide
Date Version Description Download
2017-01-20 1.0 Initial Release
User's Manual
Date Version Description Download
2017-04-26 1.0 Initial Release
Utility
Date Version Description Download
2017-03-28 1.0.0.1 Initial Release
