IGUP-2205AT

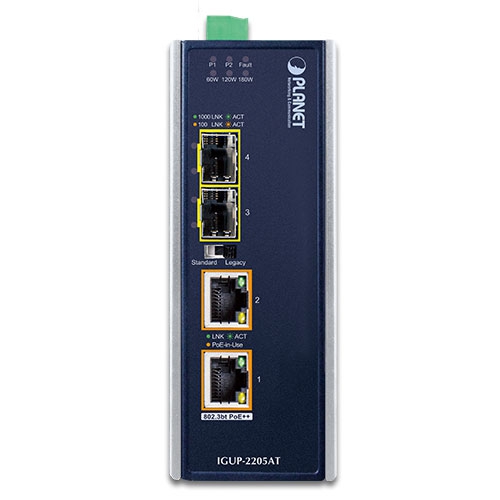

Industrial 2-Port 100/1000X SFP to 2-Port 10/100/1000T 802.3bt PoE++ Media Converter

Adicionar à cotação

O Planet IGUP-2205AT faz parte dos grupos dos PoE, Ethernet Industrial, Conversor de Mídia PoE, Sistema PoE para Painel Solar, Dispositivos Alimentados por PoE, PoE Industrial, Conversor de Mídia Industrial, PoE Industrial, Sistema PoE para Painel Solar, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, DIN-rail Gigabit PoE Converter, 802.3bt PoE++ Media Converter, Solar and Battery Powered PoE Media Converter e dispõe dos seguintes recursos:

40 degree ~75 degree
10M 100M 1000M
SFP
Redundant Power
IP Code 30

Hardware Specifications
Copper Port	2 x 10/100/1000BASE-T
SFP Slot	2 x 1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP
Flow Control	Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size	9K
LED Indicators	System: Power 1 (Green), Power 2 (Green), Fault Alarm (Red) PoE Usage: (Amber) Fiber: 100BASE-X: LNK/ACT (Amber) 1000BASE-X: LINK/ACT (Green) TP: 10/100/1000BASE-T: LNK/ACT (Green) PoE: PoE-in-Use (Amber)
Dimensions (W x D x H)	55 x 85 x 135 mm
Weight	665 g

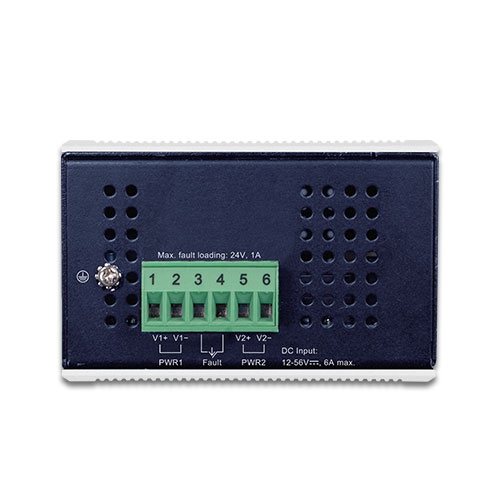

Power Requirements	DC 12~56V, supports reverse polarity protection
Power Consumption	System ON without loading DC 12V: 4.56W DC 48V: 5.28W Full loading with PoE DC 12V: 67.44W DC 48V: 205W
DIP Switch	Standard/Legacy mode
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount ear
ESD Protection	6KV DC
Cables	10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber
Power Over Ethernet
PoE Standard	IEEE 802.3bt Power over Ethernet Plus Plus
PoE Power Output	54V DC: 90 watts max.
PoE Power Supply Type	End-span / Mid-span
Power Pin Assignment	End-span: 1/2 (+), 3/6 (-) Mid-span: 4/5 (+), 7/8 (-)
PoE Power Budget	180 watts
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Protocols and Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3az Energy Efficient Ethernet (EEE)
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~85 degrees C
Humidity	Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)
