IGTP-815AT

Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter

Adicionar à cotação

O Planet IGTP-815AT faz parte dos grupos dos PoE, Ethernet Industrial, Conversor de Mídia PoE, PoE Industrial, Conversor de Mídia Industrial, PoE Industrial, Acessórios, 802.3at PoE+ Media Converter, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, DIN-rail Gigabit Ethernet Converter, DIN-rail Gigabit PoE Converter, Media Converters e dispõe dos seguintes recursos:

  • compact Size
  • PoE+
  • 802.3at 30 Watts
  • 40 degree ~75 degree
  • IP Code 30
IGTP-815ATIGTP-815AT
Hardware Specifications
Copper Port 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance.
Auto-negotiation, auto MDI/MDI-X with PoE injector function
SFP Slot 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
Flow Control Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size 9K

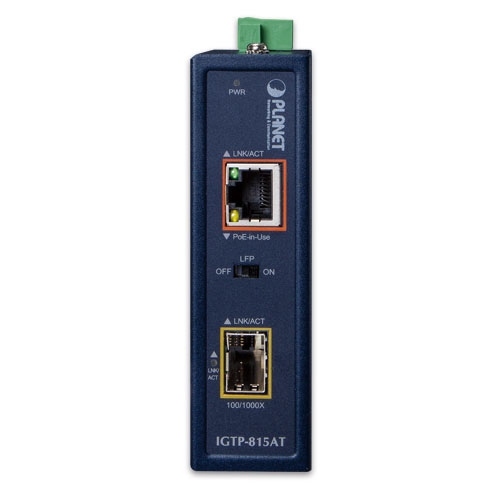

LED System: Power (Green)
Fiber 100/1000BASE-X: LNK/ACT (Green)
TP 10/100/1000BASE-T: LNK/ACT(Green)
PoE: Power-in-use (Amber)
Dimensions (W x D x H) 30 x 70 x 104 mm
Weight 251g

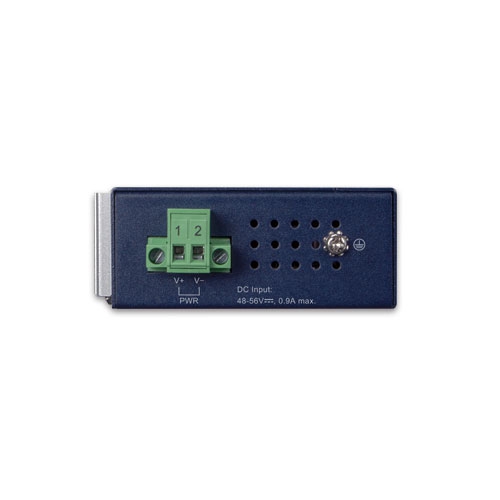

Power Requirements DC 48~56V, supports reverse polarity protection
(>51V DC for PoE+ output recommended)
Power Consumption System ON without loading
　DC 48V: 0.96W
　DC 56V: 1.12W
Full loading with PoE
　DC 48V:36.48W(PoE:30W)
　DC 56V:43.12W(PoE 36W)
DIP Switch Link Fault Passthrough Enable/Disable
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount ear
ESD Protection 6KV DC
Cables 10/100/1000BASE-T:
　2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)
　EIA / TIA-568 100-ohm STP (maximum 100 meters)
100BASE-FX/1000BASE-SX/LX:
　Multi-mode: 50/125μm or 62.5/125μm optical fiber
　Single-mode: 9/125μm optical fiber
Power Over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus
PoE Power Output 48~56V DC: 36 watts max.
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 36 watts
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Protocols and Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
Datasheet
Date Version Description Download
2019-06-14 1.0 IGTP-815AT
