IGS-820TF

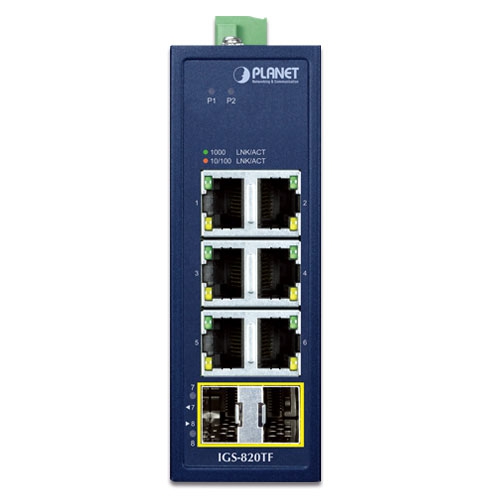

Compact Industrial 6-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch

Adicionar à cotação

O Planet IGS-820TF faz parte dos grupos dos LAN Switches, Ethernet Industrial, Switch Industrial Não Gerenciável, Gigabit Ethernet Switch e dispõe dos seguintes recursos:

compact Size
802.3az EEE
Power Redundant DC AC
IP Code 30
40 degree ~75 degree

Hardware Specifications
Copper Ports	6 x 10/100/1000BASE-T RJ45 TP auto-MDI/MDI-X, auto negotiation ports (Ports 1 to 6)
SFP Slots	2 x 1000BASE-X SFP interfaces (Ports 7 to 8) Backward compatible with 100BASE-FX transceiver

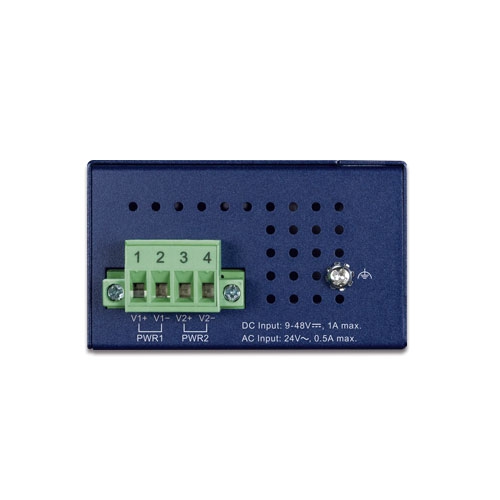

Connector	Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2
ESD Protection	6KV
EFT Protection	6KV
Power Requirements	9~48V DC redundant power with polarity reverse protection function, 24V AC power support
Power Consumption / Dissipation	System on: Max. 1.44 watts/4.9BTU Ethernet Full Loading: Max. 2.88 watts/9.8BTU
Installation	DIN-rail kit and wall-mount ear
Enclosure	IP30 metal case
Dimensions (W x D x H)	41 x 70 x 115 mm
Weight	345g
LED	2 x LED for system and power: 　Green: Power 1 　Green: Power 2 2 x LED for each port: 　10/100/1000T RJ45 Ports: 　　Green: 1000Mbps LNK/ACT 　　Amber:10/100Mbps LNK/ACT 　100/1000BASE-X SFP Interfaces: 　　Green: 1000Mbps LNK/ACT 　　Amber: 100Mbps LNK/ACT
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	4K entries
Buffer Memory	4M bits on-chip buffer memory
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Switch Fabric	16Gbps
Throughput (packet per second)	11.9Mpps@64bytes
Jumbo Frame	9Kbytes
Network Cables	10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters)
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~90%, Storage: 5~90% (non-condensing)

Datasheet

Date	Version	Description	Download
2025-01-17	1.0	IGS-820TF

User's Manual

Date	Version	Description	Download
2025-01-10	1.0	Initial release.
