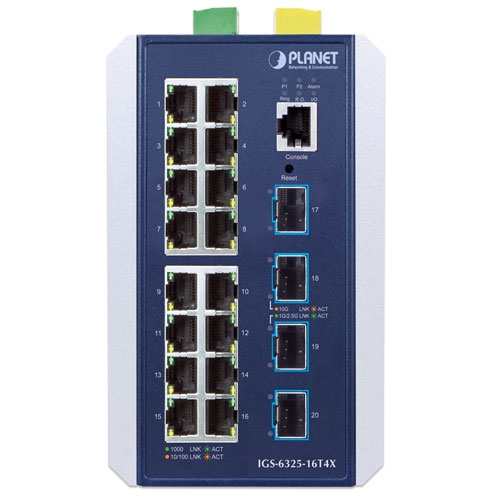

IGS-6325-16T4X

Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch

Adicionar à cotação

O Planet IGS-6325-16T4X faz parte dos grupos dos Ethernet Industrial, Switch Industrial Gerenciável, L3 Ring Managed Ethernet Switch e dispõe dos seguintes recursos:

  • 10Gbps SFP+
  • L3 OSPF Routing
  • L3 Static Routing
  • RING
  • Modbus TCP
  • di do
[item_en][item_en]
Hardware Specifications
Copper Ports 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports -
SFP+ Ports 4 10GBASE-SR/LR SFP+ slot interfaces (Port-17 to Port-20)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
SDRAM 512Mbytes
Flash Memory 64Mbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI) 2 digital input:
　Level 0: -24~2.1V (±0.1V)
　Level 1: 2.1~24V (±0.1V)
　Input load to 24V DC, 10mA max.
Digital Output (DO) 2 digital output:
　Open collector to 24VDC, 100mA
Installation DIN-rail or wall mounting
Enclosure IP30 aluminum case
Dimensions (W x D x H) 96 x 107 x 152 mm
Weight 1,503 g
Power Requirements DC 9~48V, 3.3A max.
AC 24V, 2A max.
Power Consumption DC input:
　Max. 14.4 watts/49.13 BTU (system on)
　Max. 24 watts/81.89 BTU (Full loading)
AC 24V input:
　Max. 13.5 watts/46.06 BTU (system on)
　Max. 23 watts/78.48 BTU (Full loading)
ESD Protection 6KV DC
Surge Protection 4KV DC
LED Indicators System:
　Power 1 (Green), Power 2 (Green)
　Fault Alarm (Red)
　Ring (Green), Ring Owner (Green)
　DIDO (Red)
Per 10/100/1000T RJ45 Port:
　1000Mbps LNK/ACT (Green)
　10/100Mbps LNK/ACT (Amber)
Per SFP+ Port:
　1G/2.5G LNK/ACT (Green)
　10Gbps LNK/ACT (Amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 112Gbps/non-blocking
Throughput 83.3Mbps@64Bytes
Address Table 32K entries, automatic source address learning and aging
Shared Data Buffer 32Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Max. 4K H/W routing table entries
Routing Protocols IPv4 RIPv1/v2 for dynamic routing
IPv4 OSPFv2 for dynamic routing
IPv4 hardware static routing
IPv6 OSPFv3 for dynamic routing
IPv6 hardware static routing
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
RMirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions
VLAN IEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN registration)
GVRP (GARP VLAN Registration Protocol)
Up to 4K VLAN groups, out of 4096 VLAN IDs
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
BPDU Guard
Link Aggregation IEEE 802.3ad LACP/static trunk
10 trunk groups with 16 ports per trunk group
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Ring Supports ERPS, and complies with ITU-T G.8032
Supports major ring and sub-ring
Recovery time < 10ms @ 3 units
Recovery time < 50ms @ 16 units
Synchronization IEEE 1588v2 PTP(Precision Time Protocol)
　Peer-to-peer transparent clock
　End-to-end transparent clock
QoS Traffic classification based, strict priority and WRR
8-level priority for switching:
　Port number
　802.1p priority
　802.1Q VLAN tag
　DSCP/ToS field in IP packet
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
　MAC Address
　IP Address
　Ethertype
　Protocol Type
　VLAN ID
　DSCP
　802.1p Priority
Up to 512 entries
Security Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewerPro app
Event Management Remote syslog
System log
SMTP
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 1350 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1058 RIP v1
RFC 2453 RIP v2
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 2740 OSPF v3
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Datasheet
Date Version Description Download
2023-11-03 1.5 IGS-6325-16T4X
Firmware
Date Version Description Download
2024-04-18 1.2112b240326 Update -
Supports PSTI Act to enhance product security.
FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act)
*Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update.
Quick Guide
Date Version Description Download
2024-05-24 1.5 Release for PSTI version.
2023-10-11 1.4 Initial release.
User's Manual
Date Version Description Download
2023-09-15 1.6 Initial release.
