IGS-604HPT-RJ

IGS-604HPT-RJ

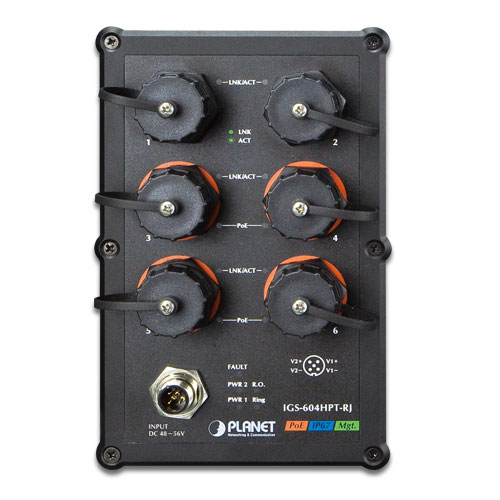

Industrial IP67-rated 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Managed Ethernet Switch (-40~75 degrees C)

O Planet IGS-604HPT-RJ faz parte dos grupos dos Ethernet Industrial, PoE Industrial, Switch Industrial Gerenciável, Industrial Ethernet - Norma EN50155, PoE Industrial, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, DIN-rail L2+ Ring Managed Gigabit PoE Switch e dispõe dos seguintes recursos:

  • waterproof ip-67
  • -40-degree-~75-degree
  • 30W Per-Port
  • 802.3at 802.3af End-span
  • RING
  • IPv6-Management
Hardware Specifications

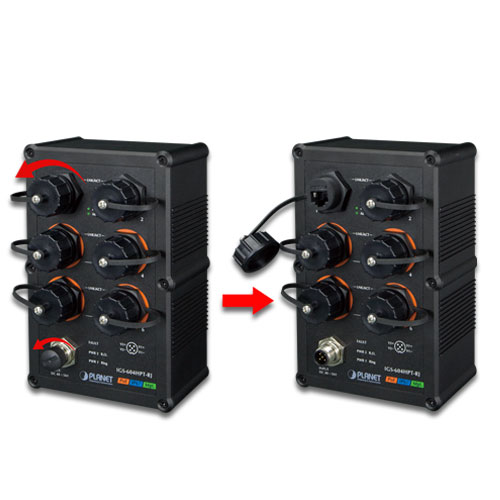

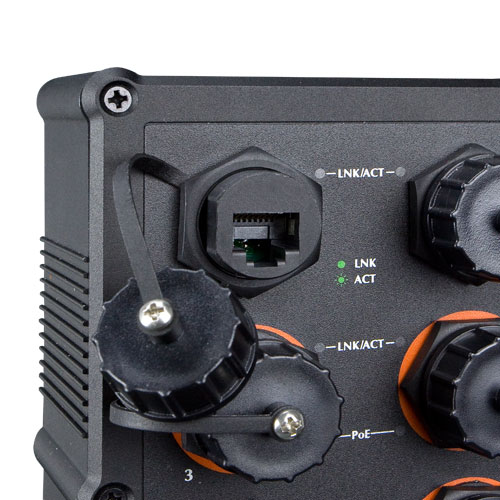

Copper Ports 6 10/100/1000BASE-T waterproof and dustproof RJ45 auto-MDI/MDI-X ports
PoE Injector Port 4 ports with 802.3at/af PoE injector function (Port-3 to Port-6)
Switch Architecture Store-and-Forward
Switch Fabric 12Gbps/non-blocking
Throughput 8.9Mpps@64bytes
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 103 x 68.3 x 163 mm
Weight 1069g
LED System:
DC1 (Green), DC2 (Green), Fault (Red)
Ring (Green), R.O. (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 2):
LNK/ACT (Green)
10/100/1000T RJ45 Interfaces (Port 3 to Port 6):
LNK/ACT (Green)
PoE-in-Use (Orange)
Power Consumption Max. 160 watts/545.9 BTU
Power Requirements Dual 48~56V DC (>53V DC for PoE+ output recommended)
EFT Protection 6KV DC
ESD Protection 6KV DC
PoE Standard IEEE 802.3af/802.3at PoE/PSE
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard
- Per port 48V~53V DC (depending on the power supply), max. 15.4 watts

IEEE 802.3at Standard
- Per port 53V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 144 watts max. (depending on power input)
PoE Ability PD @ 7 watts: 4 units
PD @ 15.4 watts: 4 units
PD @ 30.8 watts: 4 units
Layer 2 Management Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
VLAN 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
3 groups with 2 port per trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoS Traffic classification based, Strict priority and WRR
8-level priority for switching:
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/ToS field in IP packet
IGMP Snooping IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing
IPv6 software static routing
Management
Basic Management Interfaces Telnet/Web browser/SNMP v1, v2c
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Power over Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
