IGS-5225-8P2S2X

IGS-5225-8P2S2X

Industrial L3 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP + 2-Port 10G SFP+ Managed Ethernet Switch

O Planet IGS-5225-8P2S2X faz parte dos grupos dos Ethernet Industrial, PoE Industrial, Switch Industrial Gerenciável, PoE Industrial, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, DIN-rail L2+ Ring Managed Gigabit PoE Switch, L2+ Ring Managed Gigabit Ethernet Switch, DIN-rail L3 Ring Managed Gigabit PoE Switch, L3 Ring Managed Ethernet Switch e dispõe dos seguintes recursos:

  • L3-Static-Routing
  • 10Gbps SFP+
  • PoE+
  • Alive-Check
  • IPv6-Management
  • -40-degree-~75-degree
Hardware Specifications

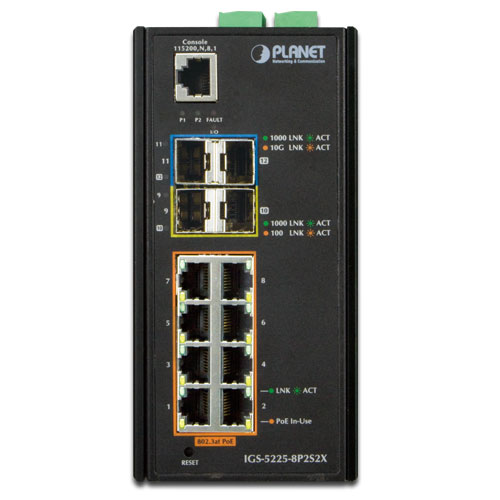

Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX SFP
SFP+ Slots 2 10GbBASE-SR/LR SFP+ interfaces (Port-11 and Port-12)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
PoE Injector Port 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 60Gbps/non-blocking
Throughput (packet per second) 44.642Mpps@ 64Bytes packet
Address Table 16K entries, automatic source address learning and aging
Shared Data Buffer 32Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 10Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN rail kit and wall-mount kit

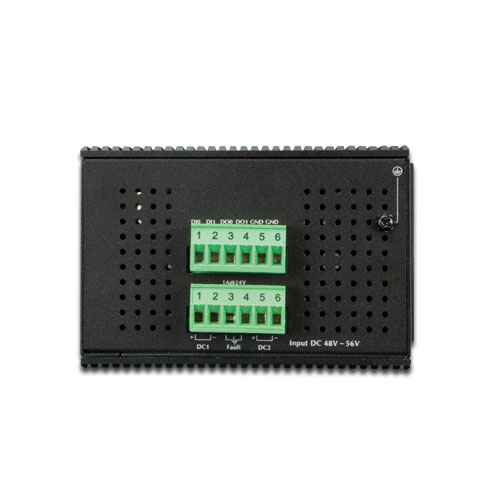

Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
DI/DO ■ 2 Digital Input (DI):
 Level 0: -24V~2.1V (±0.1V)
 Level 1: 2.1V~24V (±0.1V)
 Input load to 24V DC, 10mA max.
■ 2 Digital Output (DO):
 Open collector to 24V DC, 100mA max.
LED Indicator System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm ( Red )
DIDO ( Red )
Per 10/100/1000T RJ45 PoE+ Ports:
PoE-in-Use (Orange)
LNK/ACT (Green)
Per SFP Interface:
100 LNK/ACT (Orange)
1000 LNK/ACT (Green)
Per SFP+ Interface:
10G LNK/ACT (Orange)
1000 LNK/ACT (Green)
Dimensions (W x D x H) 72 x 107x 152 mm
Weight 1684g
Power Requirements Dual 48~56V DC (>51V DC for PoE+ output recommended)
Power Consumption Max. 11.1 watts/37.87BTU (Power on without any connection)
Max. 306 watts/1043.46BTU (Full loading with PoE function)
Power Over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget Dual power input: 240W maximum (depending on power input)
Max. number of Class 2 PDs 8
Max. number of Class 3 PDs 8
Max. number of Class 4 PDs 8
Layer 2 Function
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSH, SSL, SNMP v3
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX/RX/both
1 to 1 monitor
VLAN 802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 6 trunk groups with 4 ports per trunk group
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
IGMP Snooping IGMP (v1/v2/V3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 123 entries
Bandwidth Control Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
SNMP MIBs RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Layer 3 Function
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
