IGS-504PT

Compact Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch (-40~75 degrees C)

Adicionar à cotação

O Planet IGS-504PT faz parte dos grupos dos PoE, Ethernet Industrial, PoE Industrial, Switch Industrial Não Gerenciável, PoE Industrial, Rack-mount L2+ Ring Managed Gigabit PoE Switch, DIN-rail L2+ Ring Managed Ultra PoE Switch, DIN-rail Unmanaged Gigabit PoE Switch e dispõe dos seguintes recursos:

  • PoE+
  • 10M 100M 1000M
  • 40 degree ~75 degree
  • DIN Rail
  • 802.3at 802.3af End span
  • compact Size
IGS-504PTIGS-504PT
Hardware Specifications

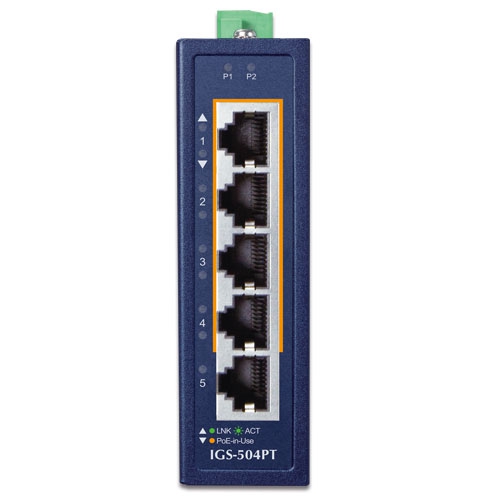

Copper Ports 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
PoE Budget 120W maximum@75 degrees C

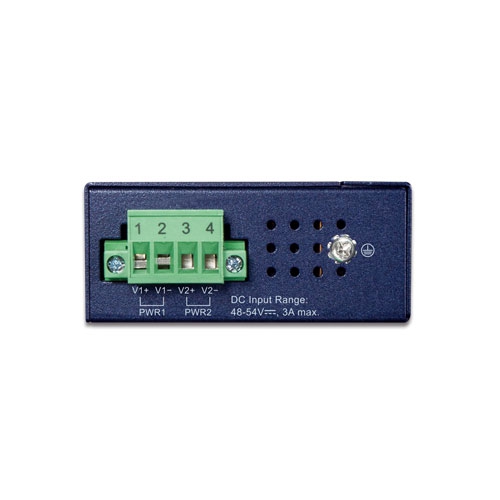

Connector Removable 4-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for Power 2
Power Requirements 48~54V DC, 3A (max.)
Redundant power with reverse polarity protection
Power Consumption DC 48V:
Max. 0.48 watts/1.63BTU (System)
Max. 62.88 watts/214.5BTU ( Full Loading)
DC 54V:
Max. 0.54 watts/1.84BTU (System)
Max. 123.12 watts/420BTU ( Full Loading)
Dimensions (W x D x H) 30 x 70 x 104 mm
Weight 260g
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
ESD Protection 6KV
Switch Specifications
Switch Architecture Store-and-Forward
Switch Fabric 10Gbps
Throughput (packet per second) 7.4Mpps@64bytes
Address Table 2K entries
Jumbo Frame 9Kbytes
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
Backward compatible with IEEE 802.3af Power over Ethernet/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Output Per port 48-54V DC
Max. 30 watts@54V DC
Max. 15 watts@48V DC
PoE Power Budget 120 watts
Max. Number of Class 4 PDs 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
IEEE 802.1p Class of Service
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
Datasheet
Date Version Description Download
2021-05-21 1.0 IGS-504PT
