IGS-500T-E

Industrial Ethernet,DIN-rail Unmanaged Ethernet Switches,Gigabit Ethernet Switch,Compact Industrial 5-Port 10/100/1000T Ethernet Switch,IGS-500T-E

Adicionar à cotação

O Planet IGS-500T-E faz parte dos grupos dos LAN Switches, Ethernet Industrial, Switch Industrial Não Gerenciável, Gigabit Ethernet Switch e dispõe dos seguintes recursos:

compact Size
802.3az EEE
Redundant Power
IP Code 40
40 degree ~75 degree

Hardware Specifications

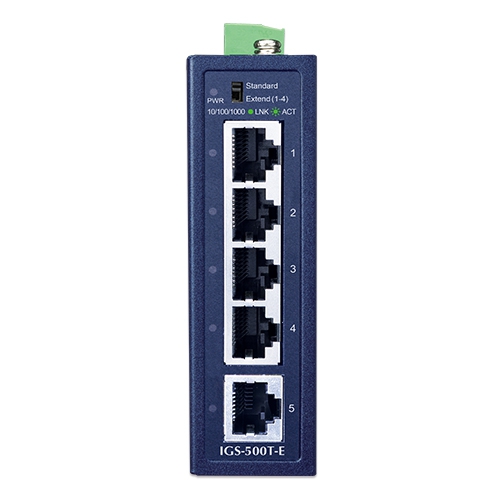

Copper Ports	5 x 10/100/1000BASE-T RJ45 TP auto-MDI/MDI-X, auto negotiation

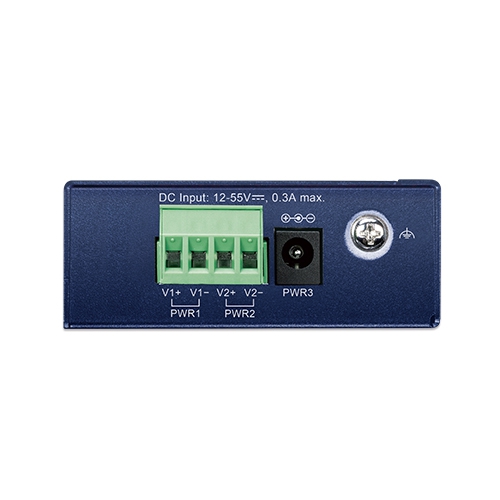

Connector	Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 DC Jack Connector
DIP Switch	Standard Mode: In Standard Mode, all interfaces can communicate with each other, supporting a transmission distance of up to 100 meters with an adaptive transmission rate of 10/100/1000Mbps. Extend Mode: In Link Extension Mode, data transmission on ports 1 to 4 can reach up to 250 meters, with a reduced transmission speed of 10Mbps to ensure signal stability over long distances.
LED	1 x LED for system and power: 　Green: DC Power 1 1 x LED for each copper port : 　Green: 10/100/1000Mbps LNK/ACT
Power Requirements	12~55V DC redundant power with revise polarity protection
Power Consumption / Dissipation	Max. 0.55 watts/1.88 BTU (Power on without any connection) Max. 1.65 watts/5.63 BTU (Ethernet full loading)
Dimensions (W x D x H)	30.2 x 76.1 x 100 mm
Weight	266g
Enclosure	IP40 metal case
Installation	DIN-rail kit and wall-mount ear (Side wall mount is an optional accessory)
ESD Protection	6KV
EFT Protection	6KV
Network Cables	10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters)
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Switch Fabric	10Gbps
Throughput (packet per second)	0.744Mpps@64bytes
Address Table	2K entries
Shared Data Buffer	3M bits
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~85 degrees C
Humidity	Operating: 10~90% Storage: 5~95% (non-condensing)

Datasheet

Date	Version	Description	Download
2025-07-11	1.0	IGS-500T-E

User's Manual

Date	Version	Description	Download
2025-05-29	1.0	Initial release.
