IGS-4215-8UP4X

Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch

Adicionar à cotação

O Planet IGS-4215-8UP4X faz parte dos grupos dos PoE, Ethernet Industrial, PoE Industrial, Switch Industrial Gerenciável, PoE Industrial, DIN-rail L2/L4 Managed Gigabit PoE Switch, L2/L4 Managed Gigabit Ethernet Switch e dispõe dos seguintes recursos:

  • 10Gbps SFP+
  • di do
  • RING
  • IPv6/IPv4 ACLQoS
[item_en][item_en]
Hardware Specifications
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8)
PoE Injector Port 8 ports with 802.3bt PoE++ injector function (Ports 1 to 8)
SFP Ports 4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4)
Backward compatible with 1G/2.5GBASE-SX/LX/BX SFP transceivers
Console 1 x USB Type C to RS232 serial port (115200,8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default

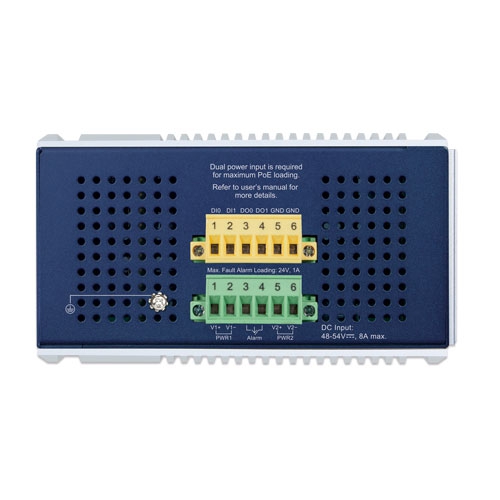

Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC
DI, DO 2 digital input (DI)
　Level 0: -24V~2.1V (±0.1V)
　Level 1: 2.1V~24V (±0.1V)
　Input load to 24V DC, 10mA max.

2 digital output (DO)
　Open collector to 24V DC, 100mA max.
Power Requirements 48~54V DC, 8A (max.)
Power Consumption/ Dissipation Max. 10.2 watts / 34.8BTU (system on)
Max. 398.6 watts/1360.1BTU (Full loading)
Dimensions (W x D x H) 76 x 135 x 152 mm
Weight 1361g
Enclosure IP30 aluminum case
Installation DIN-rail kit and wall-mount ear
ESD Protection Contact Discharge 6KV DC
Air Discharge 8KV DC

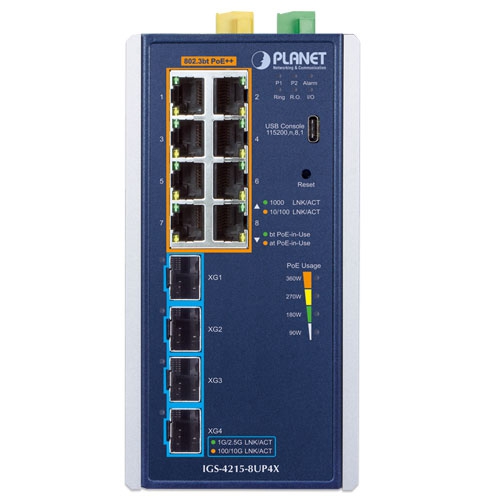

LED System:
　Power 1 (Green)
　Power 2 (Green)
　Alarm (Red)
　Ring (Green)
　R.O.(Green)
　I/O (Red)
Per 10/100/1000T RJ45 PoE++ Ports:
　UP：1000 LNK/ACT (Green)
　 　　 10/100 LNK/ACT (Amber)
　Down：802.3bt (Green)
　　　　 802.3at (Amber)
PoE Usage:
　90/180/270/360W (Amber)
Per 10G SFP Interface:
　1G/2.5G LNK/ACT (Green)
　100/10G LNK/ACT (Amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 96Gbps/non-blocking
Switch Throughput@64 bytes 71.43Mpps @64 bytes
MAC Address Table 16K entries
Shared Data Buffer 12Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 12 Kbytes
Power over Ethernet
PoE Standard IEEE 802.3bt PoE++ Type-4
PoE Power Supply Type End-span
Mid-span
BT
Power Pin Assignment 802.3bt PoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
802.3at PoE: End-span: 1/2(-), 3/6(+)
802.3at PoE: Mid-span: 4/5(+), 7/8(-)
PoE Power Output Per port 48V ~ 54VDC
　802.3bt Type-4 mode: maximum 95 watts
　802.3bt Type-3 mode: maximum 60 watts
　End-span mode: maximum 36 watts
　Mid-span mode: maximum 36 watts
　Force mode: maximum 95 watts
PoE Power Budget Single power input: 240W maximum (depending on power input)
Dual power input: 360W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V.
Max. Number of 90W 802.3bt Type 4 PDs 4
Max. Number of 60W 802.3bt Type 3 PDs 6
Max. Number of 30W 802.3at Type 2 PDs 8
PoE Management Functions
PoE Management PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension
Enhanced PoE Mode Standard/Legacy/Force
Active PoE Device Live Detection Yes
PoE Power Recycling Yes, daily or predefined schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. up to 250 meters
Layer 2 Functions
Port Mirroring TX/RX/Both
Many-to-1 monitor
Up to 4 sessions
VLAN 802.1Q tagged VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 8 groups with 8 ports per trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IPv4 IGMP snooping v2, v3
IGMP querier
Up to 256 multicast groups
MLD Snooping IPv6 MLD snooping v2, v3, up to 256 multicast groups
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
QoS 8 mapping IDs to 8 level priority queues
　Port number
　802.1p priority
　DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms
Security Functions
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries
Port Security Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC Security IP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries
Enhanced Security DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management Interfaces USB to RS232 Console
Web browser
Telnet
SNMP v1, v2c
Secure Management Interfaces SSHv2, TLSv1.2, SNMP v3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer/CloudViewerPro
Event Management Remote/Local Syslog
System log
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1ab LLDP
IEEE 802.3az for Energy-Efficient Ethernet
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring
Environment
Operating Temperature -40 ~ 75 °C
Storage Temperature -40 ~ 85 °C
Humidity 5 ~ 95% (non-condensing)
