IGS-1000-8T4X

Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch

Adicionar à cotação

O Planet IGS-1000-8T4X faz parte dos grupos dos Ethernet Industrial, Switch Industrial Não Gerenciável, Gigabit Ethernet Switch e dispõe dos seguintes recursos:

10Gbps SFP+
plug play
IP Code 30
DIN Rail

Hardware Specifications
Copper Ports	8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
SFP Slots	4 10GBASE-X SFP+ interfaces(Ports 9 to 12) Backward compatible with 1000BASE-X SFP and 2500BASE-X SFP

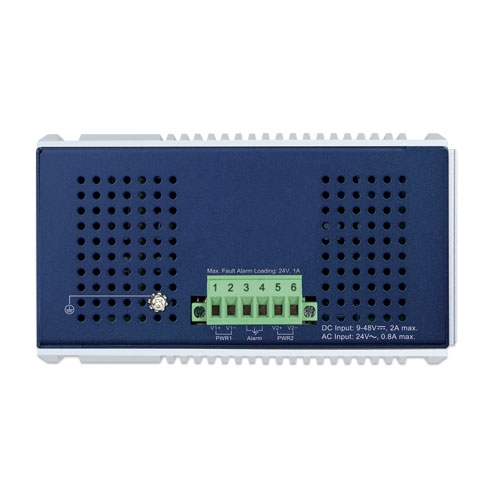

Connector	Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2
Power Requirements	9~48V DC, 4A max. / 24V AC Redundant power with reverse polarity protection
Power Consumption	Max. 14.73 watts/50.2BTU
Dimensions (W x D x H)	76 x 135 x 152 mm
Weight	1211g
Enclosure	IP30 aluminum case
Installation	DIN-rail kit and wall-mount kit
ESD Protection	6KV

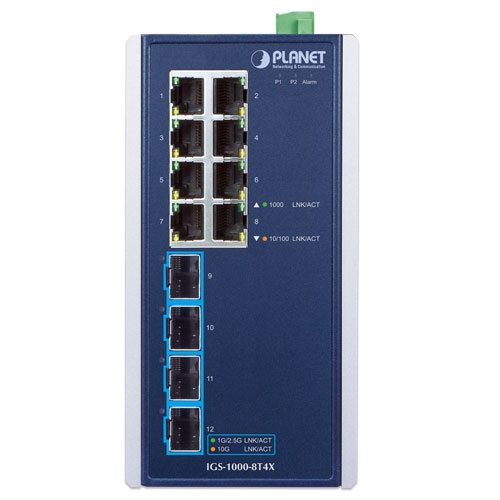

LED Indicators	System: 　P1, P2 (Green), Alarm (Red) 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 8): 　1000Mbps LNK/ACT (Green) 　10/100Mbps LNK/ACT (Amber) 1G/2.5G/10Gbps SFP+ Interfaces (Port 9 to Port 12): 　1G/2.5G LNK/ACT (Green) 　10G LNK/ACT (Amber)
Switch Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	96Gbps
Throughput (packet per second)	71.43Mpps@64bytes
Address Table	16K entries
Buffer Memory	12M bits on-chip buffer memory
Jumbo Frame	12Kbytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.1p Class of Service
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)

Datasheet

Date	Version	Description	Download
2024-01-26	1.0	IGS-1000-8T4X

User's Manual

Date	Version	Description	Download
2023-12-08	1.0	Initial release.
